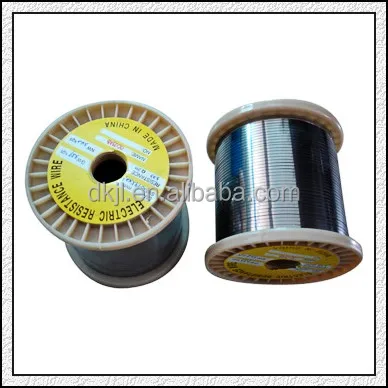

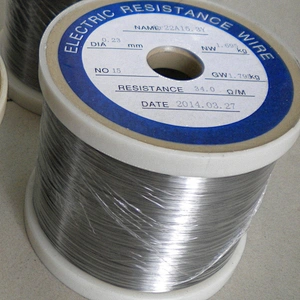

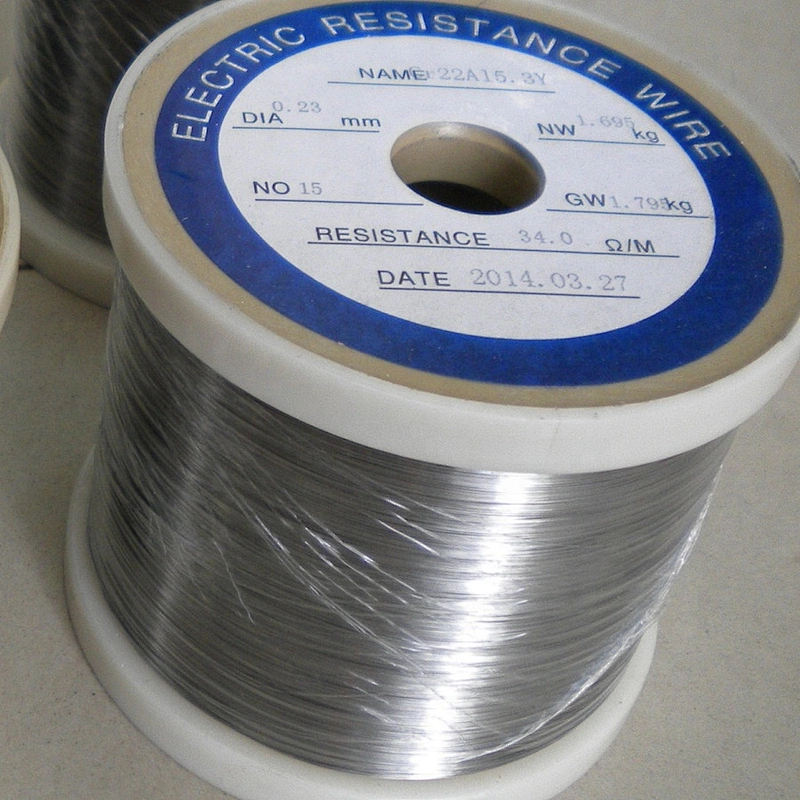

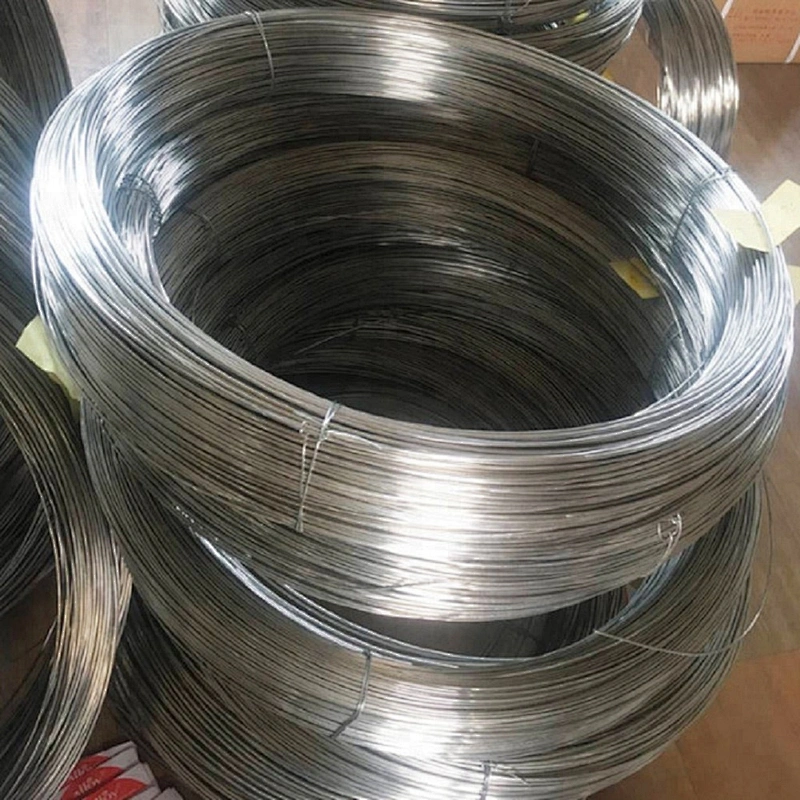

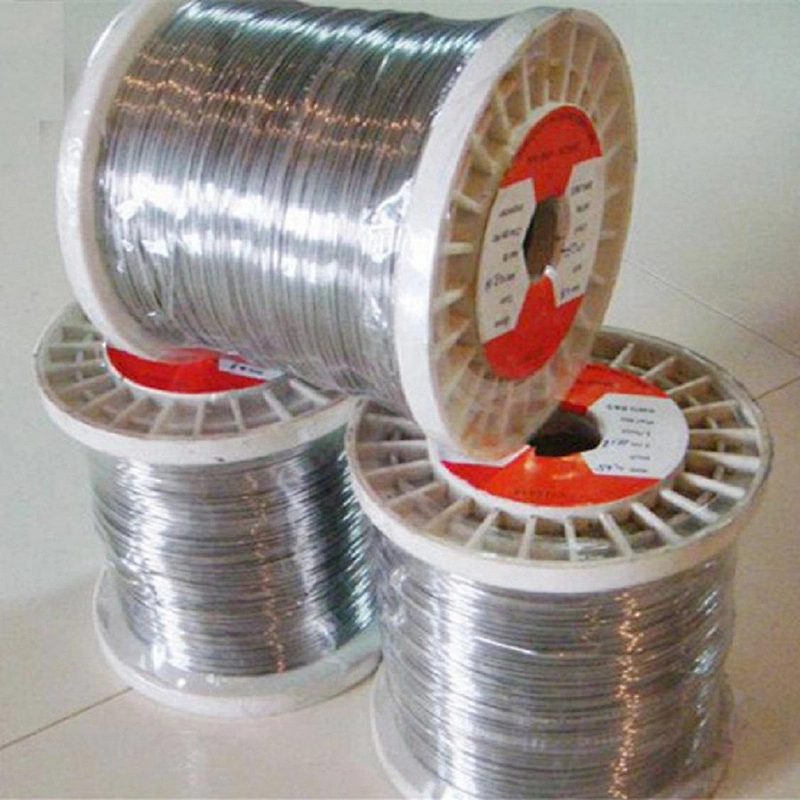

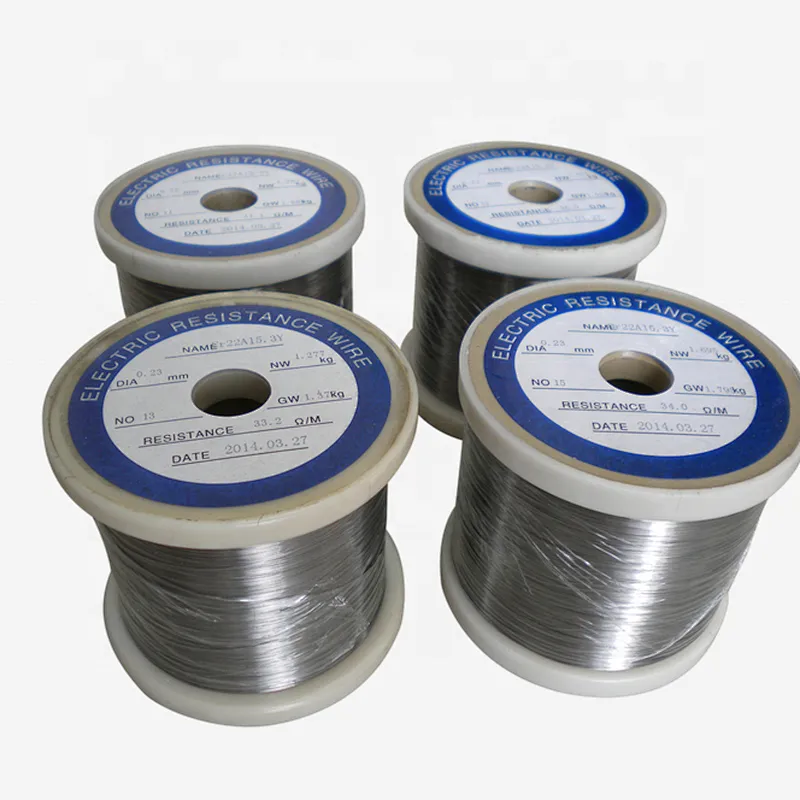

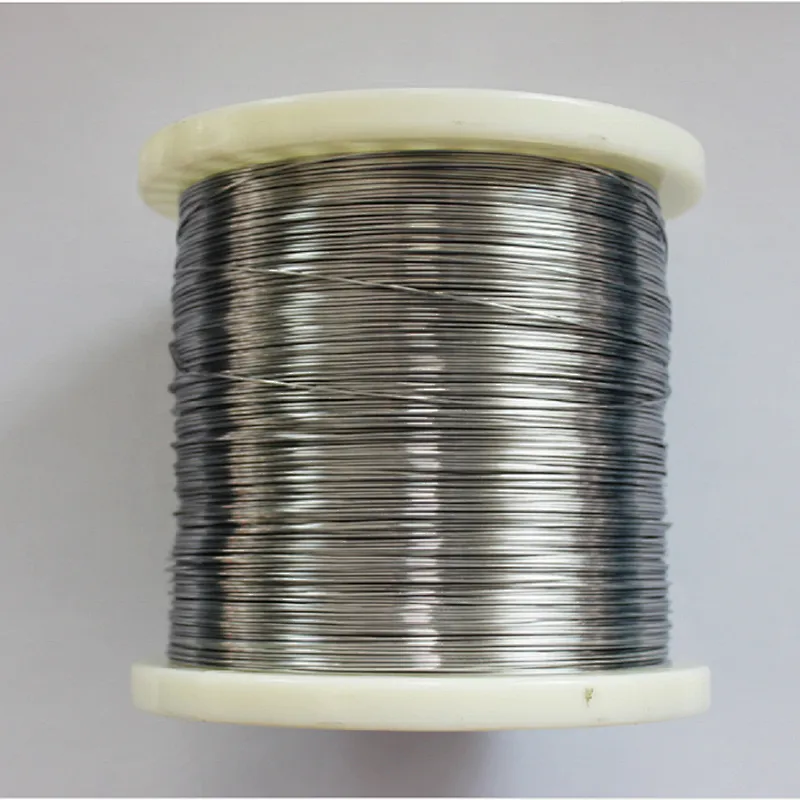

2mm Cr20Ni80 Nickel Chrome Electric Heating Element Flat Resistance Wire
Chemical composition %
Highest service temperature °C
Melting point °C
Specific heat J/g.°C
Thermal conductivity KJ/m.h.°C
Coefficient of linear extensibility α×10-6/°C
wires: dia 0.06-10mm Ribbons:0.05*0.2-2.0*6.0mm
Ribbon (flat wire)
Thickness: 0.023-0.8 mm (0.0009-0.031 inch)
Width: 0.038-4 mm (0.0015-0.157 inch)
Width/thickness ratio max 60, depending on alloy and tolerance
Other sizes are available on request.
Resistance electric heating wire has strong antioxidant properties, but a variety of gases in furnaces such as air, carbon, sulfur, hydrogen and nitrogen atmosphere, still have a certain impact on it.
Although these heating wires all have had antioxidant treatment, the transportation, winding, installation and other process will cause damage to a certain extent and reduce its service life.
In order to extend the service life, customers need to do pre oxidation treatment before using.This methos is to heat alloy elements with have installed completely in the dry air to the temperature (lower 100-200C than its maximum using temperature), heat preservation for 5 to 10 hours, then cooling slowly with furnace.
Features and advantages
1. High using temperature, the maximum using temperature can reach 1400C
2. Low temperature coefficient of resistance
3. Lower thermal expansion coefficient than the Ni-base super-alloys.
4. High electrical resistivity
5. Good corrosion resistance under high temperature, especially under the atmosphere containing sulfides
6. High surface load 7. Creep-resistant
8. Lower raw-material cost, Lower density and cheaper price compared with Nichrome wire.
9. Superior oxidation resistance at 800-1300ºC
10. Long service life
Application of Cr20Ni80 wire
Our products Cr20Ni80 wires are salable and widely used for making heating equipment like industrial furnace, civil heating appliance, various electrical resistors and locomotive braking resistor, infrared equipment, liquefied gas infrared heat-resisting net, different kinds of igniting and radiating electrodes and voltage-regulating resistors for motors and so on in Metallurgical machinery, medical, chemical, ceramics, electronics, electrical appliance, glass and other civil or industrial fields.
Packaging & Shipping
Shipping of Cr20Ni80 wire: By vessel or by train from any Chinese port,
Samples can be delivered by International express
1. Timely response,
Timely response to your inquiry, multiple choice recommendations based on your demand, quickly respond mails and provide solutions.
Sample and trial order is accepted for the quality evaluation.
3. Strict quality control
Arrange production on time and control quality strictly.
4. Shorter delivery time.
Book the earliest vessel or plane to guarantee the delivery time.
5. Professional Services
Provide all the detailed news and pictures from order to delivery;
Offer relative export documents and original certificate if needed;
Warm and considerable after-sale service
DKJL refractories exporting company is one of the most professional suppliers of refractories in China. Our main products are refractory and thermal insulation materials, heating elements, industrial ceramics. They are available in various sizes and shapes. Our products enjoy a good reputation for their excellent quality and service in domestic and international markets.
1. How can I get your prompt quotation for Cr20Ni80 wire?
We can give you reply with quotation quickly if you kindly send the inquiry with following factors: diameter (or thickness and width), brand name (or working temperature), electrical resistance(Resistivity), application and quantity.
2.What's the MOQ of the order? No limit, we can offer the best suggestions and solutions according to your condition.
3. Which payment terms can you accept? T/T,LC,Western Union,moneygram are available for us.
4. After an order is placed, when to deliver? 15-25days after confirming the order.
5. Does your company accept customization? We accept OEM service.
6. How to solve the quality problems? If the products don’t conform to customer’s samples or have quality problems, our company will be responsible to make compensation for it based on enough evidences.
