Model NO.
B-1,B-2,B-5,
Price:
USD 0.40-0.40 / ton
Delivery:
FOB
Minimum order quantity:
1 ton
Supply Ability:
2000 ton / Month
Country of Origin:
any port of china
Quantity:
  • Place of Origin:CN;SHN
  • Shape:Brick
  • Material:Diatomite
  • Refractoriness (Degree):1770°< Refractoriness< 2000°
  • SiO2 Content (%):68.75%
  • Al2O3 Content (%):19.62%
  • MgO Content (%):3.54%
  • CaO Content (%):>0.01
  • CrO Content (%):0.1~0.3%
  • SiC Content (%):0.1%min
  • Model Number:B-1,B-2,B-5,
  • Brand Name:DKJL

B series different types of Insulation fire brick

Product Description



They are ideal thermal insulation material usually used in industrial furnaces and heating pipe.


Our insulation bricks are in accordance with JIS Industrial Standard of JAPAN, have excellent properties as light weight, low ferrous, low shrinkage, atmosphere erosion resistant and so on.




Insulation fire brick Features and advantage:

1. Light weight

2. Low density

3. High strength,good thermal shock resistance

4. Low heat storage, low thermal conductivity

5. Saving energy

6. Precise size

7. Good thermal insulation effect

8. Good quality and low price



Insulation fire brick Application:

It is widely used as a primary hot face refractory lining or as back-up insulation behind other refractory in furnace(such as carbon furnace, cracking furnace, heating furnace for oil refining, roller kiln, tunnel kiln.), flues, refining vessels, heaters, regenerators and similar high temperature industrial equipment.



Insulation fire brickTechnical Specifications





      Items

Testing Temperature(°C)

When reheated with 2% contracting rate

Volume Density

g/cm3

Compression Strength

Mpa

Thermal Conductivity

kcal/mh°C

(350°C)

B

B-1

900

≤0.70

 ≥2.50

≤0.17

B-2

1000

≤0.70

 ≥2.50

≤0.18

B-3

1100

≤0.75

 ≥2.50

≤0.20

B-4

1200

≤0.80

 ≥2.50

≤0.22

B-5

1300

≤0.80

 ≥2.50

≤0.23

B-6

1400

≤0.90

 ≥3.00

≤0.27

B-7

1500

≤1.00

 ≥3.00

≤0.31





common size Insulation fire brick

Straight type

Arch type

Wedge type

L×W×H (mm)

230×114×65

230×114×75

230×114×32

220×110×60

220×110×50

220×110×40

220×110×30

L×W×H/h (mm)

230×114×65/55

230×114×65/45

230×114×65/59

220×110×65/50

220×110×75/65

220×110×60/40

L×W×H/h (mm)

230×114×65/55

230×114×65/45

220×110×75/65

220×110×60/40

Other sizes according to customer requirements

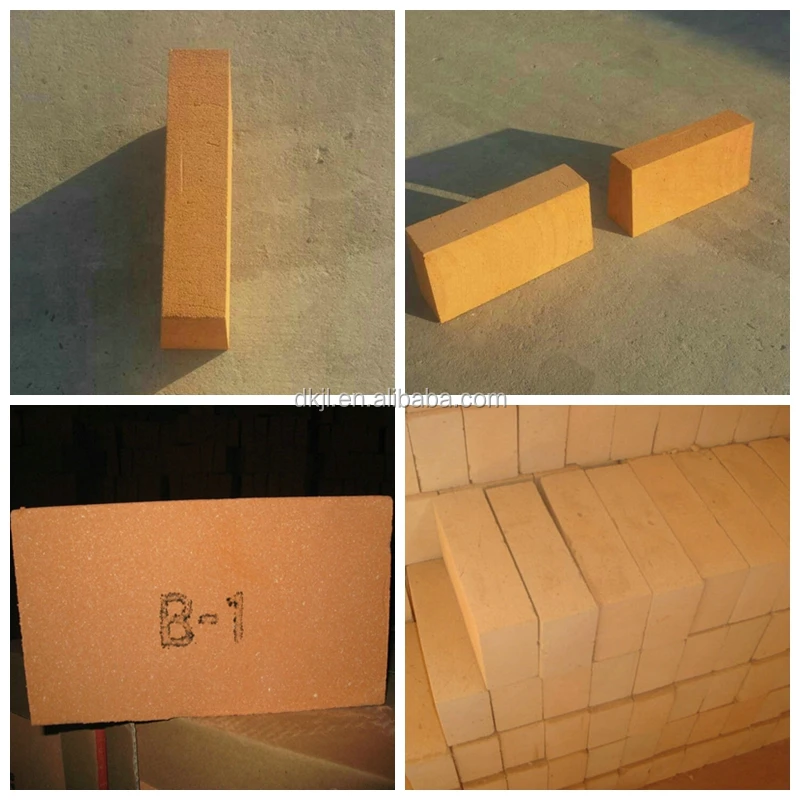

pictures of Insulation fire brick

B1 B2 insulating brick



Packaging & Shipping

 Packing OF Insulation fire brick: Standard export wooden pallet with cardboard.

Shipping of Insulation fire brick: By vessel or by train from any Chinese port, Samples can be delivered by International express.

972461590_969

Package pictures of Insulation fire brick

diatomite brick





Our Services

1.Timely response,

Timely response to your inquiry, multiple choice recommendations based on your demand,quickly respond mails and provide solutions.



2.Free sample

Sample and trial order are accepted for the quality evaluation



3.Strict quality control

Arrange production on time and control quality strictly.



4.Shorter delivery time.

Book the earliest vessel or plane to guarantee the delivery time.



5.Professional Services

Provide all the detailed news and pictures from order to delivery;

Offer relative export documents and original certificate if needed;

Warm and considerable after-sale service

Company Information

 DKJL refractories exporting company is one of the most professional suppliers of refractories in China. Our main products are refractory and thermal insulation materials, heating elements, and industrial ceramics. They are available in various sizes and shapes. Our products enjoy a good reputation for their excellent quality and service in domestic and international markets.



HTB1V07hHpXXXXc.XpXXq6xXFXXXw



FAQ



1.How can I get your prompt quotation for Insulation fire brick?

We can give our offer quickly if you kindly send the inquiry with following factors: bulk density, working temperature, pressure strength, dimension(length*width*thickness), application and quantity.



2.What's the MOQ of trial order ?
No limit,We can offer the best suggestions and solutions according to your requirement.



3.What is the MOQ(minimum order quantity )?

1 pallet.



4.Which payment terms are you accept?
T/T,LC,Western Union,moneygram are available for us.



5.After an order is placed, when to deliver?
15-25days after confirming the order



6.Is your company accept customization?
we accept OEM service.



7.How to solve the quality problems?
If the products are not conform to customer samples or have quality problems, our company will be responsible for it.



8.What is the HS code?

The HS code is 69022000



9. Is there any cost for the sample?

We provide free sample but don't bear the freight
