Model NO.
HA
Price:
USD 10.00-25.00
Delivery:
FOB
Minimum order quantity:
50
Supply Ability:
200 / Month
Country of Origin:
ANY CHINA PORT
Quantity:
  • Application:Heat Insulation
  • Grade:HA (High Aluminum)
  • Place of Origin:CN;SHN
  • Thickness:5-100mm
  • Width:600/1000mm
  • Length:1200/1000/900mm
  • Chemical Composition:Al2O3+SiO2
  • Ultimate Strength (≥ MPa):>0.8
  • Working Temperature:1200C
  • Fiber Diameter:3-5 micron
  • Thermal Conductivity:0.086-0.108
  • Shrinkage (1800℉, 3h):-3(24hours)
  • Model Number:HA
  • Brand Name:DKJL

Industrial 1430 High Alumina fire resistant Ceramic Fiber Board



Product Description



The  fire resistant fiber board are rigid product made of different ceramic fiber bulks with excellent chemical stability,organic bond by wet method and vacuum forming processing which is applied to many kinds of industries.


They are manufactured over a wide range of grades densities and hardness.


 fire resistant fiber board Product Characteristic:

1,Excellent pressure resistance & long service life
2
,Low thermal storage & low thermal conductivity
3
,Non-crisp material ,excellent tenacity
4
,Accurate Dimension  & excellent flatness
5
,easy for cut & convenience construction
6
,Excellent wind corrosion resistance
7
,
Continuous production, well—distributed fibers & excellent stability

 fire resistant fiber board Application Range:
Insulating material of back lining for furnaces in the fields of cement and other building materials, petrochemical, metallurgy, ceramics and glass, heat treatment, non-ferrous metals, high temperature reaction and heating equipment.



 fire resistant fiber board Technical Index:

product code

MYTX-PT-04

MYTX-BZ-04

MYTX-GC-04

MYTX-GL-04

MYTX-DG-04

MYTX-HG-04

heating permanent linear change(%)

950°C×24h≤-4

1000°C×24h≤-4

1100°C×24h≤-4

1200°C×24h≤-4

1250°C×24h≤-4

1350°C×24h≤-4

heat conductivity(An average of 500°C)W/(m.k)





≤0.165







water conten rate (%)





≤-1.5







Organic material content (%)





≤-6







Theoretical volume density ( kg/m3) kg/m3

250-280

280-320

320

320

320

320

Al2O3

≥40

≥43

44-47

51-53

43-45



Al2O3+SiO2

≥95

≥96

≥98

≥99

≥90



Al2O3+SiO2+ZrO2











99

ZrO2









5--7

≥15

Fe2O3

<0.5

<0.5

≤0.3

≤0.3

≤0.3



Na2O+K2O+Fe2O3

<0.9











Product specification (mm)(customized according to customer demand)

Normal length and width, thickness 3mm-100mm

Packing form

carton

Quality and environment system certification

ISO9001-2008, ISO14001-2004

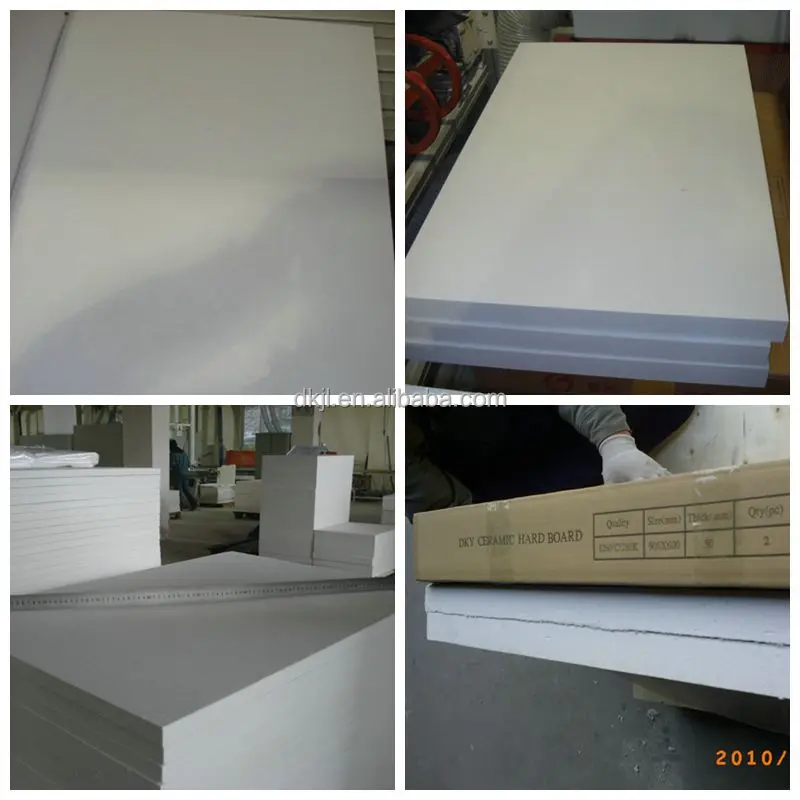

Pictures of  fire resistant fiber board

fire boards

Packaging & Shipping





Packing of  fire resistant fiber board:outer carton and pallet.

Shipping of  fire resistant fiber board: By vessel or by train from any Chinese port, Samples can be delivered by International express.

QQ20180914141652

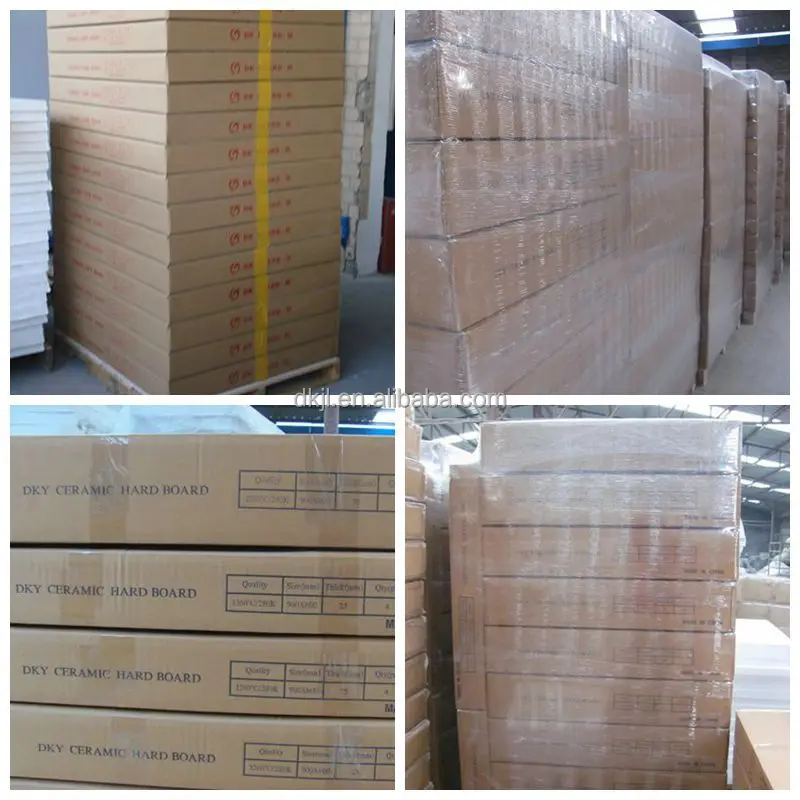

Package pictures of  fire resistant fiber board

fire boards



Our Services



 1.Timely response,

 Timely response to your inquiry, multiple choice recommendations based on your demand,quickly respond mails and provide solutions.



 2.Free sample

 fire resistant fiber board Sample and trial order are accepted for the quality evaluation



 3.Strict quality control

 Arrange production on time and control quality strictly.



4.Shorter delivery time.

 Book the earliest vessel or plane to guarantee the delivery time.



 5.Professional Services

 Provide all the detailed news and pictures from order to delivery;

 Offer relative export documents and original certificate if needed;

 Warm and considerable after-sale service



Company Information



DKJL refractories exporting company is one of the most professional suppliers of refractories in China. Our main products are refractory and thermal insulation materials,heating elements, industrial ceramics and scientific instruments. They are availbale in various sizes and shapes. Our products enjoy a good reputation for  their excellent quality and service in domestic and international markets.


paste-pic-dp_uuid_i9deo



FAQ



1. How can I get your prompt quotation for  fire resistant fiber board?

We can give you reply with quotation quickly if you kindly send the inquiry with following factors: working temperature, maximum working temperature, bulk density, dimension (length*width*thickness), and quantity.



2.What's the MOQ of order?
No limit, we can offer the best suggestions and solutions according to your requirement.



3. Which payment terms can you accept?
T/T,LC,Western Union, MoneyGram are all available for us.



4.After an order is placed, when to deliver?
15-25days after confirming the order.

5. Does your company accept customization?
We accept OEM service.

6. How to solve the quality problems?
If the products don’t conform to customer samples or have quality problems, our company will be responsible to make compensation for it based on enough evidences.



7. What is the HS code?

The HS code is 68061010



8. Is there any cost for the sample?

We provide free sample but don't bear the freight
