Flexible silica aerogel heat insulation felt for oven
Flexible silica aerogel heat insulation felt for oven
Flexible silica aerogel heat insulation felt for oven
Flexible silica aerogel heat insulation felt for oven
Flexible silica aerogel heat insulation felt for oven
Flexible silica aerogel heat insulation felt for oven
Flexible silica aerogel heat insulation felt for oven
Flexible silica aerogel heat insulation felt for oven
Flexible silica aerogel heat insulation felt for oven
Flexible silica aerogel heat insulation felt for oven
Flexible silica aerogel heat insulation felt for oven
Flexible silica aerogel heat insulation felt for oven
Flexible silica aerogel heat insulation felt for oven

Flexible silica aerogel heat insulation felt for oven

Price:
USD 33.00-34.00 / rolls
Delivery:
FOB
Minimum order quantity:
50 rolls
Supply Ability:
20000 rolls / Quarter
Country of Origin:
ANY CHINA PORT
Quantity:
  • Grade:COM (Common)
  • Application:Liners Of Industrial Furnace
  • Density (kg/m³ ):128
  • Place of Origin:CN;SHN
  • Thickness:10-50mm
  • Width:610/1220mm
  • Length:3600/7200/14640mm
  • Chemical Composition:AL2O3+SIO2
  • Ultimate Strength (≥ MPa):0.04
  • Working Temperature:1000-1350
  • Fiber Diameter:3-5um
  • Shrinkage (1800 ℉, 3h):3%(24 Hours)
  • Thermal Conductivity:0.055-0.180(W.k.m.)
  • Brand Name:DKJL

Flexible silica aerogel heat insulation felt for oven

Product Description



Aerogel heat insulation felt for oven features and advantage



1.Excellent chemical stability

2.Excellent heat stability

3.Excellent pull resisting strength

4.Low heat conductivity

5.Low thermal capacity

6.Excellent heat insulation performance



Application of Aerogel heat insulation felt for oven

1.Industry furnace wall lining

2.Back lining material

3.Fire prevention

4.High-temperature tube heat insulation material

5.Module/folding block processing material

6.Filling and sealing material in high temperature environment.

7.Sound-absorbing/high temperature filtration materials.





Aerogel heat insulation feltTechnical Index

product code

MYTX-PT-02

MYTX-BZ-02

MYTX-GC-02

MYTX-GL-02

MYTX-DG-02

MYTX-HG-02

Heating permanent linear change(%)

950°C×24h≤-4

1000°C×24h≤-4

1100°C×24h≤-4

1200°C×24h≤-4

1250°C×24h≤-4

1350°C×24h≤-4

heat conductivity(An average of 500°C)W/(m.k)





≤0.153







Content of slag(Ø≥0.212mm)(%)





≤15







Pull resisting strength (Thickness25mm)(Mpa)





≥0.04







Theoretical volume density ( kg/m3) kg/m3

96/128

96/128

96/128

96/128

96/128

96/128

Al2O3

≥40

≥43

44-47

51-53

43-45



Al2O3+SiO2

≥95

≥96

≥98

≥99

≥90



Al2O3+SiO2+ZrO2











≥99

ZrO2











≥15

Fe2O3

<0.5

<0.5

≤0.3

≤0.3





Na2O+K2O+Fe2O3

<0.9











Product specification (mm)(customized according to customer demand)

Normal length and width, thickness 6mm-60mm

Packing form

Woven bag or carton

Quality and environment system certification

ISO9001-2008, ISO14001-2004



TYPE

DKJL-200

DKJL-600

Service Temperature(°C)

-180~200

-180~600

Thickness(mm)

3,6,10

3,6,10

Density(kg/m3)

200 ± 20

Thermal conductivity(25°C,W/m·K)

≤0.020

Width of product(m)

customised

Color

White

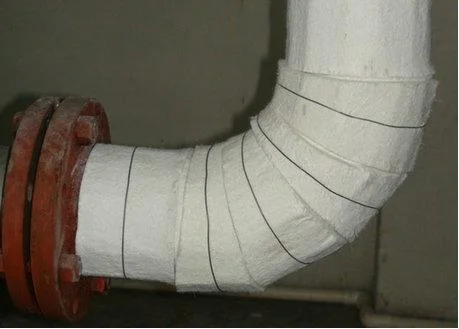

Application of aerogel heat insulation felt for oven

 aerogel blanket.png






Packaging & Shipping





Packing of aerogel heat insulation felt for oven: woven bag or carton.

Shipping of aerogel insulation felt for oven: By vessel or by train from any Chinese port,

                                                               Samples can be delivered by International express.

972461590_969




Our Services





1. Timely response,

Timely response to your inquiry, multiple choice recommendations based on your demand, quickly respond mails and provide solutions.



2. Sample evaluation

Aerogel insulation blanket sample and trial order are accepted for the quality evaluation.



3. Strict quality control

Arrange production on time and control quality strictly.



4. Shorter delivery time.

Book the earliest vessel or plane to guarantee the delivery time.



5. Professional Services

Provide all the detailed news and pictures from order to delivery;

Offer relative export documents and original certificate if needed;

Warm and considerable after-sale service



Company Information



DKJL refractories exporting company is one of the most professional suppliers of refractories in China. Our main products are refractory and thermal insulation materials, heating elements, and industrial ceramics. They are available in various sizes and shapes. Our products enjoy a good reputation for their excellent quality and service in domestic and international markets.

paste-pic-dp_uuid_i9deo





FAQ





1. How can I get your prompt quotatio for aerogel insulation blanket?

 We can give you reply with quotation quickly if you kindly send the inquiry with following factors: working temperature, maximum working temperature, bulk density, dimension (length*width*thickness), and quantity.



2.What's the MOQ of trial order?
No limit, we can offer the best suggestions and solutions according to your condition.





3. Which payment terms can you accept?
T/T, LC, Western Union, MoneyGram are available for us.



4.After an order is placed, when to deliver?
15-25days after confirming the order.

5. Does your company accept customization?
We accept OEM service.

6. How to solve the quality problems?
If the products are not conform to customer samples or have quality problems, our company will be responsible to make compensation for it based on enough evidences.



7. What is the HS code?

The HS code is 68061010



8.Is there any cost for the sample?

We can offer free sample without paying the freight charge.
