1000 high density calcium silicate cement board
1000 high density calcium silicate cement board
1000 high density calcium silicate cement board
1000 high density calcium silicate cement board
1000 high density calcium silicate cement board
1000 high density calcium silicate cement board
1000 high density calcium silicate cement board

1000 high density calcium silicate cement board

Model NO.:
calcium silicate board
Price:
USD 1.50-2.50
Delivery:
FOB
Minimum order quantity:
1
Supply Ability:
900 / Month
Country of Origin:
Qingdao
  • Warranty:1 year
  • After-sale Service:Online Technical Support
  • Project Solution Capability:graphic design
  • Place of Origin:CN;SHN
  • Brand Name:DKJL
  • Model Number:calcium silicate board

1000 high density calcium silicate cement board

Product Description



Calcium silicate cement board is an asbestos-free excellent thermal insulation product that can withstand continuous 1000°C operating temperature, which was made from xonotlite by thermoplastic reaction, then mixed with inorganic glass fiber to reinforce the strength. It is also a hydrophobic energy saving product widely used in industrial insulation field.





Standard size: 600x300mm, 610 x300mm

Thickness: 25 - 100 mm

Temperature limitation: 1000°C
Density: 200- 300kg/m3



We can also make special dimensions as customer request.





Characteristics of 1000C calcium silicate board

1.Super light weight,

2.Lower  thermal conductivity compared with other massive hard refractory insulation materials

3.High rupture and compressive strengths

4.Easy to install,

5.Reliable and durable.

6.Heat resistance and Non-deformation within the working temperature range

7.Non-corrosiveness to piping and equipment

8.Long service life

9.Asbestos free

10.Waterproof



Typical Application of calcium silicate cement board



Calcium Silicate Board was mainly used as insulation for thermal equipment and piping in the power, chemical, metallurgy, petrochemicl, textile and light industries as well as insulation for buildings, industrial furnaces and deck of ship.



Calcium silicate cement board Physical & Chemical Data

ITEM

Unit

DK-20

DK-23

DK-25

DK-27

Bulk density

kg/m3

200±10%

230±10%

250±10%

270±10%

Flexural Strength

Mpa

≥0.35

≥0.45

≥0.50

≥0.55

Cold crushing strength

(at 5% deformation room tem)

Mpa

≥0.60

≥0.80

≥0.90

≥0.10

Service Temp. Limit

°C

1000

1000

1000

1000

Linear Shrinkage

%

≤2 (1000,16hrs)

≤2 (1000,16hrs)

≤2 (1000,16hrs)

≤2 (1000,16hrs)

Thermal Conductivity

W/m.k

200°C 0.075

400°C 0.098

600°C 0.150

800°C 0.210

200°C 0.085

400°C 0.100

600°C 0.152

800°C 0.214

200°C 0.095

400°C 0.108

600°C 0.156

800°C 0.216

200°C 0.098

400°C 0.110

600°C 0.158

800°C 0.218

Compression strength at 10%

Deformation after 16hrs*1000°C

Mpa

0.32

0.4

0.45

0.5

porosity

%

90.8

90.6

90.4

90

Moisture content (by weight)

%

3-5%

PH value



8--9

color



white

surface condition



1.Original dimple pattern

2.Double sanded, smooth and good flatness

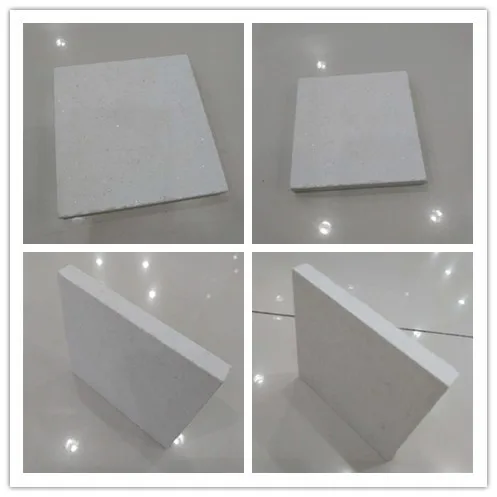

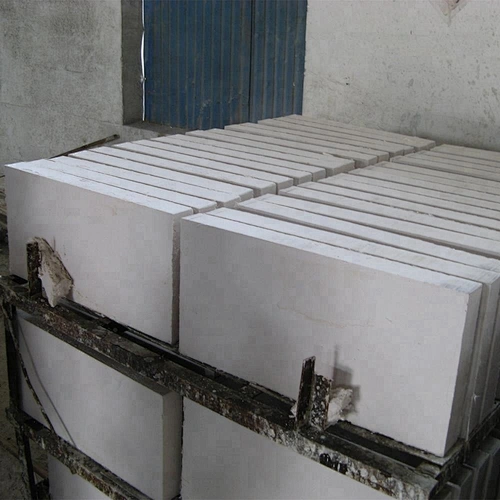

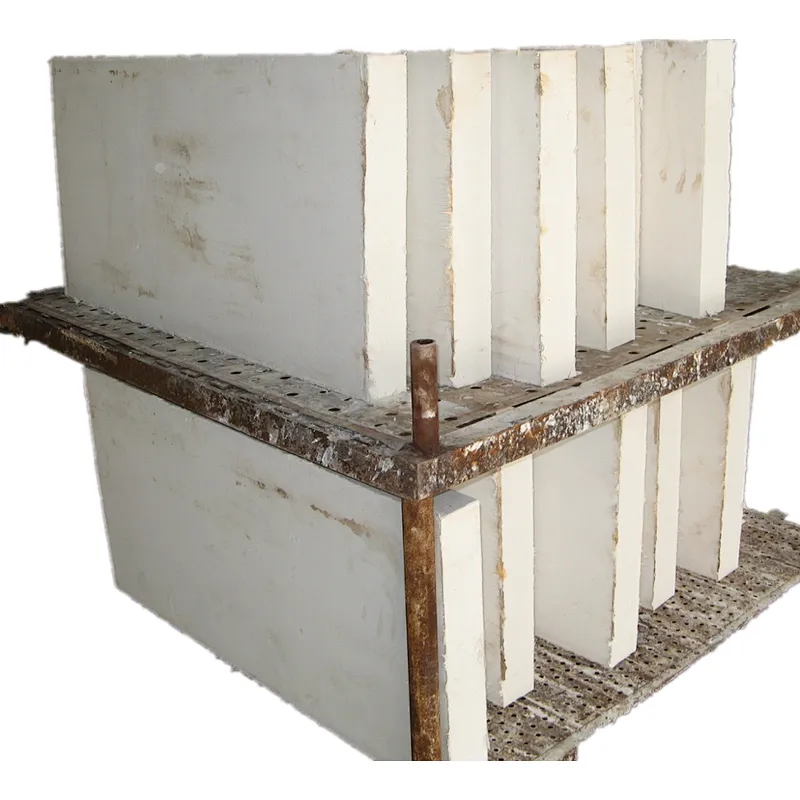

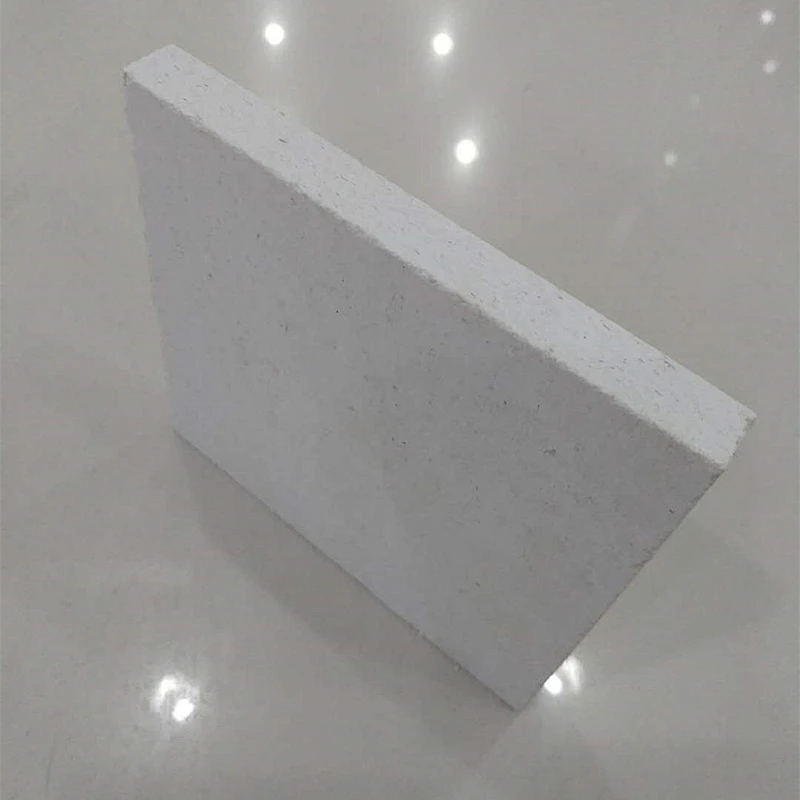

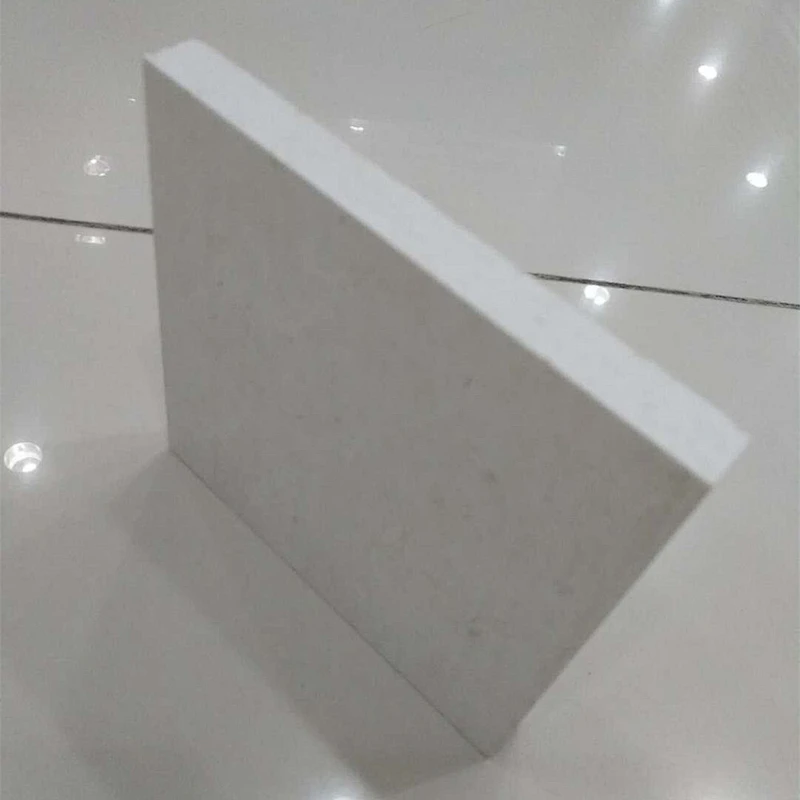

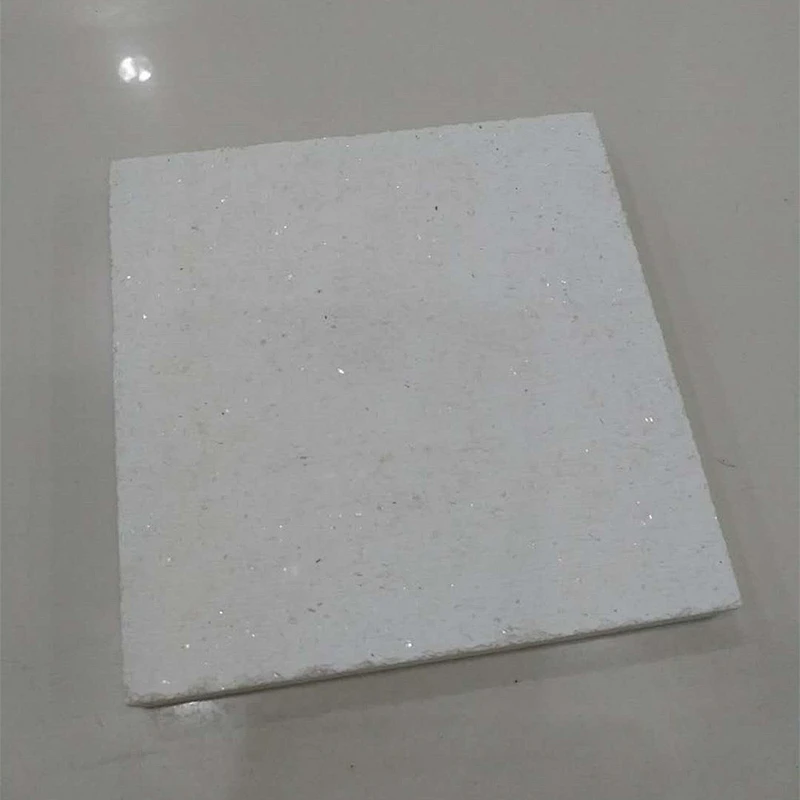

 Pictures of calcium silicate cement board




Packaging & Shipping



Package of 1000C calcium silicate board: inner plastic bags outer cartons or pallet.

We also provide OEM service, the package can be designed according to your requirements.

Shipping of 1000C calcium silicate board:

By vessel or by train from any Chinese port, Samples can be delivered by International express.

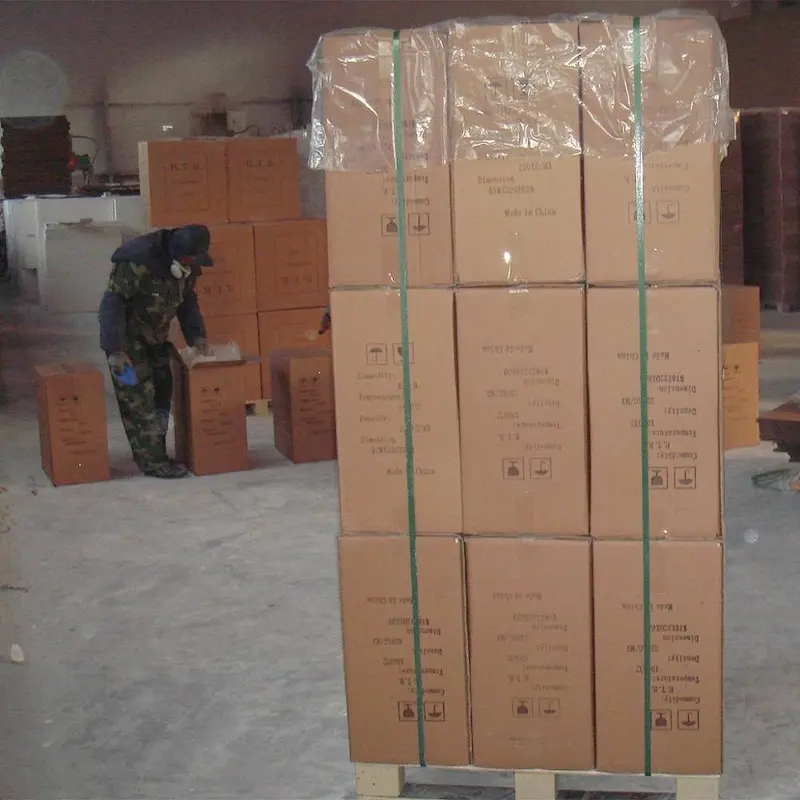

Package pictures of calcium silicate cement board

calcium silicate board



Our Services





1. Timely response,

Timely response to your inquiry, multiple choice recommendations based on your demand, quickly respond mails and provide solutions.





2. Sample evaluation

25mm calcium silicate board sample and trial order is accepted for the quality evaluation.



3. Strict quality control

Arrange production on time and control quality strictly.



4. Shorter delivery time.

Book the earliest vessel or plane to guarantee the delivery time.



5. Professional Services

Provide all the detailed news and pictures from order to delivery;

Offer relative export documents and original certificate if needed;

Warm and considerable after-sale service



Company Information



DKJL refractories exporting company is one of the most professional suppliers of refractories in China. Our main products are refractory and thermal insulation materials, heating elements and industrial ceramics. They are available in various sizes and shapes. Our products enjoy a good reputation for their excellent quality and service in domestic and international markets.


paste-pic-dp_uuid_i9deo



FAQ



1.How can I get your prompt quotation for calcium silicate fire board?

We can give you reply with quotation quickly if you kindly send the inquiry with following factors of the calcium silicate fire board: working temperature, bulk density, dimension( length*width*thickness) and quantity.





2.What's the MOQ of the order?
No limit, we can offer the best suggestions and solutions according to your condition.





3. Which payment terms can you accept?
T/T,LC,Western Union,moneygram are available for us.



4. After an order is placed, when to deliver?
15-25days after confirming the order.



5. Does your company accept customization?
We accept OEM service.



6. How to solve the quality problems?
If the products dont conform to customer’s samples or have quality problems, our company will take responsibility for it.





7. What is the HS code?

The HS code i68099000



8. Is there any cost for the sample?



we provide free sample but don't bear the freight.
