Model NO.
SK34 SK32 SK36 SK38
Price:
USD 128.00-598.00 / tons
Delivery:
FOB
Minimum order quantity:
10 tons
Supply Ability:
3000 tons / Month
Country of Origin:
ANY CHINA PORT
Quantity:
  • Place of Origin:CN
  • Shape:Brick
  • Material:Alumina Block
  • Refractoriness (Degree):1770°< Refractoriness< 2000°
  • SiO2 Content (%):20%
  • Al2O3 Content (%):30%-45%
  • MgO Content (%):0.5%
  • CaO Content (%):0.01
  • CrO Content (%):0.1~0.3%
  • SiC Content (%):0.1~1.4%
  • Model Number:SK34 SK32 SK36 SK38
  • Brand Name:DKJL

High temperature chamotte refractory bricks for lime kiln



Product Description



Refractory bricks for lime kilns were mainly made from chamotte, flint clay  and combining clay powder, being high pressure pressed and sintered in high temperature.



Low porosity bricks are made from low mullite stones, the main mineral composition of the low mullite stones are pressed and sintered mullite phases. The bricks have very good physical and chemical properties in high temperature conditions.





Refractory bricks for lime kilns features and advantages:

1.High refractoriness,

2.High-temperature endurable.

3.Good corrosion resistance.

4.Good spalling resistance and wear resistance.

5.Good thermal shock resistance.

6.High mechanical strength.

7.High-temperature creep rate is low.

8.Good volume stability at high temperature.



Refractory bricks for lime kilns application:

They are were widely used in all parts of furnace lining for middle and small capacity furnace such as glass furnace, blast furnace, hot-air furnace, cement furnace,chemical furnace and other heating engineering equipment.



Refractory bricks for lime kilns Technical Index:



Fire Clay Brick

Lower Porosity clay brick



DK-32

DK-34

DK-15

DK-12

Al2O3

≥40

≥42

≥42

≥45

Refractoriness °C

≥1710

≥1750





0.2MPa Refractoriness under load °C

≥1320

≥1400

≥1470

≥1500

Permanent liner change%

1350°C×3h

+0.2~-0.5

1400°C×2h

+0.1~-0.4

-0.2~+0.4

+0.05~-0.1

Apparent Porosity %

≤24

≤22

≤15

≤12

Cold crushing strength Mpa

≥19.6

≥29.4

58.8

68

Bulk Density g/cm3

2.1

2.15

2.3

2.37





Refractory bricks for lime kilns Common sizes:

Straight type

Arch type

Wedge type

L×W×H (mm)

230×114×65

230×114×75

230×114×32

220×110×60

220×110×50

220×110×40

220×110×30

L×W×H/h (mm)

230×114×65/55

230×114×65/45

230×114×65/59

220×110×65/50

220×110×75/65

220×110×60/40

L×W×H/h (mm)

230×114×65/55

230×114×65/45

220×110×75/65

220×110×60/40



Other sizes according to customer requirements

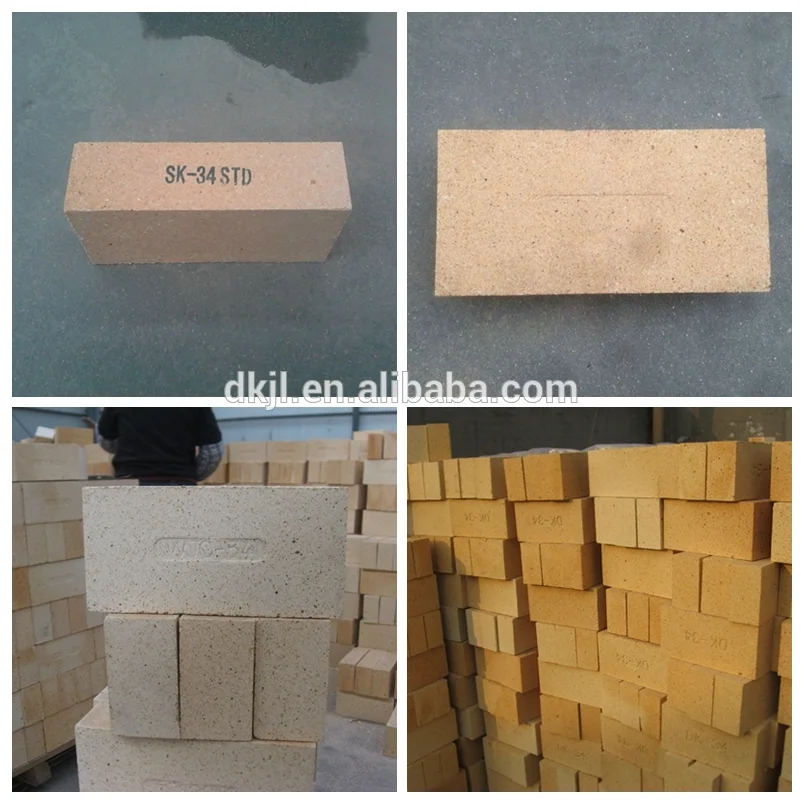

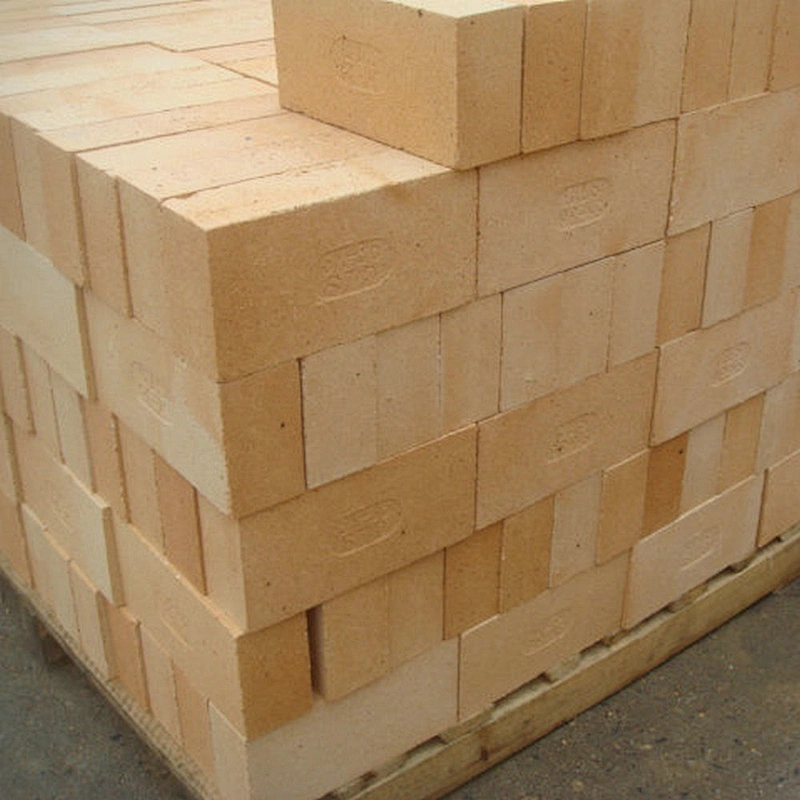

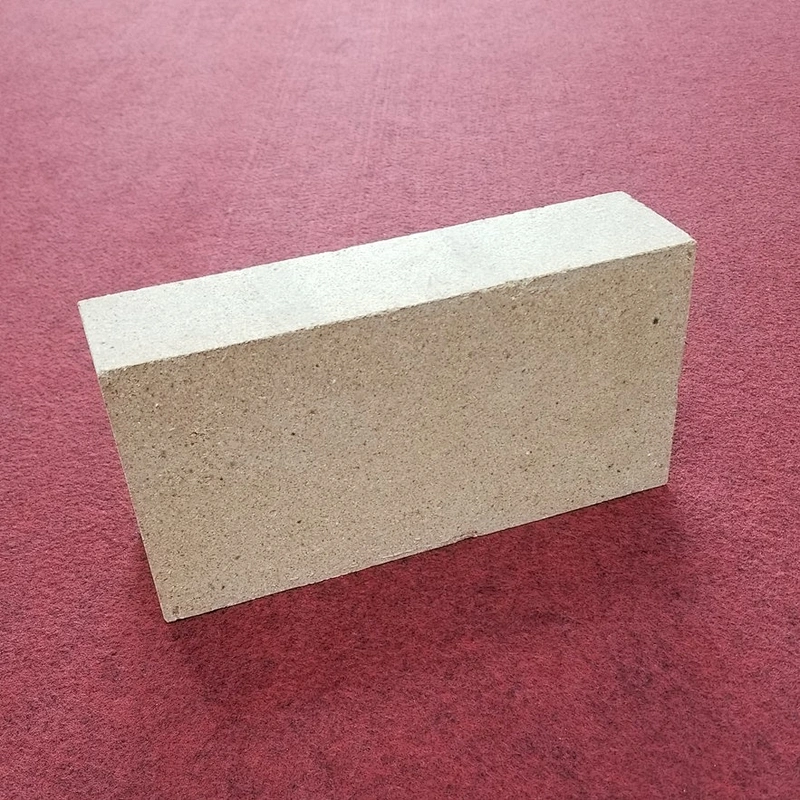

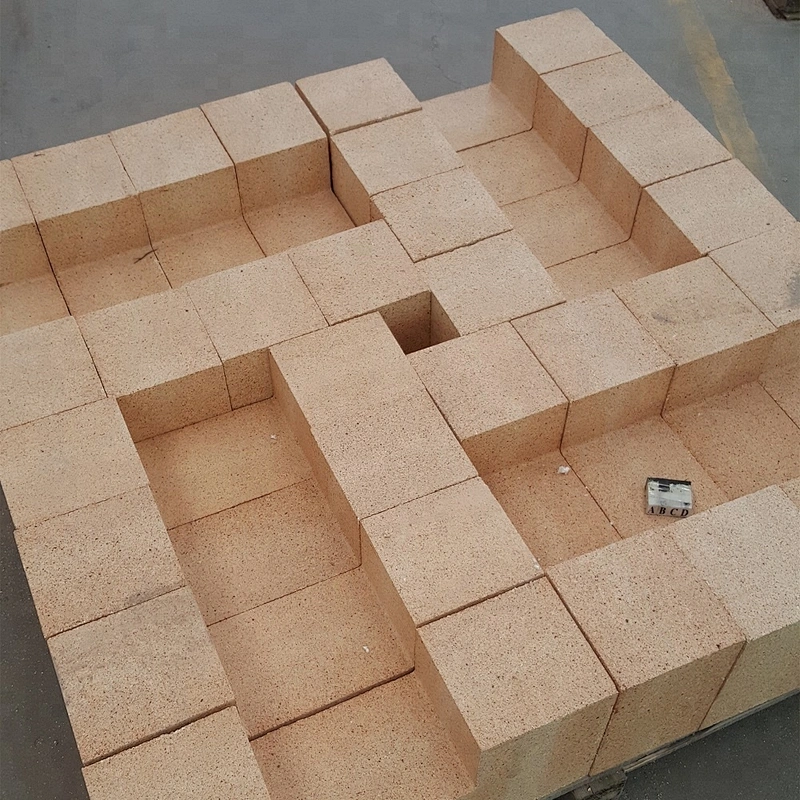

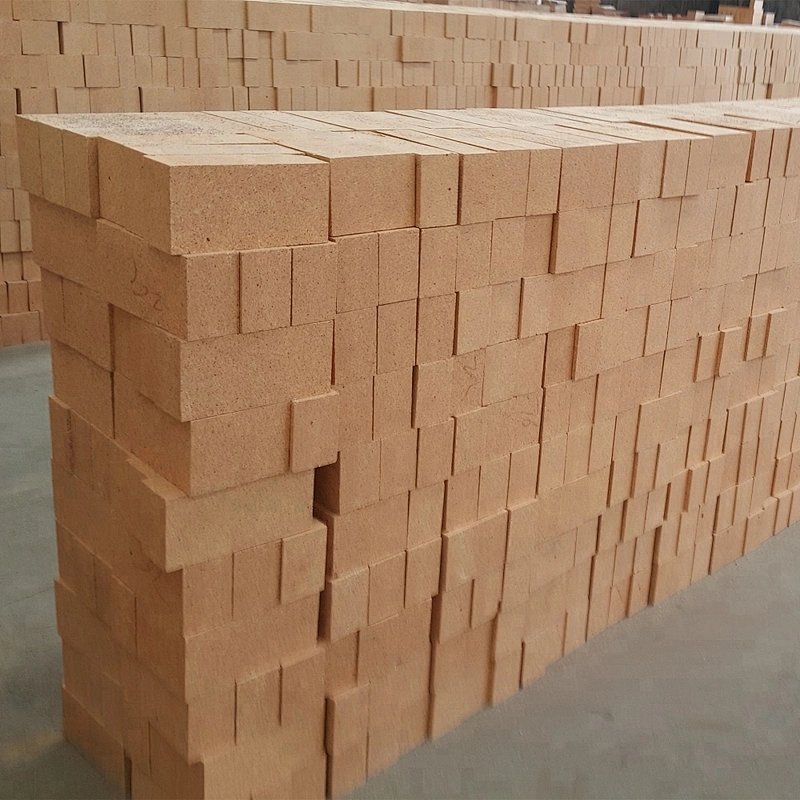

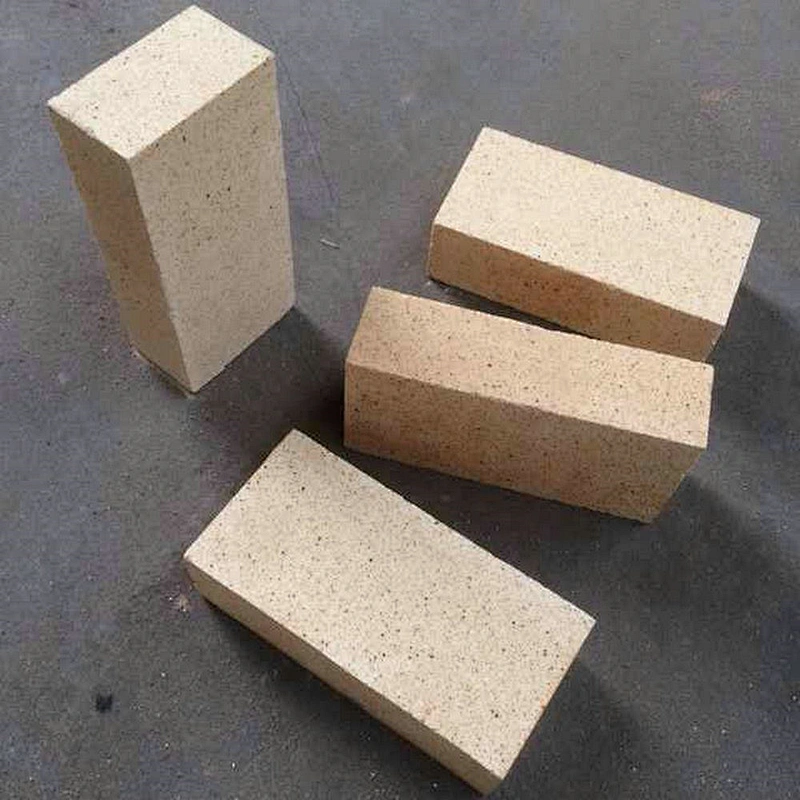

 Pictures of refractory bricks for lime kilns

paste-pic-dp_uuid_nxdhp



Packaging & Shipping



Packing of Refractory bricks for lime kilns: Standard export wooden pallet with PET strap fixed,

                                                                    paper or non-woven fabrics between layers,

                                                                    finally wrapped with plastic shrink film from outside.



Shipping of Refractory bricks for lime kilns: By vessel or plane from any Chinese port

972461590_969

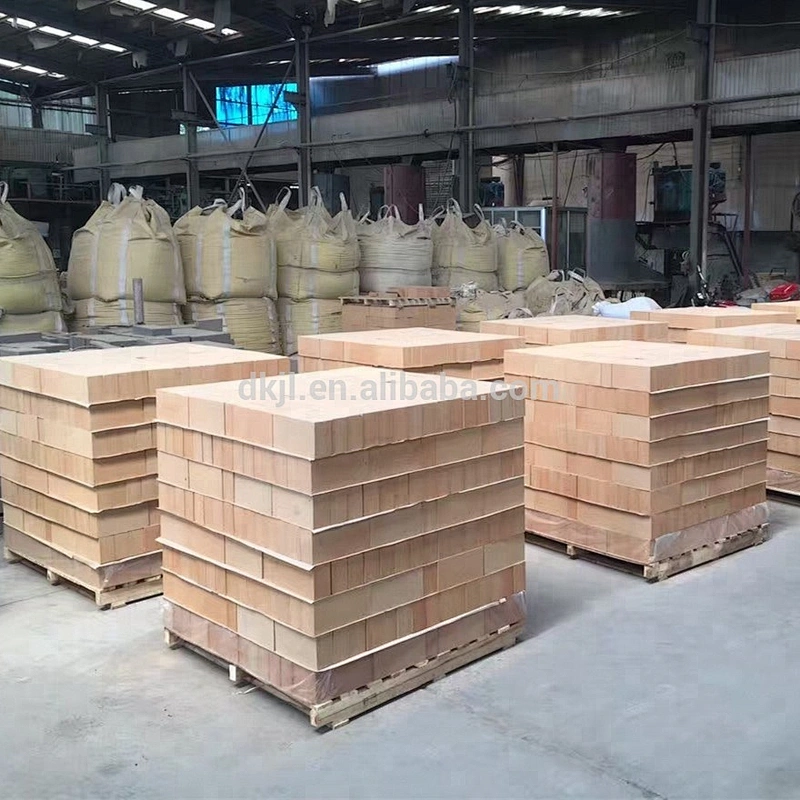

 Packing pictures of Refractory bricks for lime kilns

SK36 package pictures



Our Services



1.Timely response,

Timely response to your inquiry, multiple choice recommendations based on your demand,quickly respond mails and provide solutions.



2.Sample evaluation

Refractory bricks for lime kilns sample and trial order are accepted for the quality evaluation



3.Strict quality control

Arrange production on time and control quality strictly.



4.Shorter delivery time.

Book the earliest vessel or plane to guarantee the delivery time.



5.Professional Services

Provide all the detailed news and pictures from order to delivery;

Offer relative export documents and original certificate if needed;

Warm and considerable after-sale service


Company Information



DKJL refractories exporting company is one of the most professional suppliers of refractories in China.The main products are refractory bricks,thermal insulation material,heating elements, industrial ceramics and scientific instruments.They are available in various size and shapes.Our products enjoy a good reputation for their excellent quality and service in domestic and international markets. Hope to cooperate wiHTB1V07hHpXXXXc.XpXXq6xXFXXXw


FAQ



1.How can I get your prompt quotation for Refractory bricks for lime kilns?

We can give our offer quickly if you kindly send the inquiry with following factors: bulk density, working temperature, pressure strength, dimension(length*width*thickness), application and quantity.



2.What's the MOQ of trial order?
No limit,We can offer the best suggestions and solutions according to your requirement.



3.What is the MOQ(minimum order quantity )?

1 pallet.



4.Which payment terms are you accept?
T/T,LC,Western Union,moneygram are available for us.



5.After an order is placed, when to deliver?
15-25days after confirming the order



6.Is your company accept customization?
we accept OEM service.



7.How to solve the quality problems?
If the products are not conform to customer samples or have quality problems, our company will be responsible for it.



8.What is the HS code?

The HS code is 69022000



9. Is there any cost for the sample?

We provide free sample but don't bear the freight.
