- Place of Origin:CN;JIA
- Shape:Brick
- Material:Mullite
- Refractoriness (Degree):Common (1580°< Refractoriness< 1770°)
- SiO2 Content (%):25-49%
- Al2O3 Content (%):45%-74%
- MgO Content (%):<=0.5%
- CaO Content (%):<=0.5%
- CrO Content (%):<=0.5%
- SiC Content (%):<=0.5%
- Model Number:TJM b-5
- Brand Name:Morgan
Hot sale high temperature refractory TJM b5 insulation brick
TJM is the brand of Morgan insulation brick produced in China.
TJMare multigrades bricks with limiting temperatures of use ranging from 1100°C up to 1760°C. Each grade is formulated to meet specific thermal and physical requirements.
They are made from highpurity refractory clay, with graduated additions of alumina for the high temperature products, and a carefully graded organic filler, which burns out during manufacture to
give a uniform, controlled pure structure.
Each brick is machines to precise tolerances on all six faces.
TJM insulation brick features and advantage
1.Excellent compression strength
2.Excellent heat stability
3.Low thermal conductivity
4.Low heat storage
5.High alumina, low iron and alkali flux content
6.Accurate dimension
7.designed packaging
TJM insulation brick applications
Recommended to use as a primary hot face refractory lining or as backup insulation behind other
refractories in furnaces, kilns, flues, refining vessels and heaters, regenerators, gas producers and main, soaking pits, stress relieving furnaces, reactor chambers and similar high temperature industrial equipment.
TJM insulation brick technical Index
| Main properties | TJMC1 | TJMB6 | TJMC2 | TJMB7 | TJM20 | TJMB4 | TJM23 | TJMB5 | TJM25 | TJM26 | TJM28 | TJM29 | TJM30 | |
| Classification temperature | °C | 1300 | 1400 | 1400 | 1500 | 1100 | 1200 | 1260 | 1300 | 1350 | 1430 | 1540 | 1580 | 1600 |
| Density | Kg/m3 | 1000 | 800 | 1100 | 900 | 500 | 800 | 500 | 800 | 800 | 800 | 900 | 1100 | 1100 |
| Modulus of rupture | Mpa | 2.1 | 1.8 | 3.0 | 2.5 | 0.7 | 1.2 | 0.7 | 1.2 | 1.2 | 1.8 | 1.8 | 2.0 | 2.0 |
| Cold crushing strength | Mpa | 3.5 | 2.0 | 4.0 | 3.0 | 0.8 | 2.0 | 1.0 | 2.0 | 1.8 | 2.0 | 2.5 | 3.0 | 3.0 |
| AL2O3 | % | 45.0 | 55.0 | 57.0 | 64.0 | 45.0 | 45.0 | 45.0 | 45.0 | 45.0 | 55.0 | 64.0 | 70.0 | 73.0 |
| SIO2 | % | 49.0 | 41.0 | 38.0 | 32.0 | 50.0 | 50.0 | 48.0 | 45.0 | 45.0 | 41.0 | 32.0 | 28.0 | 25.0 |
| FE2O3 | % | 0.9 | 0.9 | 0.9 | 0.8 | 1.0 | 1.0 | 1.0 | 0.9 | 0.9 | 0.9 | 0.7 | 0.7 | 0.6 |
| K2O+Na2O | % | 1.0 | 0.9 | 1.0 | 0.8 | 1.0 | 1.0 | 1.2 | 1.0 | 1.0 | 0.9 | 0.8 | 0.7 | 0.7 |
TJM insulation brick common size
| size | ||
| L×W×H (mm) | L×W×H/h (mm) | L×W×H/h (mm) |
| 230×114×65 | 230×614×64 | 250×640×64 |
| 230×114×76 | 230×614×76 | |
| Other sizes according to customer requirements | ||

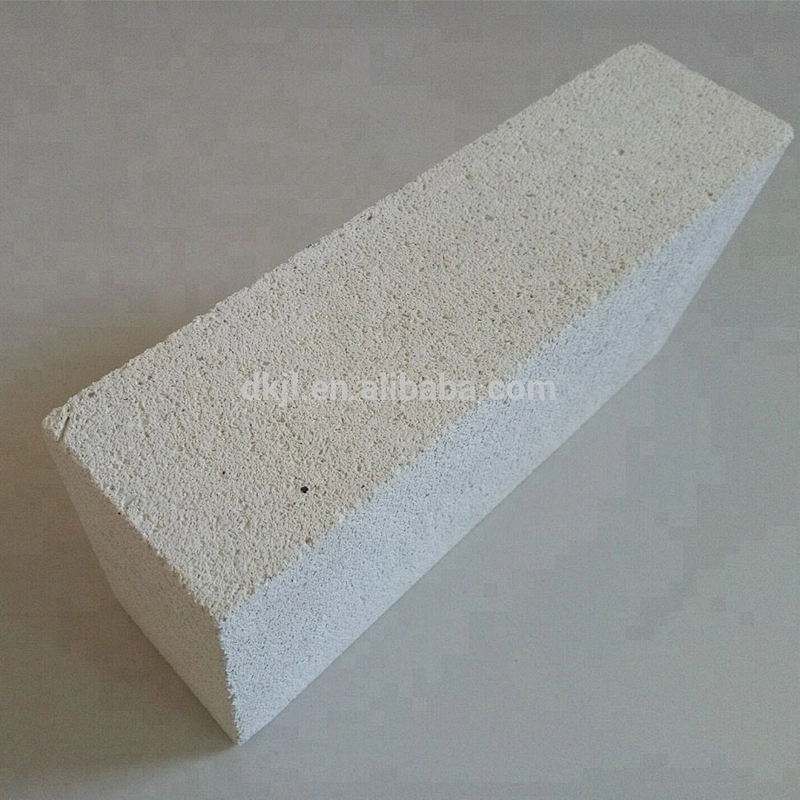

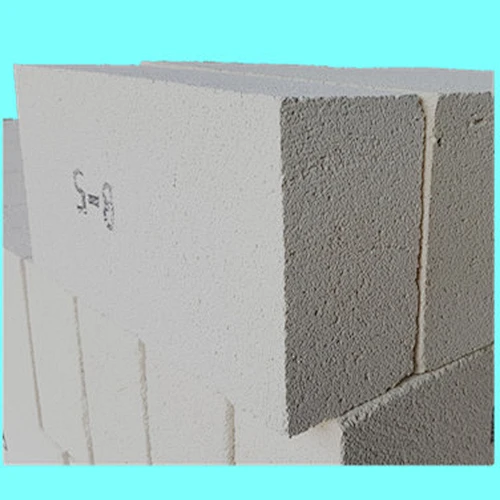

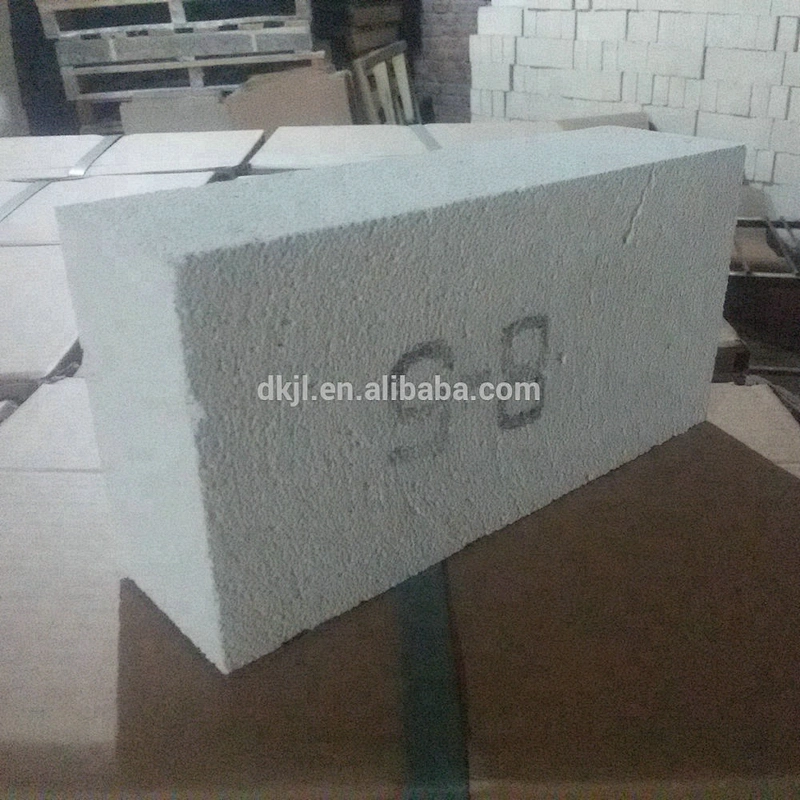

Pictures of TJM insulation brick

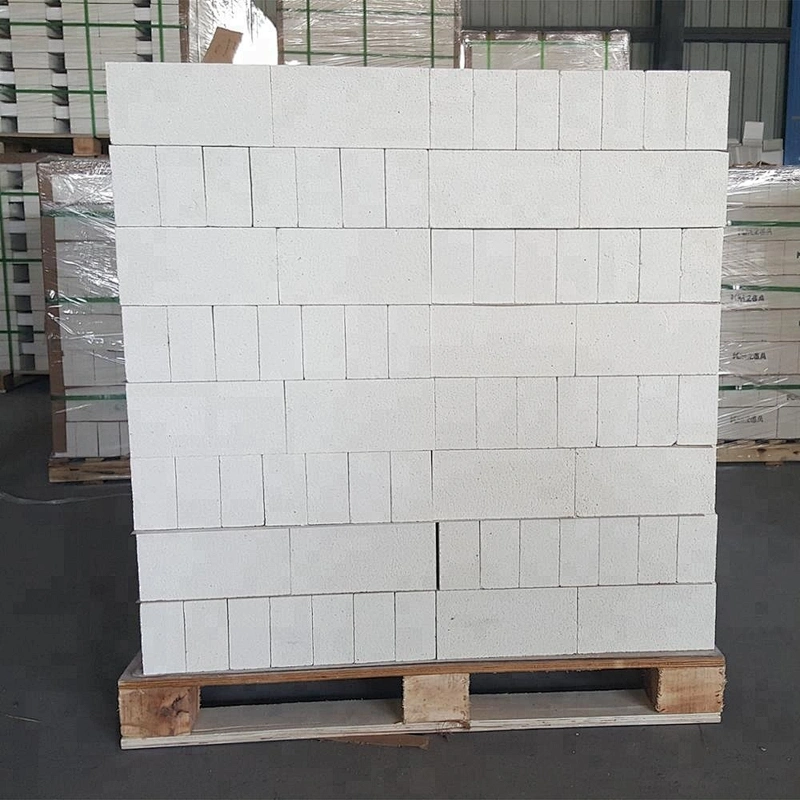

Packing of TJM insulation brick
Standard export wooden pallet with cardboard and PET strap, 10 bricks for 1 carton,
48 cartons for 1 pallet.
shipping of TJM insulation brick:By vessel or by train from any Chinese port,
Samples can be delivered by International express.

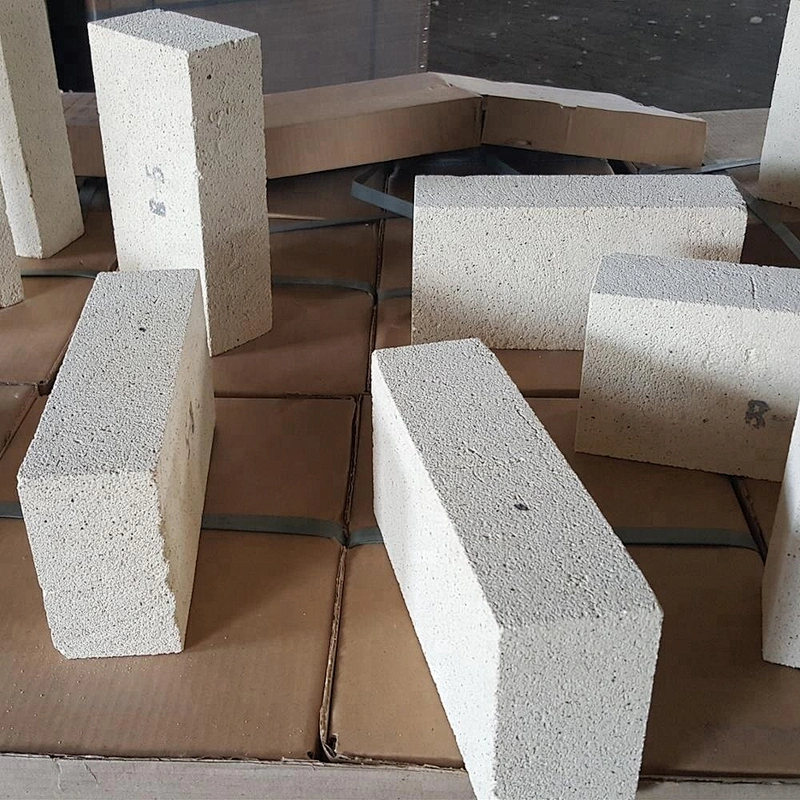

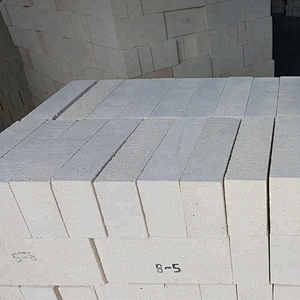

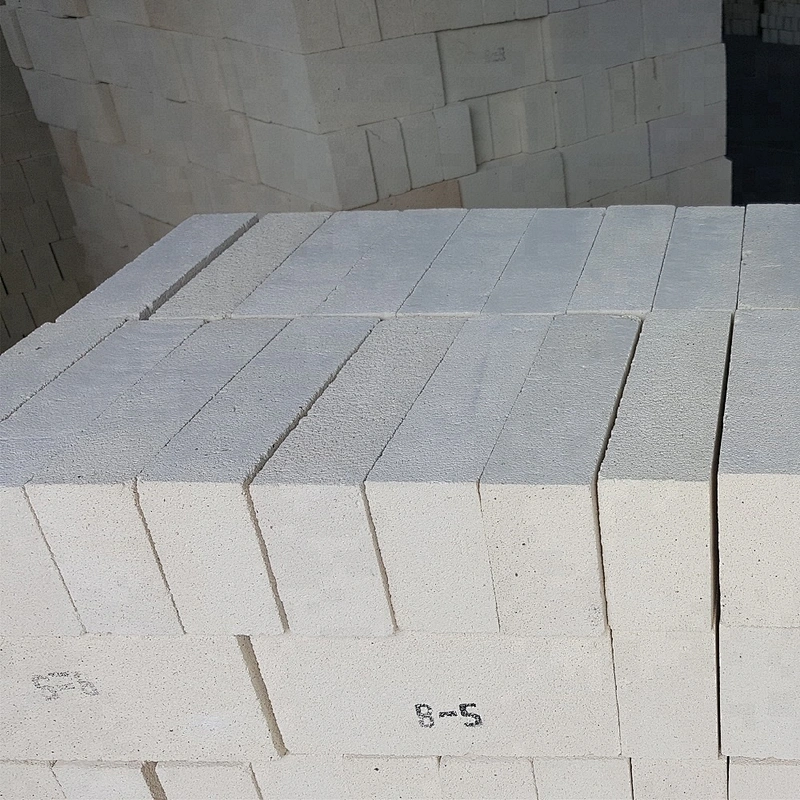

Package pictures of TJM insulation brick
1. Timely response,
Timely response to your inquiry, multiple choice recommendations based on your demand, quickly respond mails and provide solutions.
2. Sample evaluation
b-5 insulation brick sample and trial order are accepted for the quality evaluation.
3. Strict quality control
Arrange production on time and control quality strictly.
4. Shorter delivery time.
Book the earliest vessel or plane to guarantee the delivery time.
5. Professional Services
Provide all the detailed news and pictures from order to delivery;
Offer relative export documents and original certificate if needed;
Warm and considerable after-sale service
DKJL refractories exporting company is one of the most professional suppliers of refractories in China. Our main products are refractory and thermal insulation materials, heating elements and industrial ceramics. They are available in various sizes and shapes. Our products enjoy a good reputation for their excellent quality and service in domestic and international markets.
1.How can I get your prompt quotation for TJM insulation brick?
We can give you reply with quotation quickly if you kindly send the inquiry with following factors of TJM insulation brick : bulk density, working temperature, pressure strength, dimension(length*width*thickness), application and quantity.
2.What's the MOQ of trial order ?
No limit,We can offer the best suggestions and solutions according to your condition.
3:What is the MOQ(minimum order quantity )?
1 pallet.
4. How many pieces does a wooden pallet load?
The package for the size 230×114×65
with cardboard: 10 bricks for 1 carton, 48 cartons for 1 pallet, 480 pieces/pallet,
without cardboard : 528 pieces/pallet;
The package for the size 230×114×76
with cardboard:10 bricks for 1 carton, 40 cartons for 1 pallet, 400pieces/pallet,
without cardboard is 448pieces/pallet.
5.Which payment terms do you accept?
T/T,LC,Western Union,moneygram are available for us.
6.After an order is placed, when to deliver?
15-25days after confirming the order.
7.Does your company accept customization?
we accept OEM service.
8.How to solve the quality problems?
If the products do not conform to customer samples or have quality problems, our company will be responsible to make compensation for it.
9.What is the HS code?
The HS code is 69022000.
10. Is there any payment for the sample?
We can offer free sample without paying the freight charge.
