- Place of Origin:CN
- Shape:Brick
- Material:Alumina Block
- Refractoriness (Degree):Common (1580°< Refractoriness< 1770°)
- SiO2 Content (%):above 25%
- Al2O3 Content (%):above 48%
- MgO Content (%):/
- CaO Content (%):/
- CrO Content (%):/
- SiC Content (%):1.2-1.4
- Model Number:DM/LM
- Brand Name:DKJL

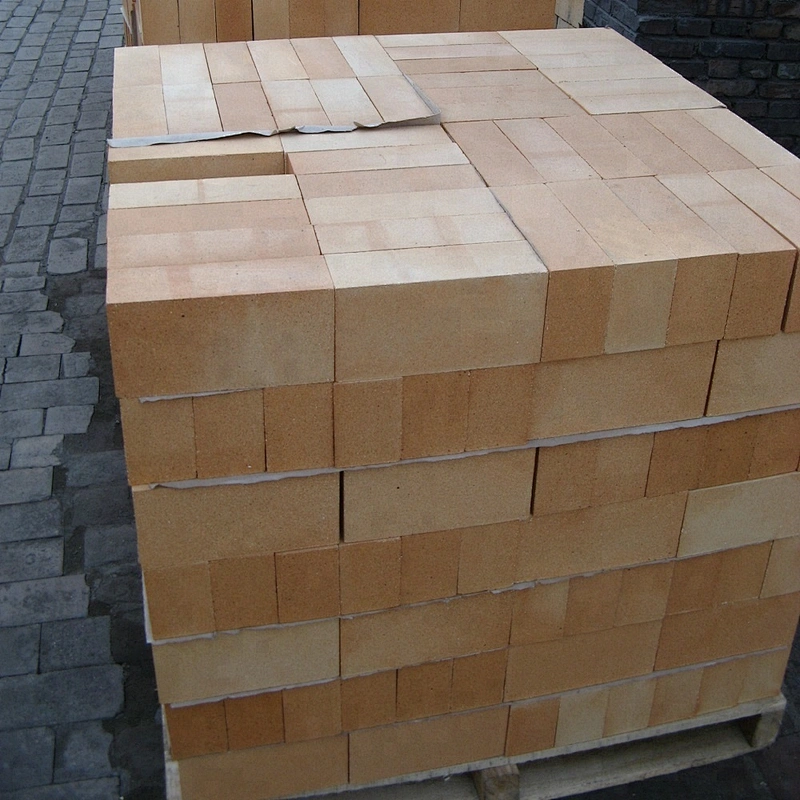

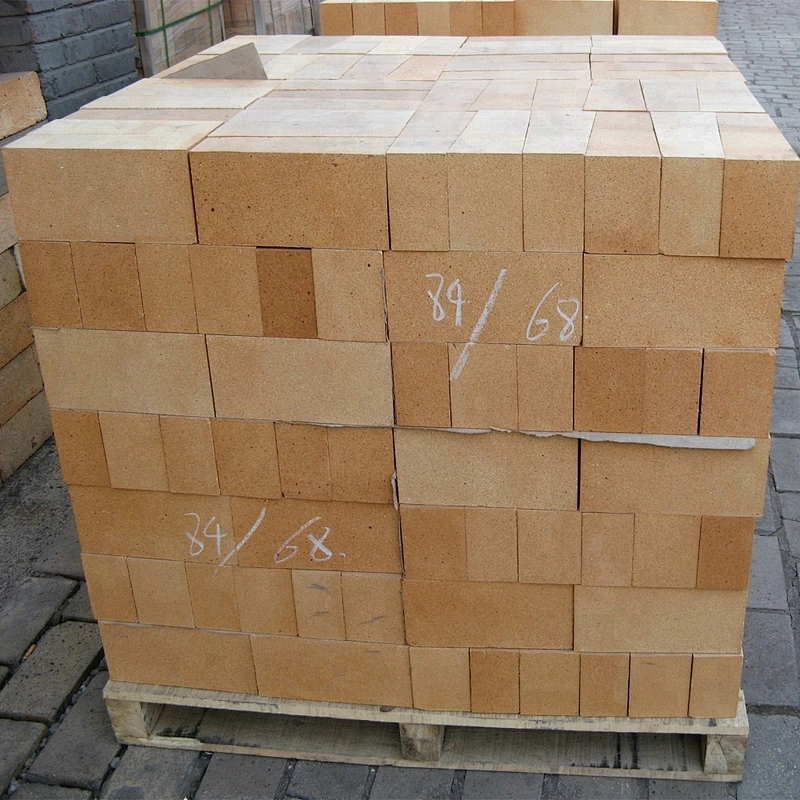

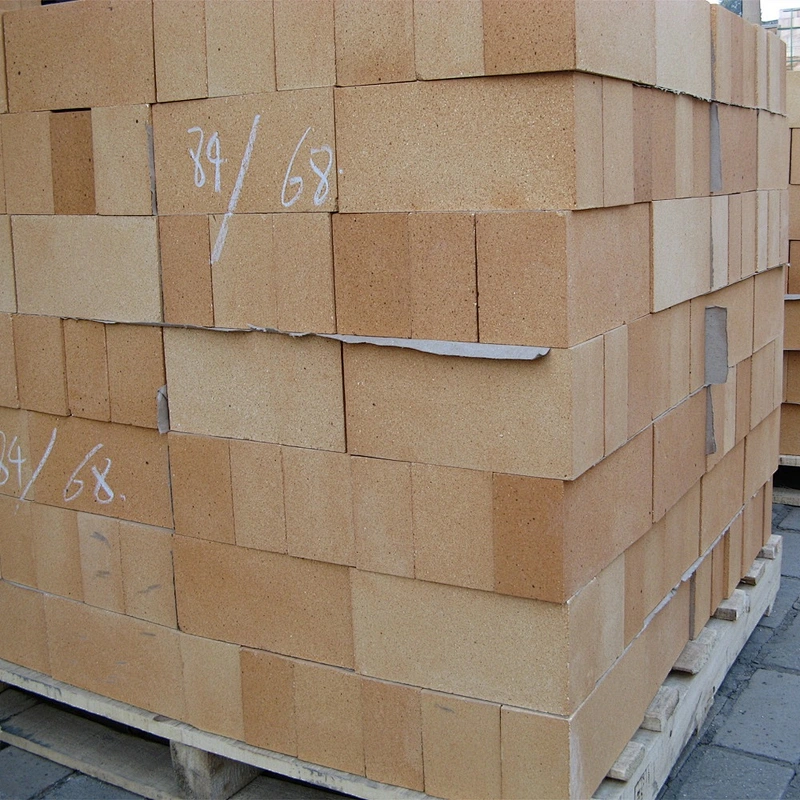

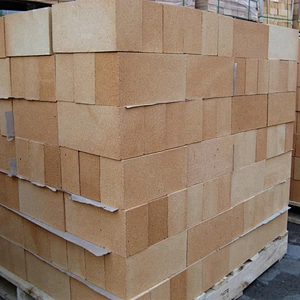

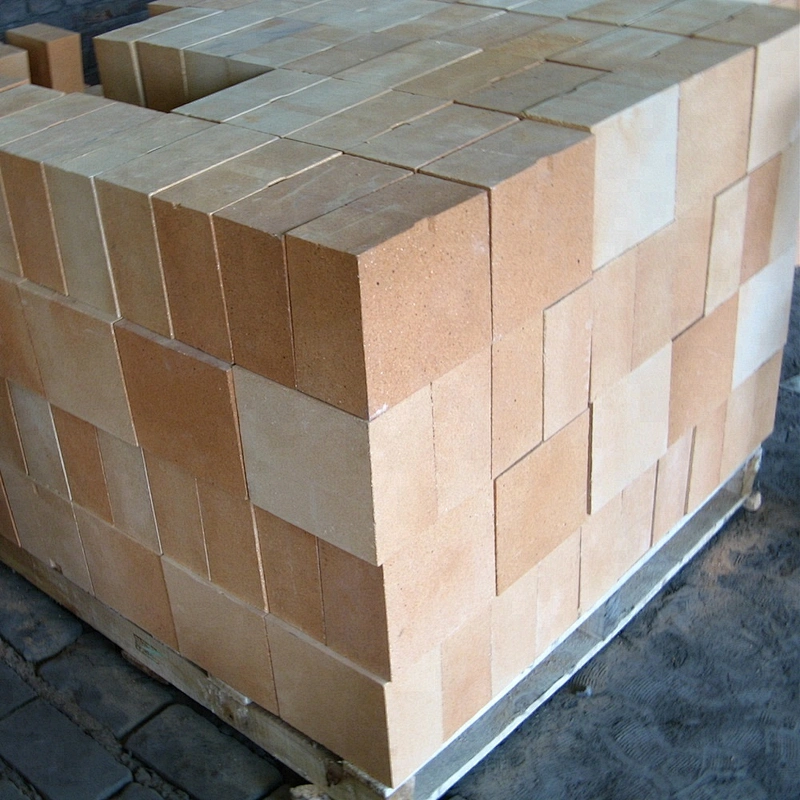

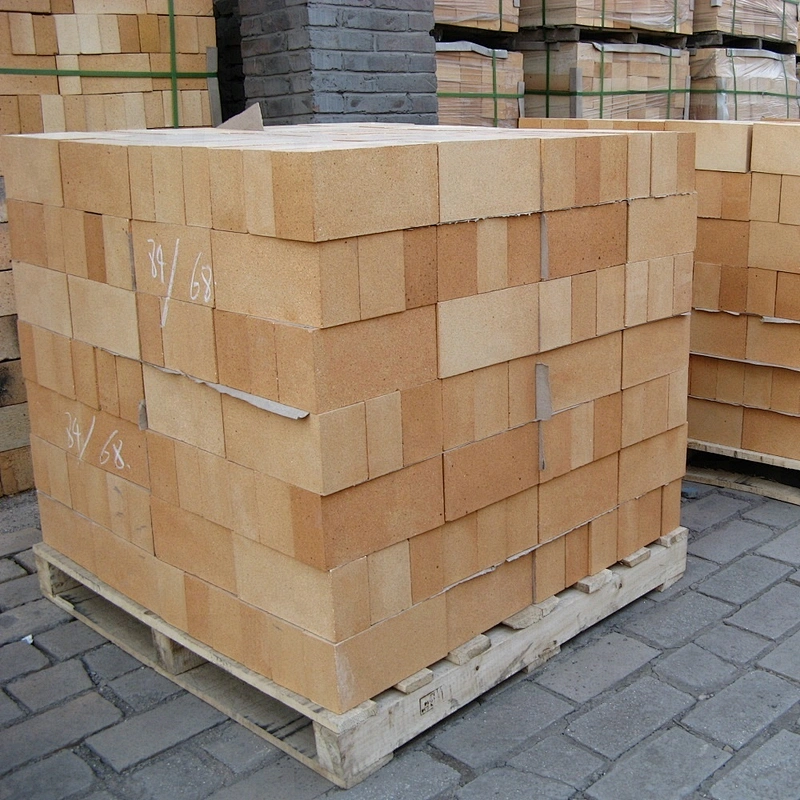

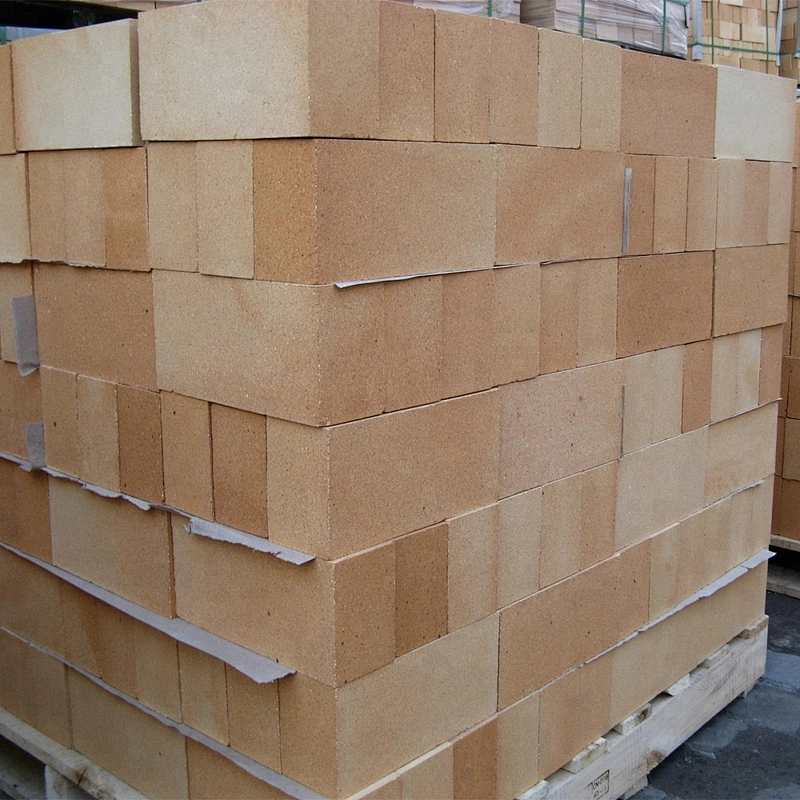

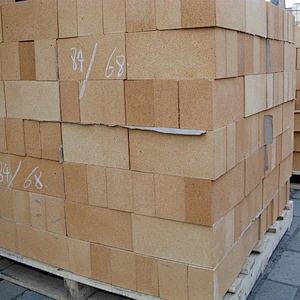

Low thermal conductivity alumina oxide insulation brick for hot blast stove
Characteristic:
• Excellent corrosion resistance to neutral slag and liquid mental pentration at high temperature.
• Withstand verious attacks from volatile matters, such as ash from coal, lignite, fuel oil, etc.
• High bulk density, high mechanical strength and good resistance to thermal spalling,good volume stability at high temperature.
Application:
Alumina oxide brick is widely used in the insulating layers and linings of various heat engineering equipments such as hot blast stove, heating furnace, boiler, tunnel kiln and so on.
Physical properties and data:
Main property | Classify temperature °C | Apparent density kg/m3 | Chemical component Wgt % | Bending strength Mpa | Cold crushing strength Mpa | |||
Al2 O3 % | SiO2 % | Fe2 O3 % | K2 O + Na2O % | |||||
DM20 | 1100 | 550 | 45.00 | 50.00 | 1.00 | 1.00 | 0.70 | 0.80 |
DM23 | 1260 | 530 | 45.00 | 51.00 | 0.80 | 0.72 | 0.70 | 1.00 |
DM25 | 1350 | 800 | 52.00 | 41.55 | 0.62 | 0.81 | 1.20 | 1.80 |
DM26 | 1430 | 780 | 59.00 | 37.00 | 0.70 | 0.70 | 1.80 | 2.00 |
DM28 | 1540 | 880 | 64.00 | 32.00 | 0.60 | 0.60 | 2.00 | 2.50 |
DM30 | 1600 | 1000 | 70.00 | 28.00 | 0.33 | 0.21 | 2.00 | 3.00 |
JM23 | 1260 | 480 | 37.00 | 44.40 | 0.70 | 1.10 | 1.00 | 1.20 |
JM26 | 1430 | 800 | 58.00 | 39.10 | 0.70 | 1.70 | 1.50 | 1.60 |
JM28 | 1540 | 890 | 67.10 | 31.00 | 0.60 | 0.90 | 1.80 | 2.10 |
JM30 | 1650 | 1020 | 73.40 | 25.10 | 0.50 | 0.90 | 2.10 | 2.20 |
Packing: Standard export carton, wooden pallet
Shipping: By vessel or plane from any Chinese port
Provide sample for test before order
Provide competitive price
Arrange prodcution on time
Control product quality and delivery time
Provide finished products and packing photos
Book the earliest and fast vessel
Provide original document and original certificate
After sale
DKJL refractories exporting company is one of the most professional suppliers of refractories in China.The main products are refractory bricks,thermal insulation material,heating elements, industrial ceramics and scientific instruments.They are available in various size and shapes.Our products enjoy a good reputation for their excellent quality and service in domestic and international markets.
MOQ: 500 pcs
Inquiry factors: Working temp, Density, Size, Quantity
