Model NO.
Customer's Requirement
Price:
USD 2.20-98.00
Delivery:
FOB
Minimum order quantity:
2
Supply Ability:
200 / Month
Country of Origin:
Any China Port
Quantity:
  • Place of Origin:CN;HEN
  • Shape:Pipe
  • Material:Silicon Carbide (SiC)
  • Refractoriness (Degree):Common (1580°< Refractoriness< 1770°)
  • SiO2 Content (%):None
  • Al2O3 Content (%):None
  • MgO Content (%):None
  • CaO Content (%):None
  • CrO Content (%):None
  • SiC Content (%):99
  • Model Number:Customer's Requirement
  • Brand Name:DKJL

Factory Price Sic Black Silicon Carbide Heater Rod for Furnace

Silicon Carbides are used in applications ranging in temperature from 600°C up to 1500°C in both air and controlled atmospheres. Although the type of atmosphere used will determine the maximum recommended element temperature. This kind of silicon carbide elements can be mounted either vertically or horizontally. The elements of our product are available in the range of 10 to 54mm diameter. The total length can vary up to 4500mm.

Diameter
Length
of
Hot  zone
Length
of
Cold  End
Overall Length
Resistance

Diameter
Length
of
Hot zone
Length
of
ColdEnd
Overall Length
Resistance
8
100-300
60-200
240-700
2.1-8.6
30
300-2000
250-800
800-3600
0.4-4.0
12
100-400
100-350
300-1100
0.8-5.8
35
400-2000
250-800
900-3600
0.5-3.6
14
100-500
150-350
400-1200
0.7-5.6
40
500-2700
250-800
1000-4300
0.5-3.4
16
200-600
200-350
600-1300
0.7-4.4
45
500-3000
250-750
1000-4500
0.3-3.0
18
200-800
200-400
600-1600
0.7-5.8
50
600-2500
300-750
1200-4000
0.3-2.5
20
200-800
250-600
700-2600
0.6-6.0
54
600-2500
300-750
1200-4000
0.3-3.0
25
200-1200
250-700
700-2600
0.4-5.0








U shape Silicon Carbide is consists of two silicon carbide rod with same diameter. Each rod has both hot zone and cold end with identical resistance. Two rods are connected by the low resistance SiC. Also the connector could be used as holder  according to different requirements.



Diameter

Length of Hot zone
Length of Cold End
Centre distance
Diameter of Centre
Length of Connector
14
400
300
30
22
55
16
400
300
35
25
60
20
500
400
40
30
70
25
700
450
55
38
90
30
1500
650
65
45
110
35
1500
650
90
45
120
40
2400
850
110
56
150

3-phase elements are available in 2 different types: SGC (Dumbbell), SGD(Standard).
These elements are self-bonded silicon carbide formed by re-crystallization of silicon carbide at high temperature. It consists of three high-purity silicon carbide rods connected at one end by a silicon carbide crossbar. The joints, also formed from silicon carbide, fully bond the components into a structurally homogeneous body.

.

Packaging & Shipping

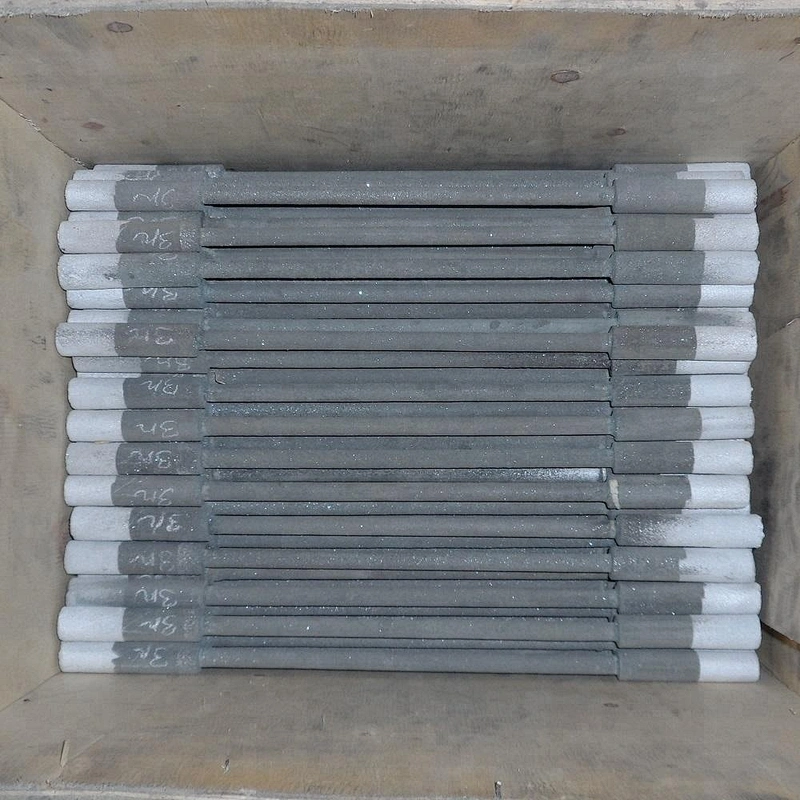

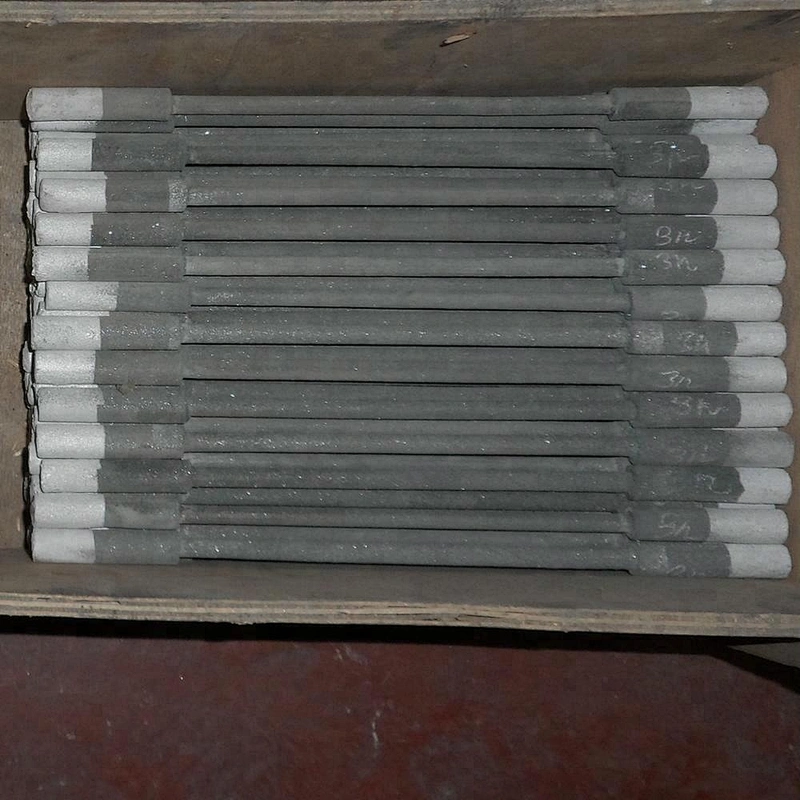

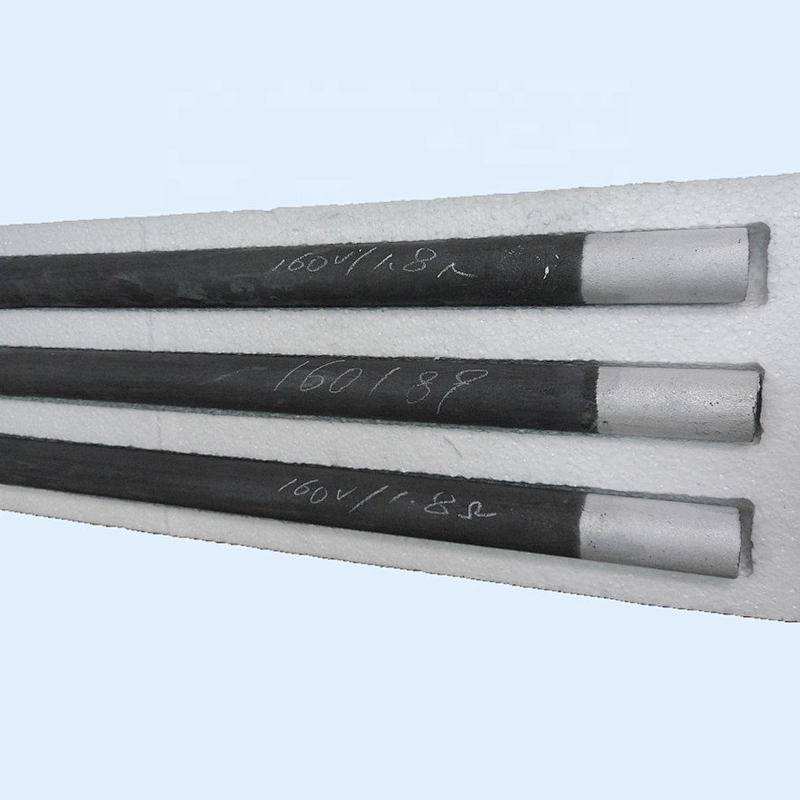

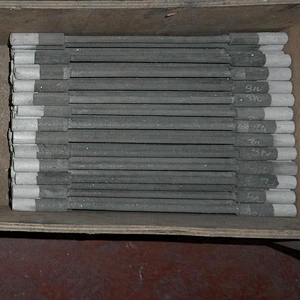

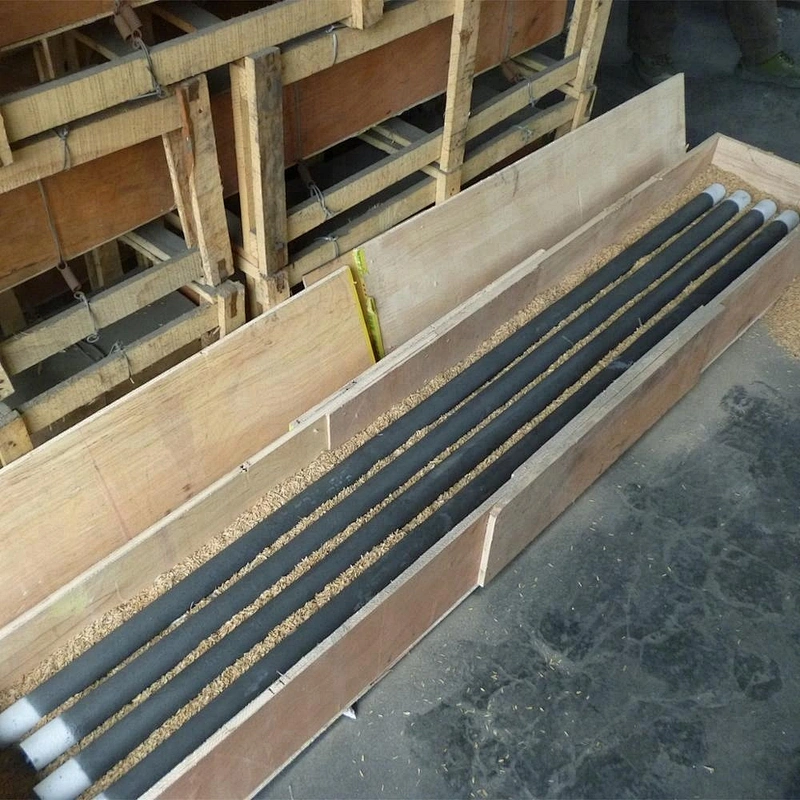

Package of silicon carbide rod: Wooden Box filled with Polyfoam

OEM service, the package can be designed according to your requirements.

Shipping of silicon carbide rod: By vessel or by plane from any Chinese port, Samples can be delivered by International express.



972461590_969

Our Services



1.Timely response,

Timely response to your inquiry, multiple choice recommendations based on your demand,quickly respond mails and provide solutions.



2.Free sample

Sample and trial order are accepted for the quality evaluation



3.Strict quality control

Arrange production on time and control quality strictly.



4.Shorter delivery time.

Book the earliest vessel or plane to guarantee the delivery time.



5.Professional Services

Provide all the detailed news and pictures from order to delivery;

Offer relative export documents and original certificate if needed;

Warm and considerable after-sale service

Company Information



DKJL refractories exporting company is one of the most professional suppliers of refractories in China. Our main products are refractory and thermal insulation materials, heating elements, industrial ceramics. They are available in various sizes and shapes. Our products enjoy a good reputation for their excellent quality and service in domestic and international markets.



QQ20180108135553







FAQ



1.How can I get your prompt quotation for silicon carbide rod?

We can give you reply with quotation quickly if you kindly send the inquiry with following factors:

1).Choose the shape you need, like Rod, U, W, Single Spiral etc.

2) Cold zone: length and diameter;

3) Hot zone: length and diameter;

4) Length of the connector (bridge length);

5) Overall length;

6) Resistance you need.

7) Quantity:

8) Application:



2.What's the MOQ of the order?
No limit, we can offer the best suggestions and solutions according to your condition.



3. Which payment terms can you accept?
T/T,LC,Western Union,moneygram are available for us.



4. After an order is placed, when to deliver?
15-25days after confirming the order.



5. Does your company accept customization?
We accept OEM service.

6. How to solve the quality problems?
If the products don’t conform to customer’s samples or have quality problems, our company will be responsible to make compensation for it based on enough evidence.



7. What is the HS code?

  HS code is 85168000
