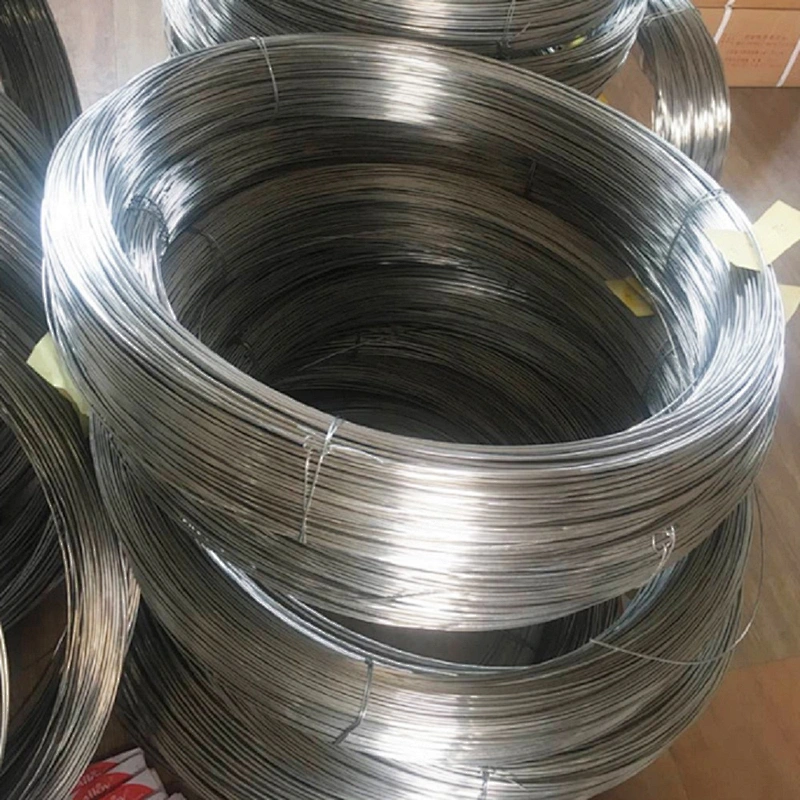

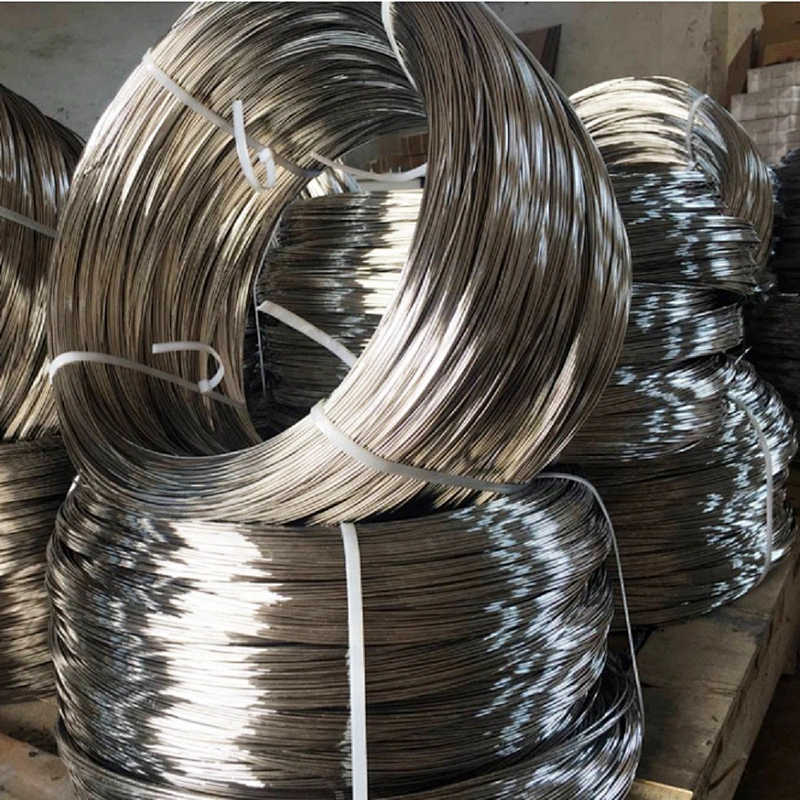

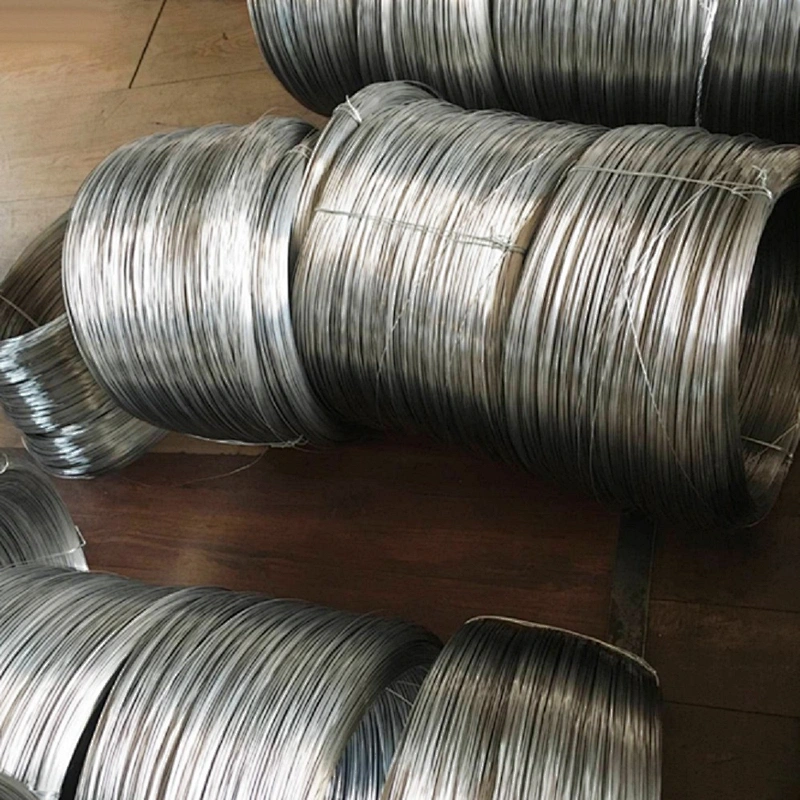

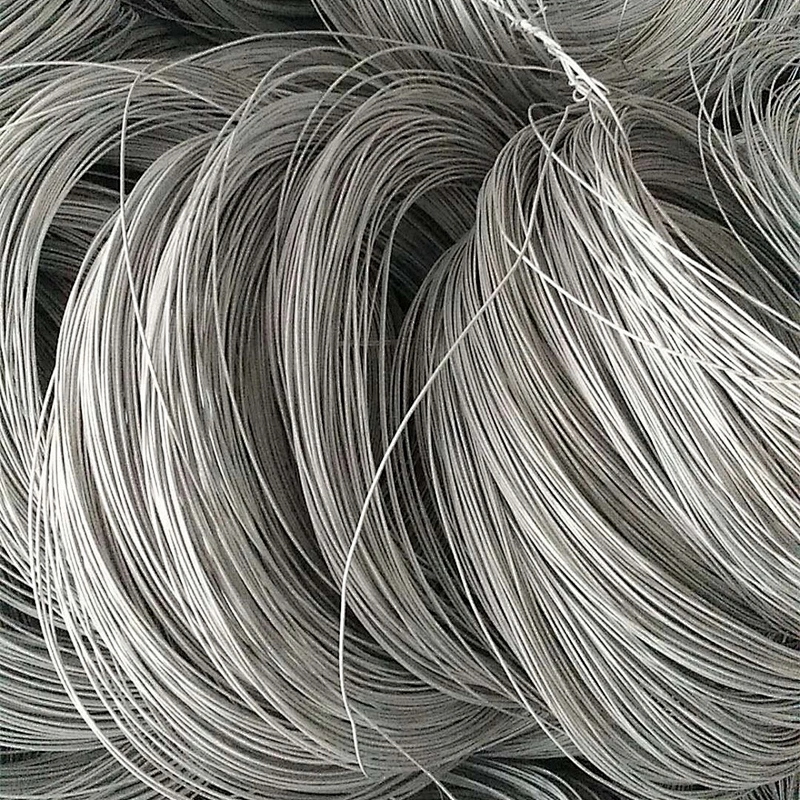

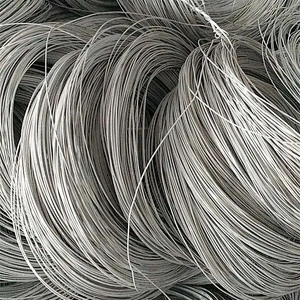

Electric Rezistans Cr20Ni80 Heating Element Nichrome Wire

Model NO.
Cr20Ni80
Price:
USD 5.00-30.00 / kilograms
Delivery:
FOB
Minimum order quantity:
20 kilograms
Supply Ability:
20000 kilograms / Month
Country of Origin:
Any China port
Quantity:
  • Place of Origin:CN;SHG
  • Brand Name:DKJL
  • Model Number:Cr20Ni80
  • Application:industrial furnace
  • Shape:flat wire/ribbon
  • Material:Nichrome alloy
  • Chemical Composition:Nickel, Chromium

Electric Rezistans Cr20Ni80 Heating Element Nichrome  Wire

Product Description



Nichrome  wire is a type of high resistance electrical wire. The wire resists the flow of electricity, and converts the electrical energy into heat.



Nichrome, a non-magnetic alloy of nickel and chromium, is commonly used to make resistance wire because it has a high resistivity and resistance to oxidation at high temperatures. When used as a heating element, resistance wire is usually wound into coils.

The high nickel content, in combination with the high chromium content let the scaling temperature can reach to 1250ºC

Chrome Nickel wire was shaped by means of high speed automatic cooling machine of which the power capacity is controlled by computer, they are available as wire and ribbon(strip).



Product forms and size range



Features and advantages

1)The highest working temperature up to 1200 degree.

2)higher strength than iron chromium aluminum under high temperature

3)not easy to deform under high temperature

4)good plasticity

5)easy to repair,

6)high emissivity,

7)Non-magnetic

8)strong corrosion resistance,

9)long service life



Application

Chrome nickel wire resistance is widely used for making electric heating elements in home appliances and industrial furnaces.,various electrical resistors and locomotive braking resistor, infrared equipment, liquefied gas infrared heat-resisting net, different kinds of igniting and radiating electrodes and voltage-regulating resistors for motors and so on in Metallurgical machinery



Main characteristics

TypeCr20Ni80Cr15Ni60Cr30Ni70Cr20Ni35Cr20Ni30

Main chemical compositionNiRest55.0~61.0Rest34.0~37.030.0~34.0
Cr20.0~23.015.0~18.028.0~31.018.0~21.018.0~21.0
Fe≤1Rest≤1RestRest
Maximal Temperature(℃)12001150125011001100
Resistance Temperature correction coefficient.(CT)1.09±0.051.11±0.051.18±0.051.04±0.051.06±0.05
Melting point (℃)14001390138013901390
Resistivityρ20℃(10-6Ω.m)800℃1.0081.0781.0281.1881.173
1000℃1.0141.0951.0331.2191.201
1200℃1.025 1.043
Fast life valueTem.(℃)11751100120010501050
hour(h)≥110≥100≥110≥100≥100
Specific gravity(g/cm3)8.48.28.17.97.9
Elongation(%)≥25≥25≥20≥20≥20
Thermal(kj/m.h.℃)60.345.245.243.843.8
Specific heat(20℃)j/g.℃0.440.4940.4610.50.5
Extend strength(20~1000℃)α*10-6℃181717.11919
Tensile strength(kg/mm2)>85>85>85>85>85
Repeatedly bending(F/R)>12>12>12>12>12
MicrostructureAusteniticAusteniticAusteniticAusteniticAustenitic



Notice

Resistance electric heating wire has strong antioxidant properties, but a variety of gases in furnaces such as air, carbon, sulfur, hydrogen and nitrogen atmosphere, still have a certain impact on it.



Although these heating wires all have had antioxidant treatment, the transportation, winding, installation and other process will cause damage to a certain extent and reduce its service life.



In order to extend the service life, customers need to do pre oxidation treatment before using. The method is to heat alloy elements which have installed completely in the dry air to the temperature (lower 100-200C than its maximum using temperature), heat preservation for 5 to 10 hours, then cooling slowly with furnace.








Packaging & Shipping

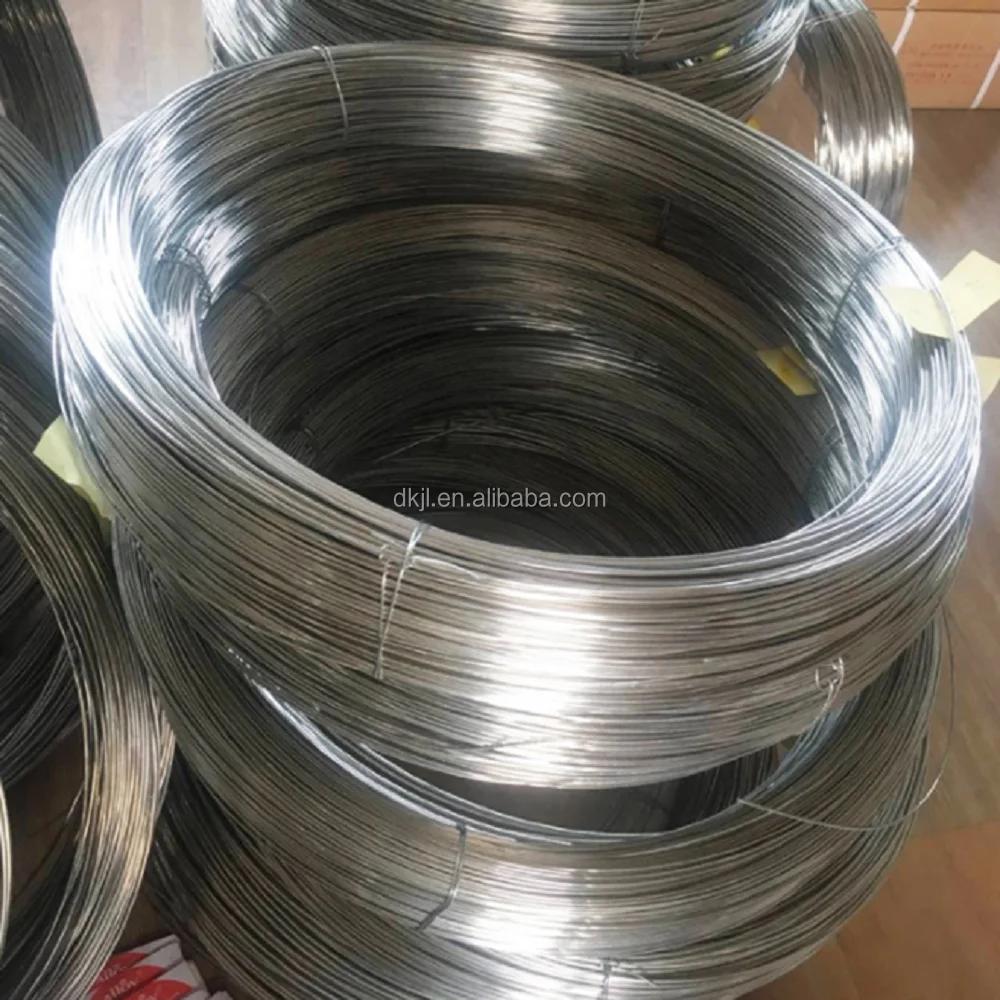

Package of nickel wire: Goods are supply in coil or on spool, Carton or wooden case in outside as demanded.

Shipping of nickel wire: By vessel or by train from any Chinese port,Samples can be delivered by International express.






Our Services



1.Timely response,

Timely response to your inquiry, multiple choice recommendations based on your demand,quickly respond mails and provide solutions.



2.Sample evaluation

nickel wire Sample and trial order are accepted for the quality evaluation



3.Strict quality control

Arrange production on time and control quality strictly.



4.Shorter delivery time.

Book the earliest vessel or plane to guarantee the delivery time.



5.Professional Services

Provide all the detailed news and pictures from order to delivery;

Offer relative export documents and original certificate if needed;

Warm and considerable after-sale service



Company Information



DKJL refractories exporting company is one of the most professional suppliers of refractories in China. Our main products are refractory and thermal insulation materials, heating elements, industrial ceramics. They are available in various sizes and shapes. Our products enjoy a good reputation for their excellent quality and service in domestic and international markets.






FAQ



1. How can I get your prompt quotation for nickel wire?

We can give you reply with quotation quickly if you kindly send the inquiry with following factors of nickel wire: diameter (or thickness and width), brand name (or working temperature), electrical resistance (Resistivity), application and quantity.



2. What’s the MOQ of the order?
No limit, we can offer the best suggestions and solutions according to your condition.



3. Which payment terms can you accept?
T/T,LC,Western Union,moneygram are available for us.



4. After an order is placed, when to deliver?
15-25days after confirming the order.

5. Does your company accept customization?
We accept OEM service.

6. How to solve the quality problems?
If the products don’t conform to customer’s samples or have quality problems, our company will be responsible to make compensation for it based on enough evidences.



7. What is the HS code?

The HS code is 85169090



8. Is there any cost for the sample?

We provide free sample but don’t bear the freight
