- Place of Origin:CN;SHG
- Type:Bare
- Application:Heating
- Conductor Type:Solid
- Brand Name:DKJL
- Model Number:heating alloys
- Conductor Material:Ni-Cr-Fe electric heating alloys
- Insulation Material:Other

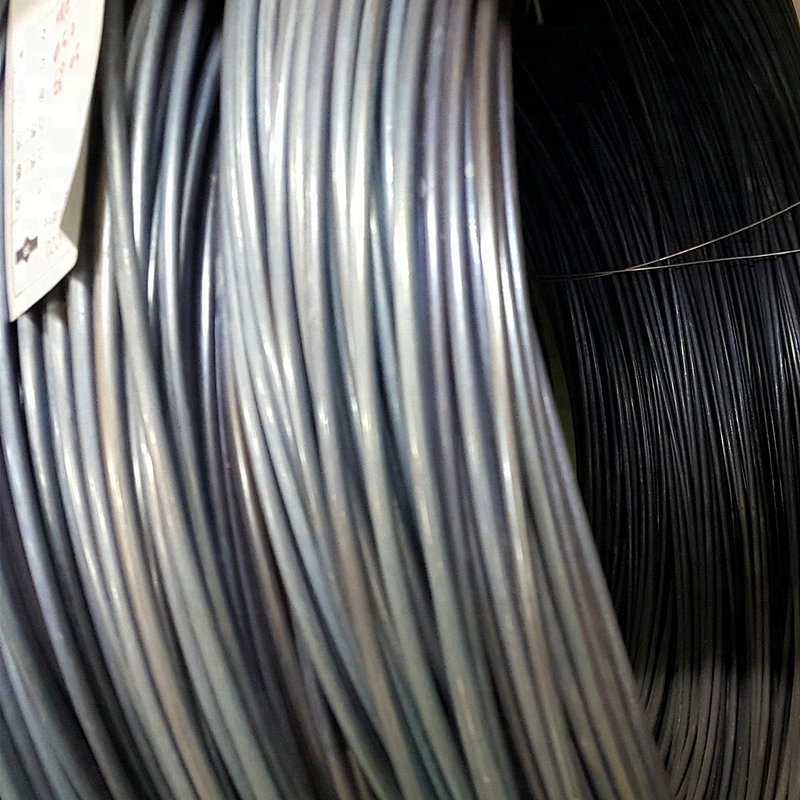

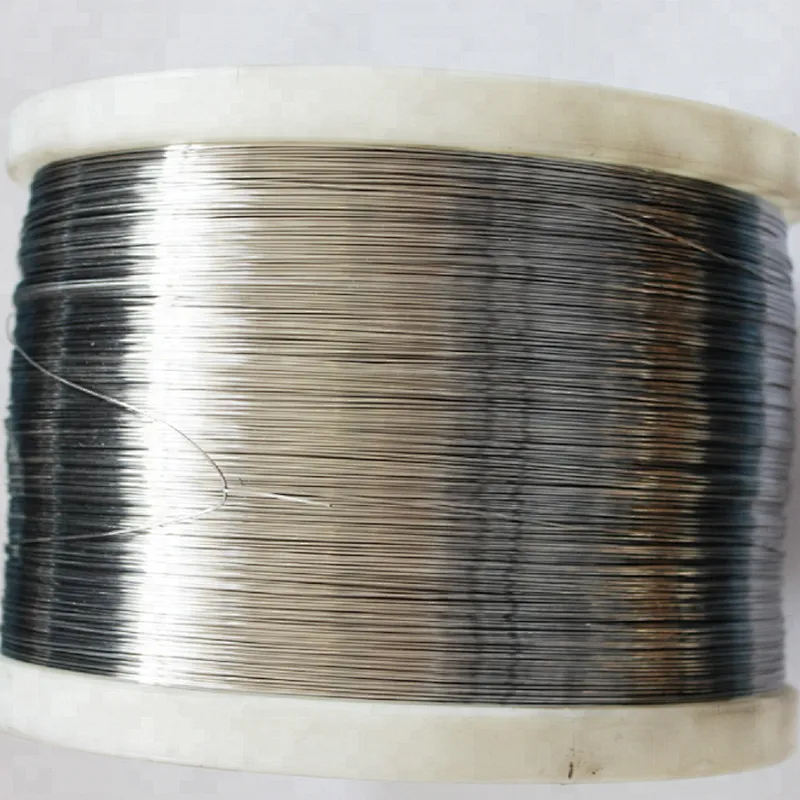

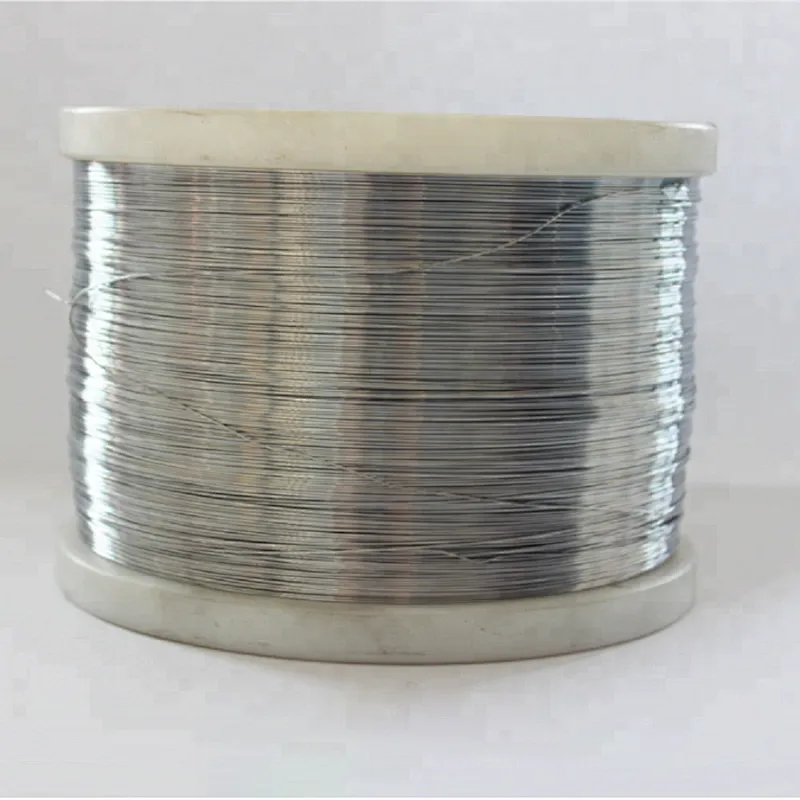

Cr30Ni70 heating resistance alloy wire
Main Advantage and Application
1. Nickel-chromium, nickel-chromium alloy with high resistivity, surface body sexual well. At high temperature and high intensity, and a good performance and processing may welding nature widely used metallurgical, electrical, mechanical components and electrical manufacturing industries for doing heat resistance material. Our Products widely apply to chemical industry, metallurgy mechanism, glass industry, ceramic industry, home appliance area and so on.
Main shape and Size for reference

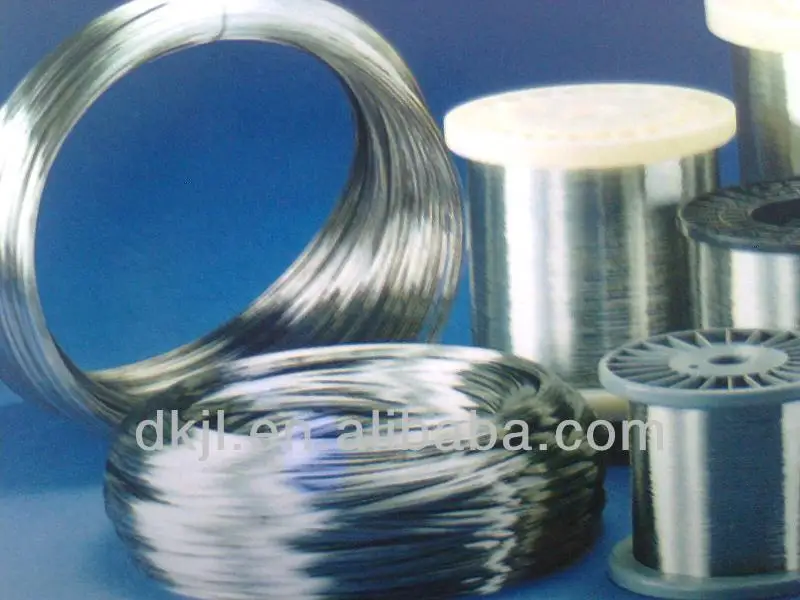

wires:0.018-10mm Ribbons:0.05*0.2-2.0*6.0mm

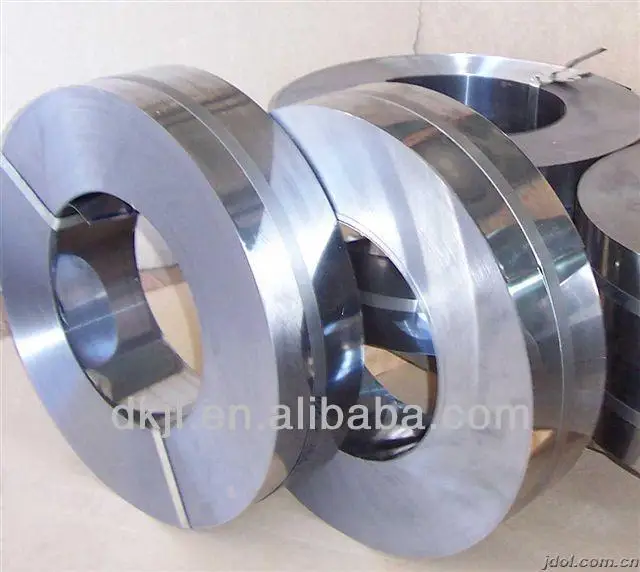

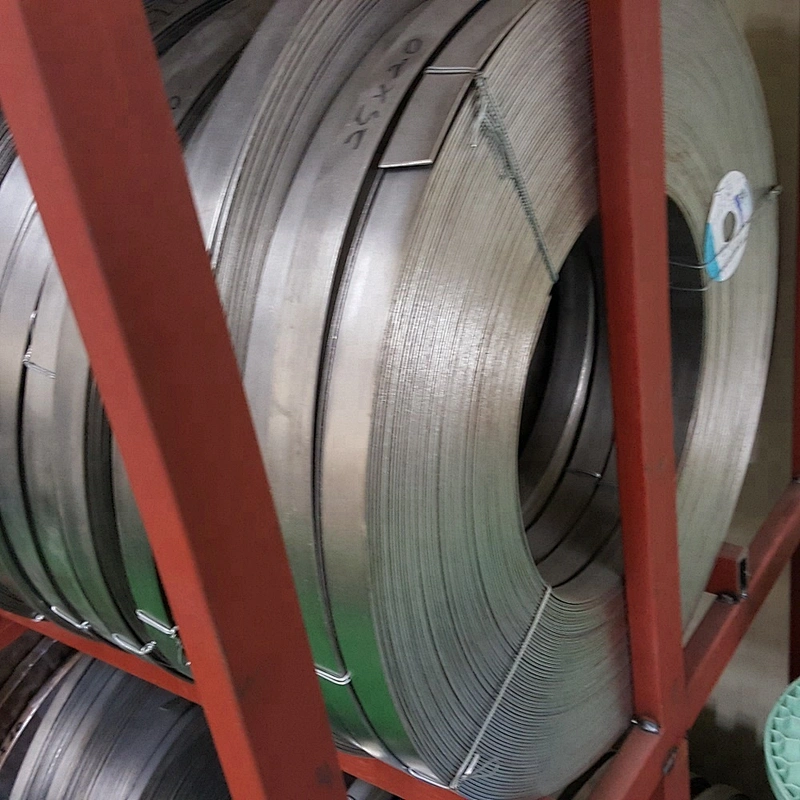

Strips:0.5*5.0-5.0*250mm Bars:D10-100mm
Other Service
1.fine after-sale services
2.small order accepted
3.samples available
Model: Cr20Ni80,Cr15Ni60, Cr20Ni35, Cr20Ni30, Cr25Ni20
Specification:
Item | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 |
Main chemical Composition % | Ni | Rest | Rest | 55.0-61.0 | 34.0-37.0 | 30.0-34.0 |
Cr | 20.0-23.0 | 28.0-31.0 | 15.0-18.0 | 18.0-21.0 | 18.0-21.0 |
Fe | ≤1.0 | ≤1.0 | Rest | Rest | Rest |
Max.continuous service temp.of element (°C) | 1200 | 1250 | 1150 | 1100 | 1100 |
Melting point (approx.) °C | 1400 | 1380 | 1390 | 1390 | 1390 |
Density g/cm3 | 8.40 | 8.10 | 8.20 | 7.90 | 7.90 |
Resistivity μΩ.m,20°C | 1.09 | 1.18 | 1.12 | 1.0 | 1.04 |
Elongation % | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 |
Thermal conductivity KJ/m.h.°C | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 |
Coefficient of linear expansion α×10-6/°C | 18.0 | 17.0 | 17.0 | 19.0 | 19.0 |
Micrographic structure | austenite | austenite | austenite | austenite | austenite |
Magnetic properties | non magnetic | non magnetic | non magnetic | weak magnetic | weak magnetic |

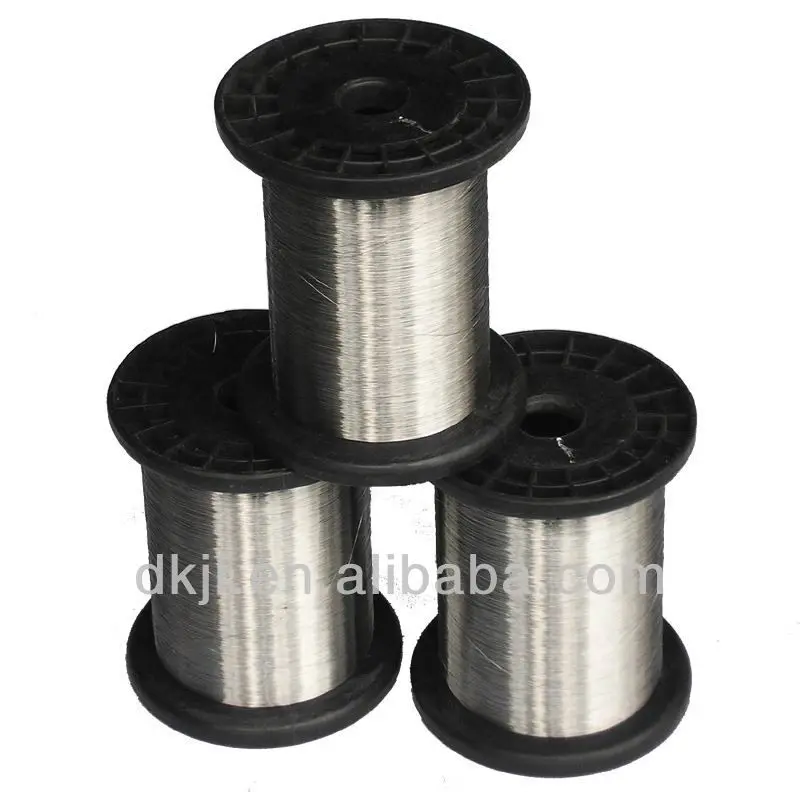

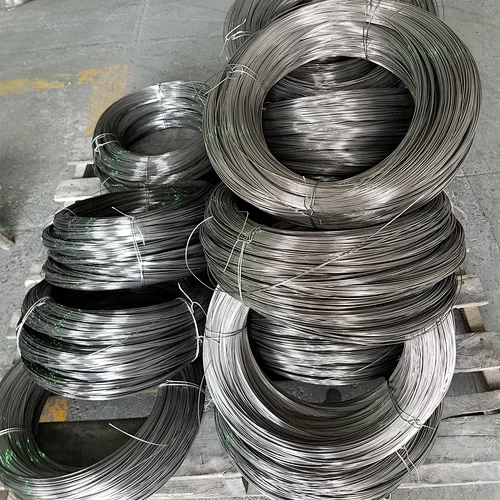

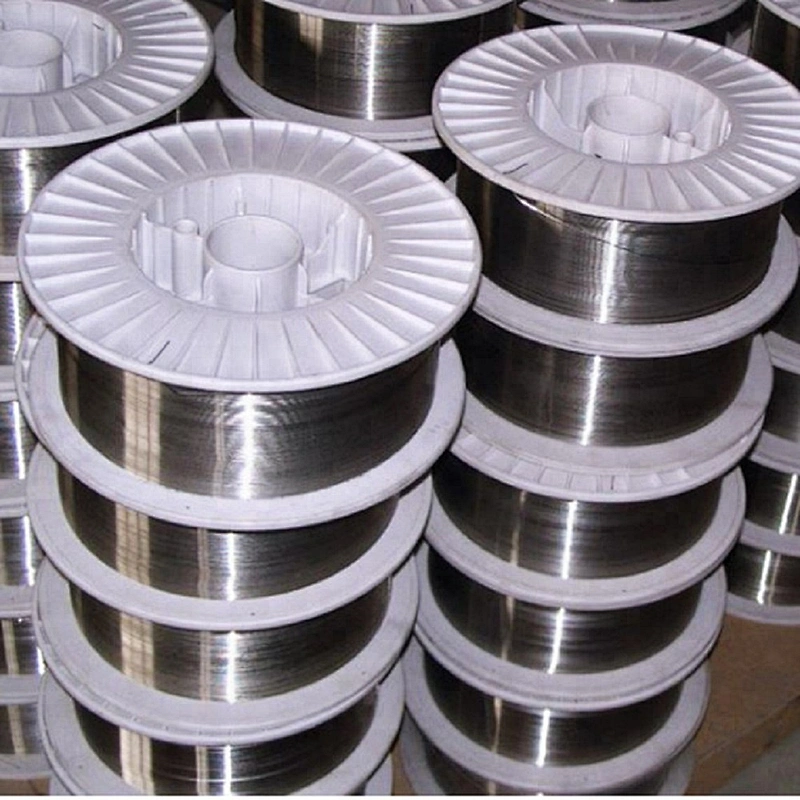

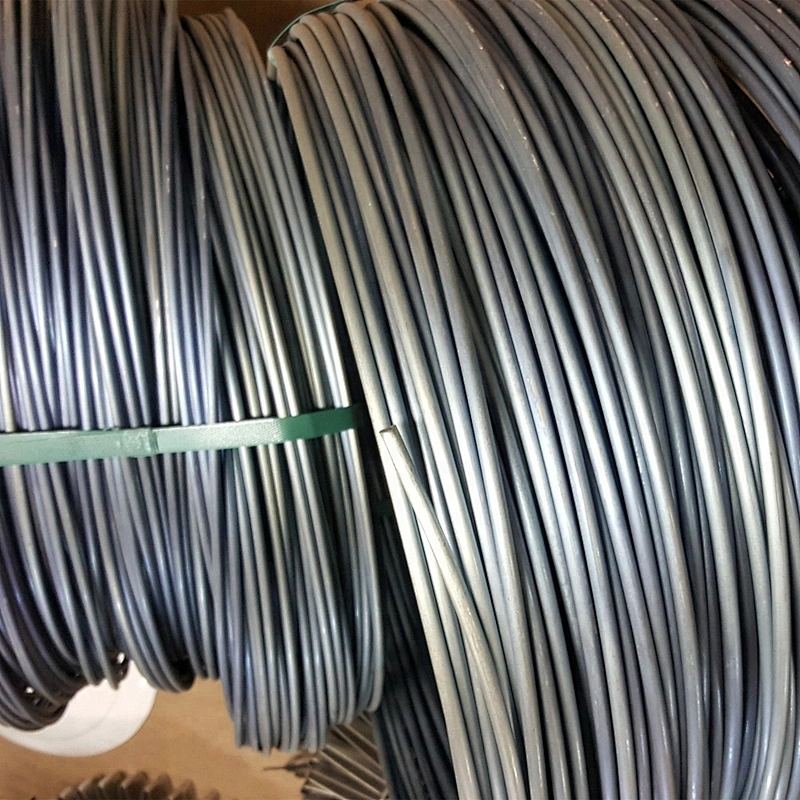

Package of nichrome wire resistance: Goods are supply in coil or on spool, Carton or wooden case in outside as demanded.
Shipping of nichrome wire resistance: By vessel or by train from any Chinese port, Samples can be delivered by International express.
Package pictures of nichrome wire resistance

Our Services
1.Timely response,
Timely response to your inquiry, multiple choice recommendations based on your demand,quickly respond mails and provide solutions.
2.Free sample
Sample and trial order are accepted for the quality evaluation
3.Strict quality control
Arrange production on time and control quality strictly.
4.Shorter delivery time.
Book the earliest vessel or plane to guarantee the delivery time.
5.Professional Services
Provide all the detailed news and pictures from order to delivery;
Offer relative export documents and original certificate if needed;
Warm and considerable after-sale service
Company Information
DKJL refractories exporting company is one of the most professional suppliers of refractories in China. Our main products are refractory and thermal insulation materials, heating elements, industrial ceramics. They are available in various sizes and shapes. Our products enjoy a good reputation for their excellent quality and service in domestic and international markets.

FAQ
1. How can I get your prompt quotation for nichrome wire resistance?
We can give you reply with quotation quickly if you kindly send the inquiry with following factors of nichrome wire resistance: diameter (or thickness and width), brand name (or working temperature), electrical resistance (Resistivity), application and quantity.
2. What’s the MOQ of the order?
No limit, we can offer the best suggestions and solutions according to your condition.
3. Which payment terms can you accept?
T/T,LC,Western Union,moneygram are available for us.
4. After an order is placed, when to deliver?
15-25days after confirming the order.
5. Does your company accept customization?
We accept OEM service.
6. How to solve the quality problems?
If the products don’t conform to customer’s samples or have quality problems, our company will be responsible to make compensation for it based on enough evidences.
7. What is the HS code?
The HS code is 85169090
8. Is there any cost for the sample?
We provide free sample but don’t bear the freight
