China supplier thermal insulation ceramic fiber paper for kiln
China supplier thermal insulation ceramic fiber paper for kiln
China supplier thermal insulation ceramic fiber paper for kiln
China supplier thermal insulation ceramic fiber paper for kiln
China supplier thermal insulation ceramic fiber paper for kiln
China supplier thermal insulation ceramic fiber paper for kiln
China supplier thermal insulation ceramic fiber paper for kiln

China supplier thermal insulation ceramic fiber paper for kiln

Model NO.:
DKMY-HP
Price:
USD 3.60-7.60 / ton
Delivery:
FOB
Minimum order quantity:
1 ton
Supply Ability:
15 ton / Month
Country of Origin:
QINGDAO PORT
  • Place of Origin:CN;SHN
  • Application:Heat Insulation
  • Grade:HP (High Pure)
  • Density (kg/m³ ):128
  • Width:610mm-1220mm
  • Length:Custom-order
  • Chemical Composition:AL2O3, SIO2
  • Ultimate Strength (≥ MPa):0.65MPa
  • Working Temperature:1260℃
  • Fiber Diameter:3μm-5μm
  • Thermal Conductivity:0.160~0.170 0.170~0.180
  • Shrinkage (1800℉, 3h):≤-3%
  • Brand Name:DKMY
  • Model Number:DKMY-HP

China supplier thermal insulation ceramic fiber paper for kiln

Product Description



Ceramic fiber paper is produced by high purity alumina-silicate fibers with little amount of scientific strictly selected adhesive,which burn out completely in service. Based on the traditional paper making process and paper machinery, it adopts inorganic wet technology.




The advanced production technique ensures the fibers distribute uniformly and the thickness and volume of paper strictly controlled.



The classification temperature for ceramic fiber paper is 1260°C.



Features and Technology



1. Low thermal conductivity

2. Erosion resistance

3. Excellent flexibility
4.low shot content
5.uniform sheet
6.Free of asbestos

7. Good thermal shock resistance

8.Excellent strength and high Tensile strength
9.Electric and sound insulation

10. Tough texture and high compression resistance



Application

It is widely used in high temperature thermal insulation area and very suitable for replacement and insulation of the casting cushion in the building and glass industry. It also can be used as insulation material for electric heating equipment, electro thermal components and automobile.



 ceramic fiber paper  Technical Specifications
DescriptionsSS-COMSS-STDSS-HPSS-HASS-ZA
Classification temperature ()12601260130014001430
Operating temperature ()10001000115012601350
ColorWhiteWhiteWhiteWhiteWhite
Densitykg/m3)260260260260260
320320320320320
Permanent line constringency(%) ( heat preservation 24 hours, Density 320/ m3)-4-3-3-3-3
10001000110012001350
Thermal transmit coefficient ( w/ m.k) ( Density 285 kgs/ m3)0.085(400)0.085(400)0.085(400)0.085(400)0.085(400)
0.132(800) 0.132(800)0.132(800)0.132(800)
0.18010000.132(800)0.180(1000)0.180(1000)0.180(1000)
Tensile Strength ( MPa)0.50.50.50.50.5
The chemistry constitute (%)AL2O344,4546474952553940
AL2O3+SiO296979999-
AL2O3+SiO2+ZrO2----99
ZrO2----15-17
Fe2O3<1.2<1.00.20.20.2
Na2o+K2O≤0.5≤0.50.20.20.2
Dimensions (mm)600×400×1050900×600×2050 Other specifications according to the customer request.

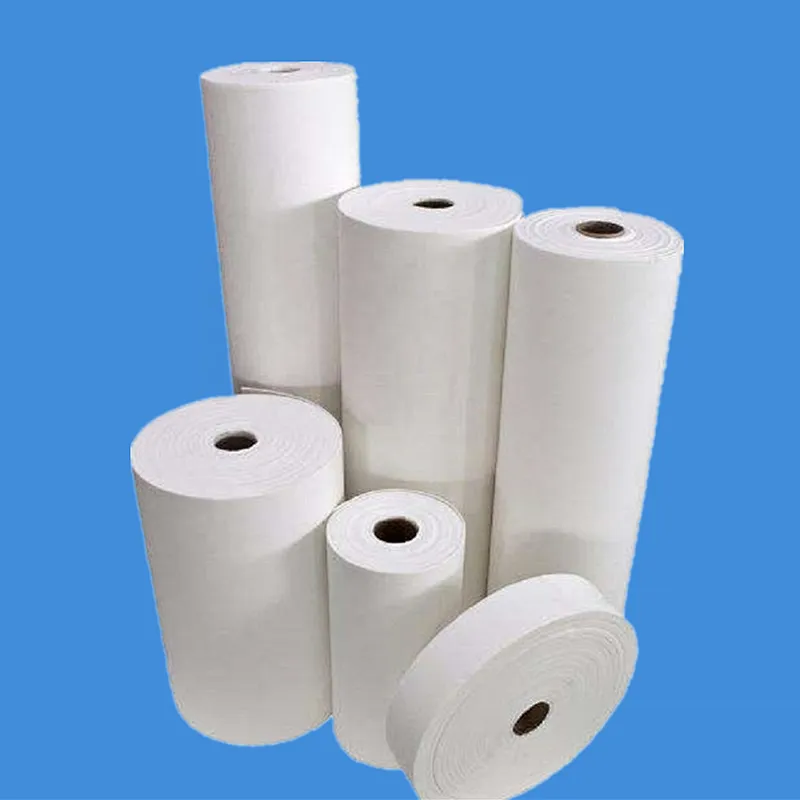

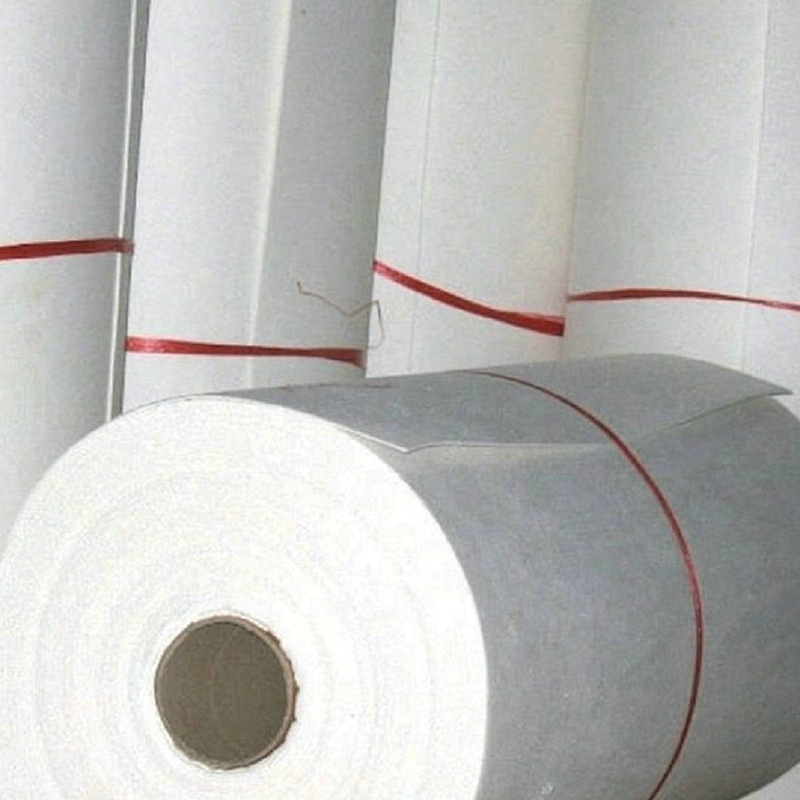

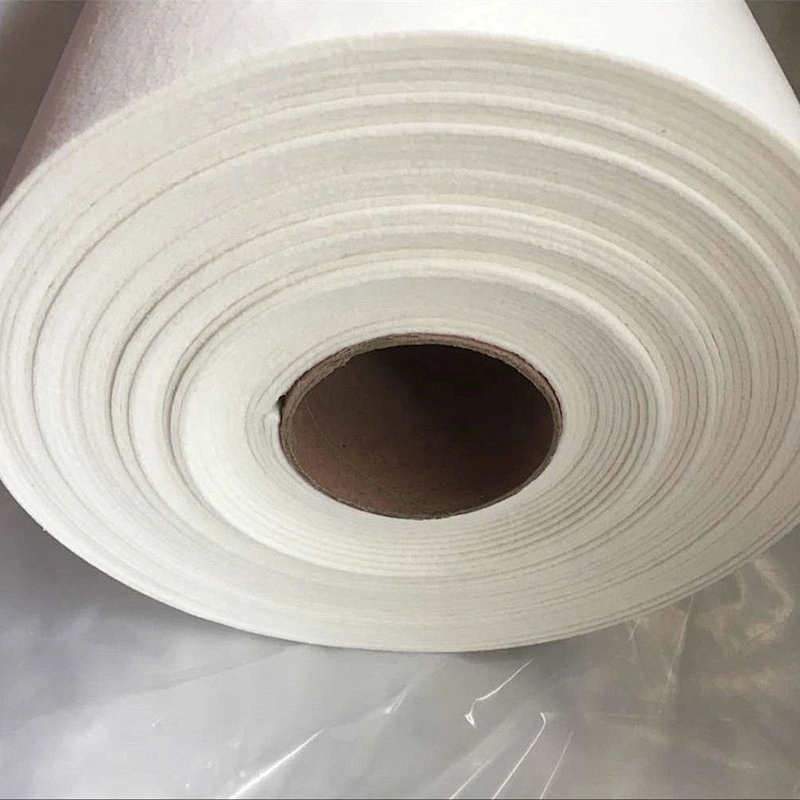

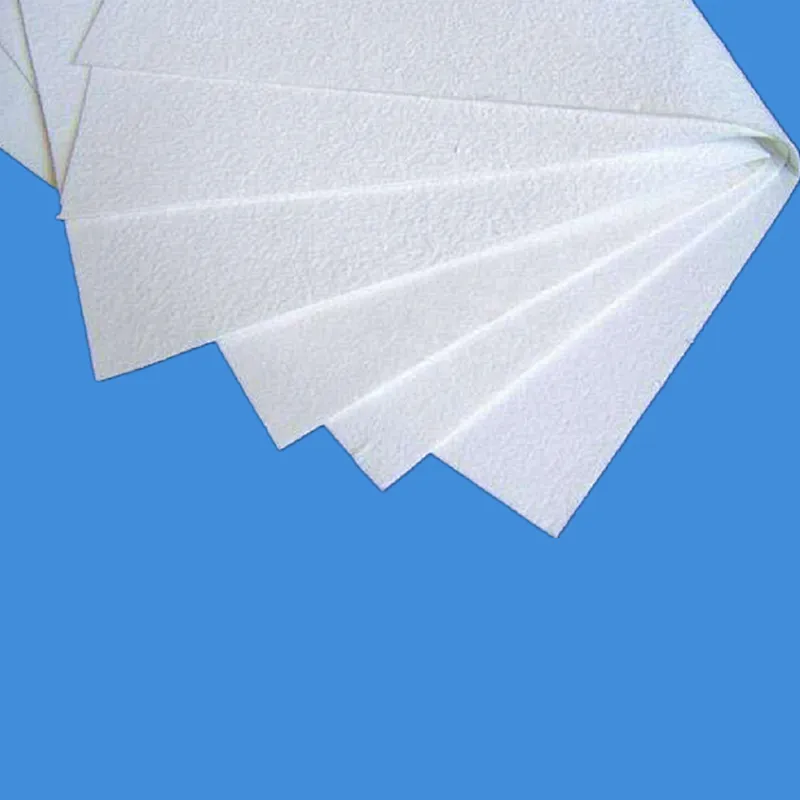

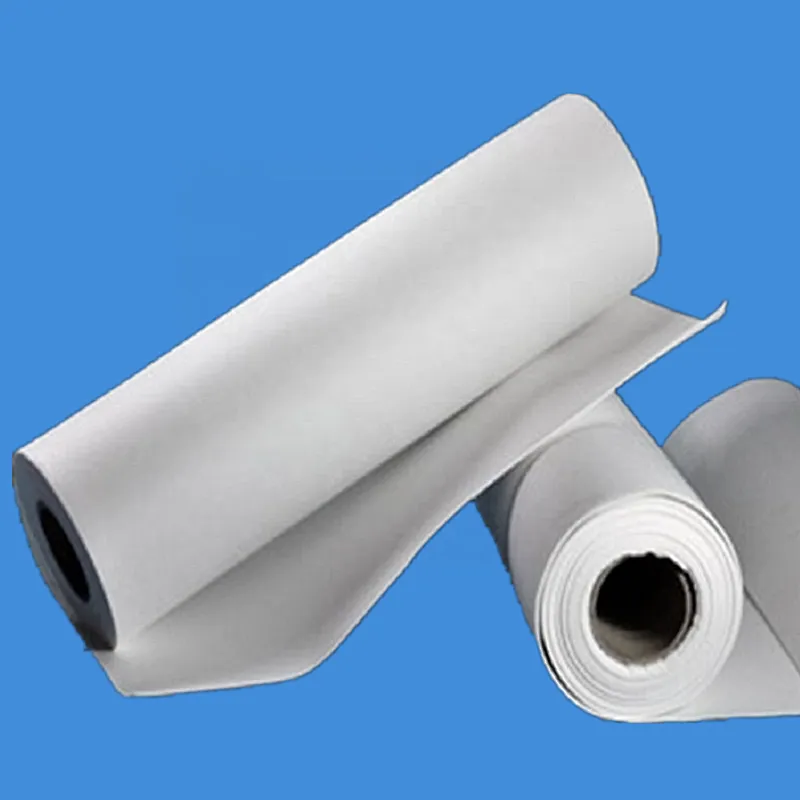

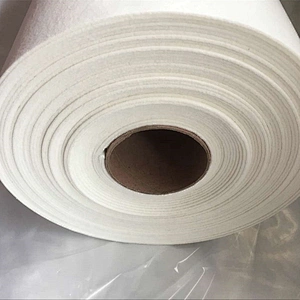

Pictures of ceramic fiber paper
ceramic fiber paper.jpg


Packaging & Shipping



Packing of ceramic fiber paper : Carton with plastic bags inside.

Shipping: By vessel or by train from any Chinese port,

               Samples can be delivered by International express.

972461590_969

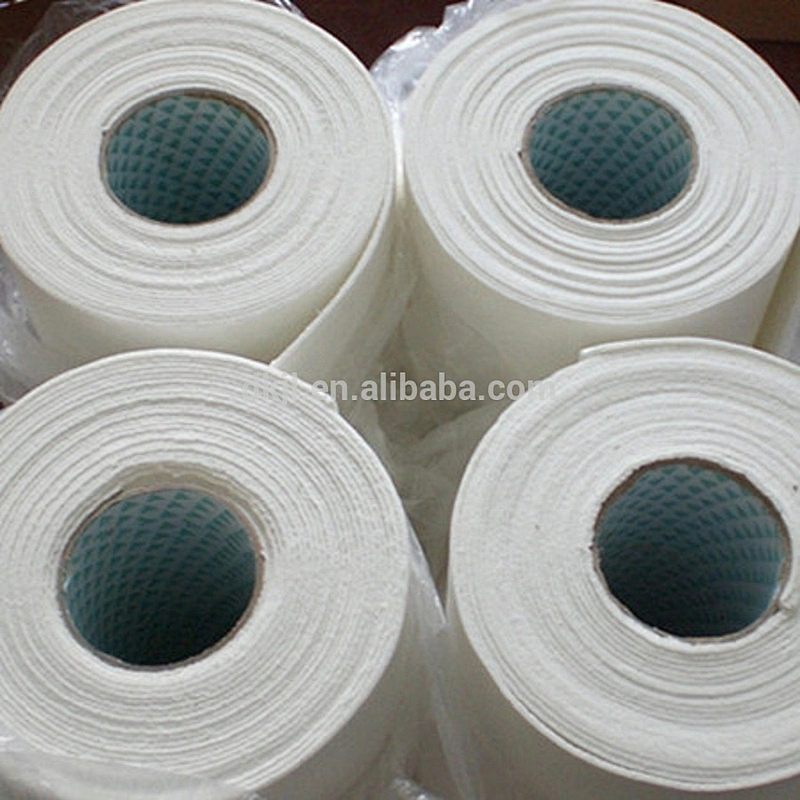

Package pictures of ceramic fiber paper



ceramic fiber paper.jpg



Our Services

1. Timely response,

 Timely response to your inquiry, multiple choice recommendations based on your demand, quickly respond mails and provide solutions.



2. Free sample

 Sample and trial order are accepted for the quality evaluation.



3. Strict quality control

 Arrange production on time and control quality strictly.



4. Shorter delivery time.

 Book the earliest vessel or plane to guarantee the delivery time.



5. Professional Services

 Provide all the detailed news and pictures from order to delivery;

 Offer relative export documents and original certificate if needed;

 Warm and considerable after-sale service.



Company Information

DKJL refractories exporting company is one of the most professional suppliers of refractories in China. Our main products are refractory and thermal insulation materials, heating elements, and industrial ceramics. They are available in various sizes and shapes. Our products enjoy a good reputation for their excellent quality and service in domestic and international markets.

paste-pic-dp_uuid_i9deo



FAQ





1. How can I get your prompt quotation for ceramic fiber paper ?

We can give you reply with quotation quickly if you kindly send the inquiry with following factors: service temperature, maximum working temperature, bulk density, dimension (length*width*thickness), and quantity.



2.What's the MOQ of trial order?
No limit, we can offer the best suggestions and solutions according to your requirement.





3. Which payment terms can you accept?
T/T, LC, Western Union, MoneyGram are all available for us.



4. After an order is placed, when to deliver?
15-25days after confirming the order.

5. Does your company accept customization?
We accept OEM service.

6. How to solve the quality problems?
If the products don’t conform to customer samples or have quality problems, our company will be responsible to make compensation for it based on enough evidences.



7. What is the HS code?

The HS code is 68061010
