- Place of Origin:CN;SHN
- Application:Heat Insulation
- Grade:HP (High Pure)
- Density (kg/m³ ):160
- Width:610mm-1220mm
- Length:10m-60m
- Chemical Composition:AL2O3+SIO2
- Ultimate Strength (≥ MPa):0.65
- Working Temperature:1050
- Fiber Diameter:3-5um
- Thermal Conductivity:200 C 0.075-0.085
- Shrinkage (1800℉, 3h):3.0(24hours)
- Brand Name:DKJL
- Model Number:1260 STD
High pure industrial soundproof thermal insulation ceramic fiber paper
Thermal insulation paper is produced by high purity alumina-silicate fibers with little amount of scientific strictly selected adhesive,which burn out completely in service. Based on the traditional paper making process and paper machinery, it adopts inorganic wet technology.
The advanced production technique ensures the fibers distribute uniformly and the thickness and volume of paper strictly controlled.
The classification temperature for ceramic fiber paper is 1260°C.
Features and Technology
1. Low thermal conductivity
2. Erosion resistance
3. Excellent flexibility
4.low shot content
5.uniform sheet
6.Free of asbestos
7. Good thermal shock resistance
8.Excellent strength and high Tensile strength
9.Electric and sound insulation
10. Tough texture and high compression resistance
Application
It is widely used in high temperature thermal insulation area and very suitable for replacement and insulation of the casting cushion in the building and glass industry. It also can be used as insulation material for electric heating equipment, electro thermal components and automobile.
thermal insulation paper Technical Specifications
| Descriptions | SS-COM | SS-STD | SS-HP | SS-HA | SS-ZA | |
| Classification temperature () | 1260 | 1260 | 1300 | 1400 | 1430 | |
| Operating temperature () | 1000 | 1000 | 1150 | 1260 | 1350 | |
| Color | White | White | White | White | White | |
| Densitykg/m3) | 260 | 260 | 260 | 260 | 260 | |
| 320 | 320 | 320 | 320 | 320 | ||
| Permanent line constringency(%) ( heat preservation 24 hours, Density 320/ m3) | -4 | -3 | -3 | -3 | -3 | |
| 1000 | 1000 | 1100 | 1200 | 1350 | ||
| Thermal transmit coefficient ( w/ m.k) ( Density 285 kgs/ m3) | 0.085(400) | 0.085(400) | 0.085(400) | 0.085(400) | 0.085(400) | |
| 0.132(800) | 0.132(800) | 0.132(800) | 0.132(800) | |||
| 0.1801000 | 0.132(800) | 0.180(1000) | 0.180(1000) | 0.180(1000) | ||
| Tensile Strength ( MPa) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |
| The chemistry constitute (%) | AL2O3 | 44,45 | 46 | 4749 | 5255 | 3940 |
| AL2O3+SiO2 | 96 | 97 | 99 | 99 | - | |
| AL2O3+SiO2+ZrO2 | - | - | - | - | 99 | |
| ZrO2 | - | - | - | - | 15-17 | |
| Fe2O3 | <1.2 | <1.0 | 0.2 | 0.2 | 0.2 | |
| Na2o+K2O | ≤0.5 | ≤0.5 | 0.2 | 0.2 | 0.2 | |
| Dimensions (mm) | 600×400×1050900×600×2050 Other specifications according to the customer request. | |||||
Packing of thermal insulation paper: Carton with plastic bags inside.
Shipping of thermal insulation paper: By vessel or by train from any Chinese port, Samples can be delivered by International express.

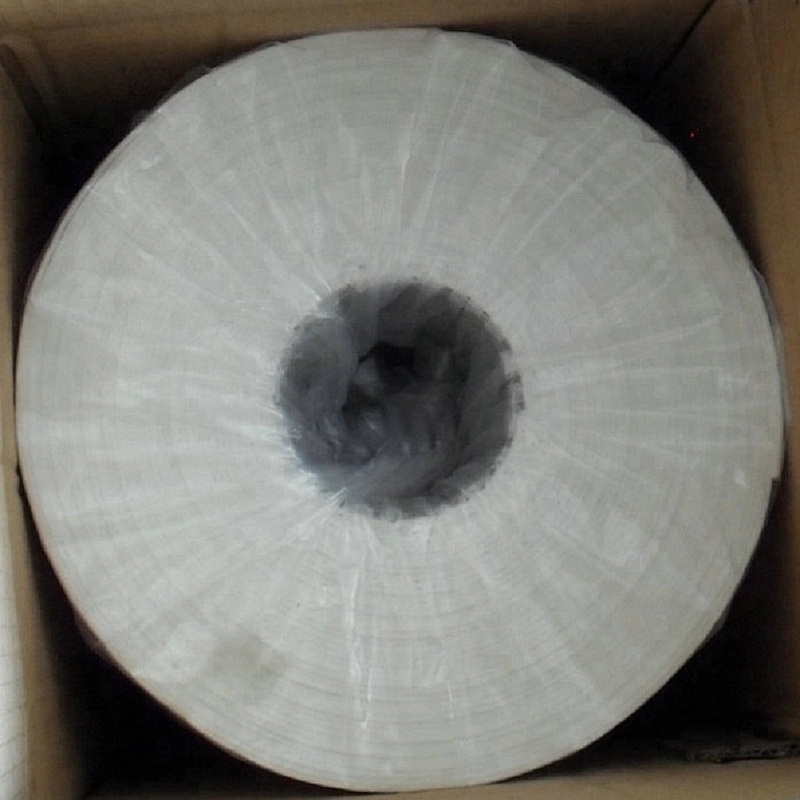

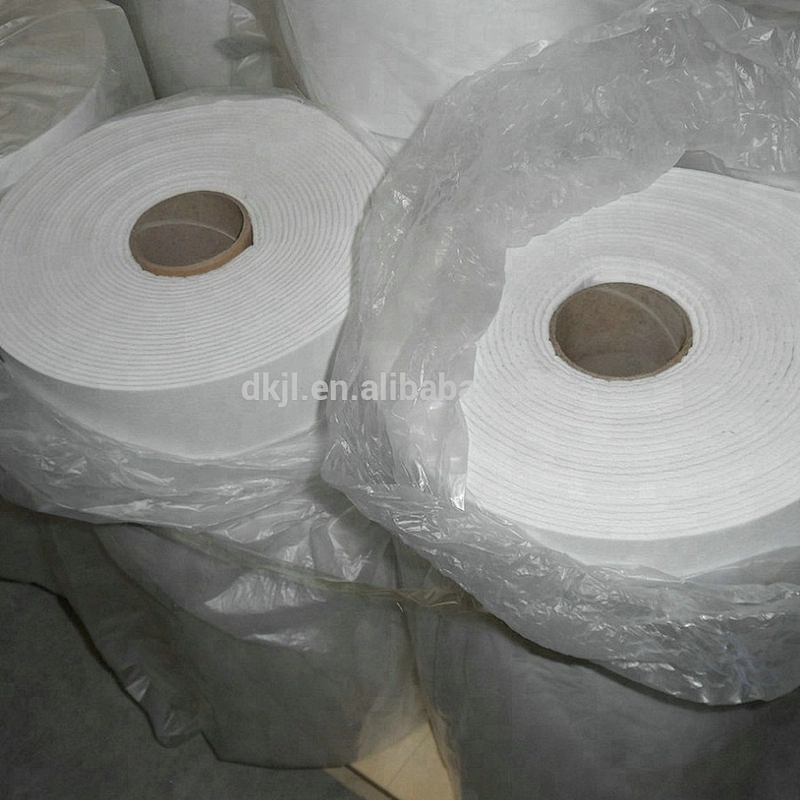

Package pictures of thermal insulation paper
1. Timely response,
Timely response to your inquiry, multiple choice recommendations based on your demand, quickly respond mails and provide solutions.
2. sample evaluation
Sample and trial order are accepted for the quality evaluation.
3. Strict quality control
Arrange production on time and control quality strictly.
4. Shorter delivery time.
Book the earliest vessel or plane to guarantee the delivery time.
5. Professional Services
Provide all the detailed news and pictures from order to delivery;
Offer relative export documents and original certificate if needed;
Warm and considerable after-sale service.
DKJL refractories exporting company is one of the most professional suppliers of refractories in China. Our main products are refractory and thermal insulation materials, heating elements, and industrial ceramics. They are available in various sizes and shapes. Our products enjoy a good reputation for their excellent quality and service in domestic and international markets.
1. How can I get your prompt quotation for thermal insulation paper?
We can give you reply with quotation quickly if you kindly send the inquiry with following factors: service temperature, maximum working temperature, bulk density, dimension (length*width*thickness), and quantity.
2.What's the MOQ of trial order?
No limit, we can offer the best suggestions and solutions according to your requirement.
3. Which payment terms can you accept?
T/T, LC, Western Union, MoneyGram are all available for us.
4. After an order is placed, when to deliver?
15-25days after confirming the order.
5. Does your company accept customization?
We accept OEM service.
6. How to solve the quality problems?
If the products don’t conform to customer samples or have quality problems, our company will be responsible to make compensation for it based on enough evidences.
7. What is the HS code?
The HS code is 68061010
