Factory Price U Type Electric Mosi2 Heater Rod Heating Element for Furnace
Factory Price U Type Electric Mosi2 Heater Rod Heating Element for Furnace
Factory Price U Type Electric Mosi2 Heater Rod Heating Element for Furnace
Factory Price U Type Electric Mosi2 Heater Rod Heating Element for Furnace
Factory Price U Type Electric Mosi2 Heater Rod Heating Element for Furnace
Factory Price U Type Electric Mosi2 Heater Rod Heating Element for Furnace
Factory Price U Type Electric Mosi2 Heater Rod Heating Element for Furnace
Factory Price U Type Electric Mosi2 Heater Rod Heating Element for Furnace
Factory Price U Type Electric Mosi2 Heater Rod Heating Element for Furnace
Factory Price U Type Electric Mosi2 Heater Rod Heating Element for Furnace
Factory Price U Type Electric Mosi2 Heater Rod Heating Element for Furnace
Factory Price U Type Electric Mosi2 Heater Rod Heating Element for Furnace
Factory Price U Type Electric Mosi2 Heater Rod Heating Element for Furnace

Factory Price U Type Electric Mosi2 Heater Rod Heating Element for Furnace

Price:
USD 1.00-98.00 / pieces
Delivery:
FOB
Minimum order quantity:
10 pieces
Supply Ability:
500 pieces / Week
Country of Origin:
Any China Port
Quantity:
  • Applicable Industries:Building Material Shops
  • Applicable Industries:Machinery Repair Shops
  • Applicable Industries:Manufacturing Plant
  • Applicable Industries:Food & Beverage Factory
  • Applicable Industries:Restaurant
  • Applicable Industries:Construction works
  • Applicable Industries:Energy & Mining
  • Applicable Industries:Food & Beverage Shops
  • After Warranty Service:Online support
  • Local Service Location:None
  • Showroom Location:None
  • Condition:New
  • Power Source:Electric
  • Place of Origin:CN;SHN
  • Warranty:1 year
  • After-sales Service Provided:Online support
  • Key Selling Points:Long Service Life
  • Brand Name:DKJL
  • Dimension(L*W*H):Customizable
  • Weight:All depends
  • Voltage:Depends
  • Certification:CE ROHS
  • Working Temperature Range:1800 ℃
  • Type:Furnace Heater

Factory Price U Type Electric Mosi2 Heater Rod Heating Element for Furnace


Product Description

MoSi2 heating element is a kind of resistance heating element made from Molybdenum Disilicide.
It can be used in air and various gases environments. Working temperature of MoSi2 heating element is 1300C to 1800C. It has the characteristics of high temperature resistance, oxidation

(Hot zone dia / Cold zone dia)

3/6mm, 4/9mm, 6/12mm, 9/18mm, 12/24mm.



MoSi2 Heating Element Chemical property


It must be pointed out is that the MoSi2 heating element cannot be used in the temperature between 400℃ to 700 ℃ for long time. Otherwise, the element will be pulverized because of the strong low-temperature oxidation.



Resistance characters

MoSi2 heating element have good resistance characteristic, so it is an ideal heating material

to replace traditional heating elements.



At room temperature, its resistivity is very low, with the increase of temperature, the resistance

increases sharply. The advantages of heating up fast and low power consumption are obvious.



In normal operating circumstances, the resistance of the element is constant, so the old and new

components can be mixed.



Physics characters

Bulk density

Bending strength

Hardness

Apparent porosity

Drawing water rate

Thermal elongation rate

5.6~5.8g/cm3

20MPa(20℃)

(hv)570kg/mm²

0.5~2.0%

0.5%

4%



Recommend surface load:

Furnace Temp(°c)

1400

1500

1600

1650

1700

Surface load of hot zone(W/cm²)

<18

<15

<12

<10

<8





Atmosphere influence on the MoSi2 heater’s operating temperature

Atmosphere

The max element temperature(℃)



1700type

1800type

Air

1700

1800

N2

1600

1700

He  Ar  Ne  Argon, Helium

1600

1700

Dry Hydrogen(dew point) -80℃

1150

1150

Wet Hydrogen(Dew point) -20℃

1450

1450

mixed gas(e . g . 10%CO2, 50%CO, 15% H2)

1600

1700

mixed gas(e . g . 40%CO2 , 20%CO)

1400

1450

Cracked and partly burnt ammonia

1400

1450







MoSi2 Heating Element Application:

Item

name

distinction criterion

specification

Using range

Heating elements

1700  type

Element operating temperature 1700℃ is acceptable

Le Φ

6-12W type/U type/L type/all kinds of hetero type / stripe shape

high temperature electric resistance furnace

1800  type

Element operating temperature 1800℃ is acceptable

1800J type

Element operating temperature≥1800℃

Le Φ

3-12W type

Special,high temperature and high-power electric resistance furnace

1800T type

Element operating  temperature≤1800℃

Le Φ

3-12W type U type

Not oxidized special air high temperature electric resistance furnace











Small furnace (power100KW)

Large furnace(Power 100-500KW)

Furnace temperature

Voltage

furnace temperature℃

Voltage

20-150

1/3Operating Voltage

200-300

1/3Operating Voltage

150-500

2/3Operating Voltage

300-700

2/3Operating Voltage

500-operating temperature

The Whole-Operating Voltage

700-Operating temperature

The whole-Operating Voltage

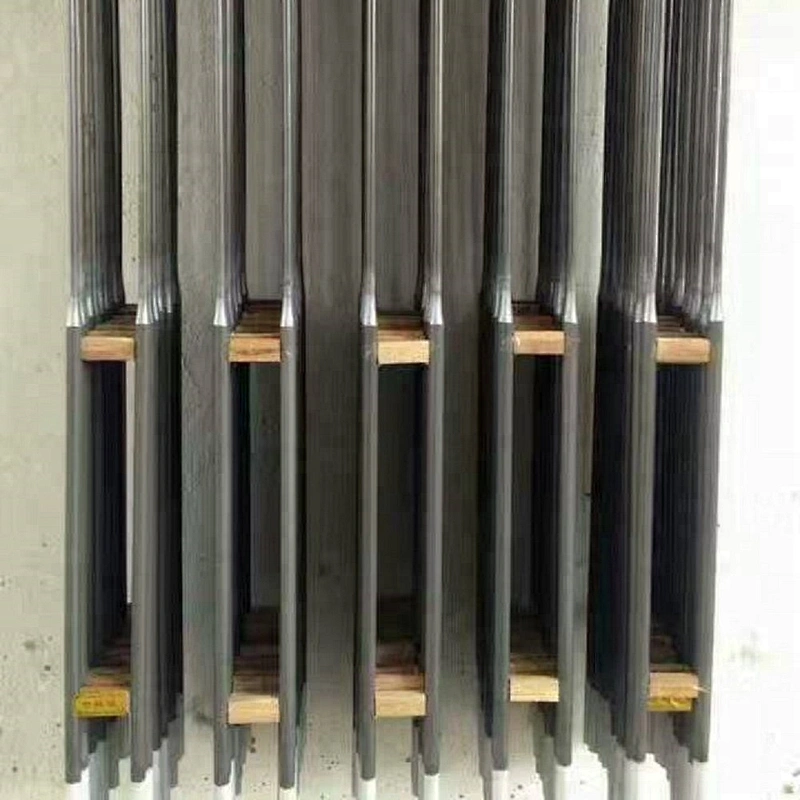

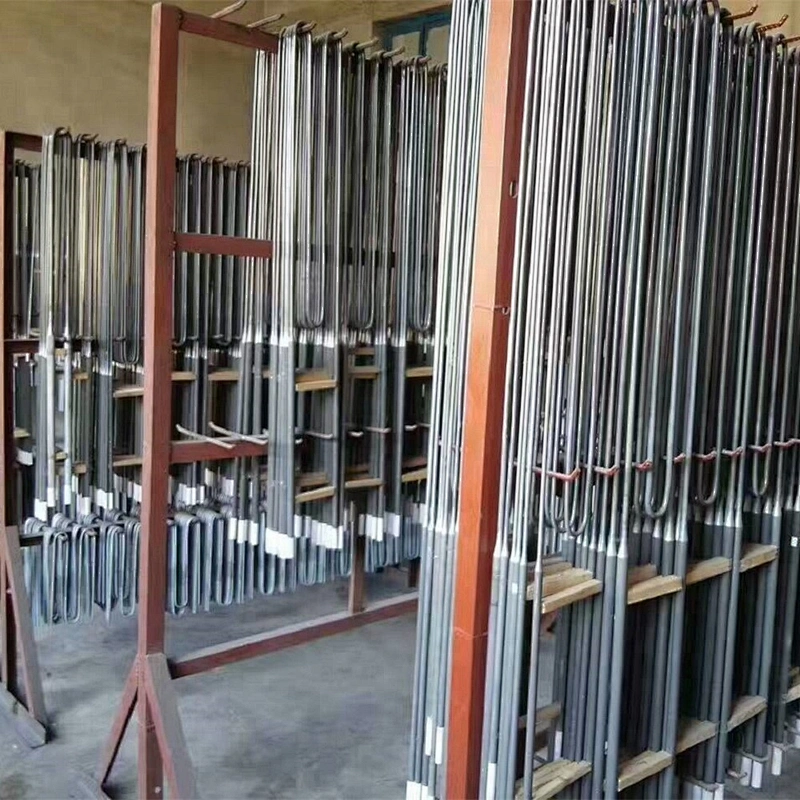

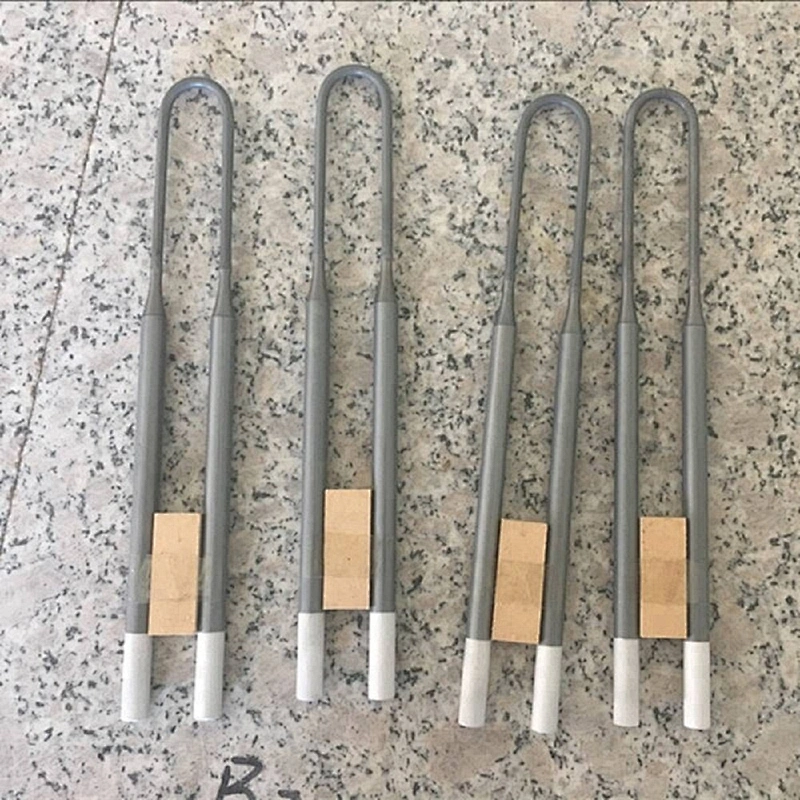

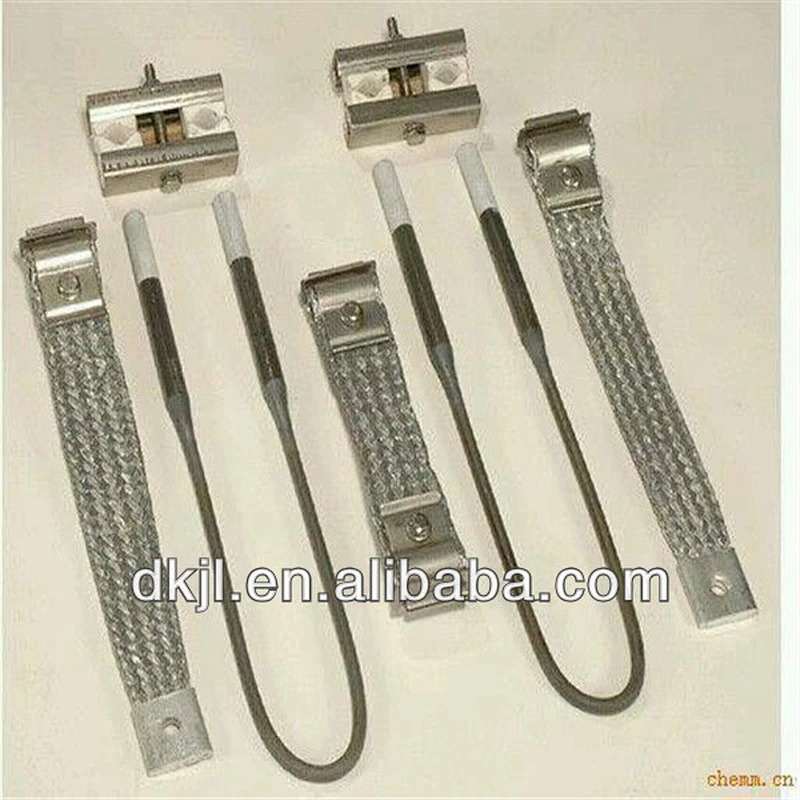

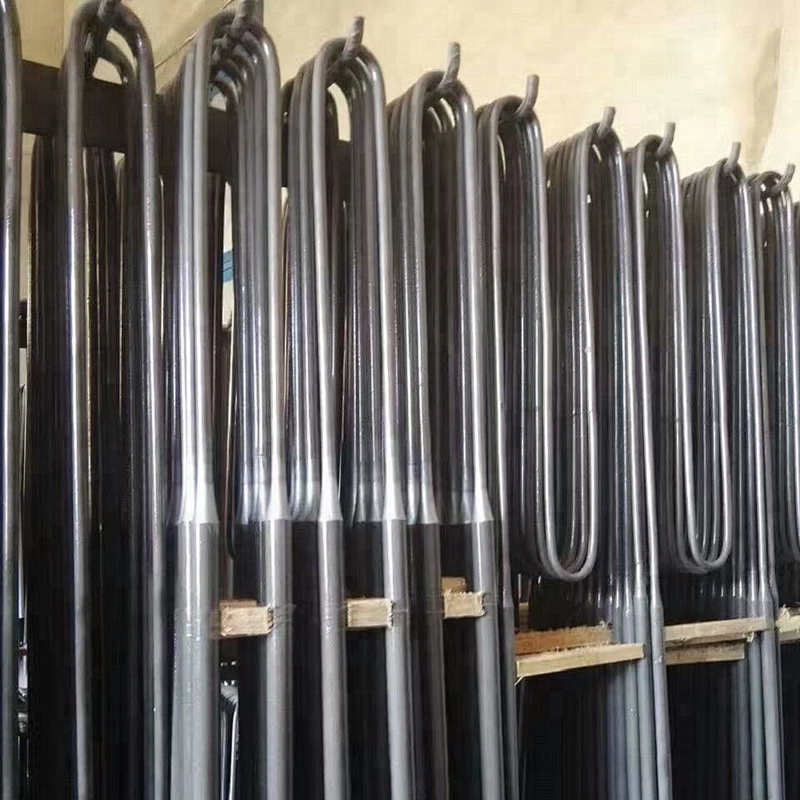

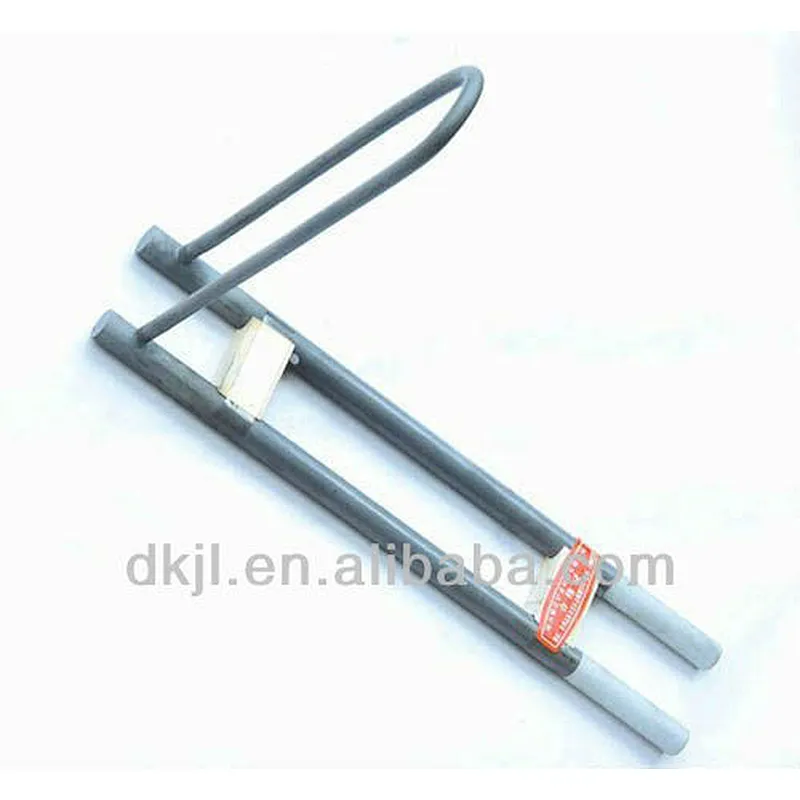

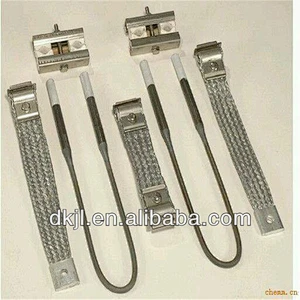

Picture of MoSi2 Heating Element






Packaging & Shipping



Package of MoSi2 Heating Element:  Synthetic wooden case padded with foams

We also received OEM service; the package can be designed according to your requirements.



Shipping of MoSi2 Heating Element: By vessel or by plane from any Chinese port, Samples can be

delivered by International express.




Package pictures of mosi2 heating element





Our Services



1. Timely response,

 Timely response to your inquiry, multiple choice recommendations based on your demand,

 quickly respond mails and provide solutions.



2. Free sample

 MoSi2 Heating Elements Sample and trial order is accepted for the quality evaluation.



3. Strict quality control

 Arrange production on time and control quality strictly.



4. Shorter delivery time.

 Book the earliest vessel or plane to guarantee the delivery time.



 5. Professional Services

 Provide all the detailed news and pictures from order to delivery;

Offer relative export documents and original certificate if needed;

Warm and considerable after-sale service





Company Information



DKJL refractories exporting company is one of the most professional suppliers of refractories in

China. Our main products are refractory and thermal insulation materials, heating elements, and

industrial ceramics. They are available in various sizes and shapes. Our products enjoy a good

reputation for their excellent quality and service in domestic and international markets.








FAQ



1. How can I get your prompt quotation for mosi2 heating elemen?

We can give you reply with quotation quickly if you kindly send the inquiry with following factors:

1) Cold zone length(Lu, mmand diameter;

2) Hot zone length (Le, mmand diameter;

3) Shank Spacing(A, mm): Length of the connector (bridge length);

4) Total length;

5) Mosi2 working temperature: 1700 or 1800 Celsius;

6) Power;

7) Quantity

We would be very appreciated if you can provide drawings.



2.What's the MOQ of the order?
No limit, we can offer the best suggestions and solutions according to your condition.



3. Which payment terms can you accept?
T/T,LC,Western Union,moneygram are available for us.



4. After an order is placed, when to delivery?
15-25days after confirming the order.



5. Does your company accept customization?
We accept OEM service.



6. How to solve the quality problems?
If the products dont conform to customer’s samples or have quality problems, our company will be

 responsible to make compensation for it based on enough evidence.



7. What is the HS code?

The HS code i84169000



8. Is there any cost for the sample?

We provide free sample but don't bear the freight
