Hot sale silicon molybdenum industrial Mosi2 heater for oven
Electric heating element is a kind of resistance heating element made from Molybdenum Disilicide. It can be used in air and various gases environments. Working temperature of MoSi2 heating element is 1300C to 1800C. It has the characteristics of high temperature resistance, oxidation resistance, corrosion resistance, heating fast, long service life, high temperature low distortion, easy installation and maintenance, excellent chemical stability, which has been widely used as heaters in high temperature furnaces and kilns of metallurgy, glass, ceramic refractory, crystal electronic device, industrial furnace manufacture and chemical industry field.
Types of industrial heater
1. According to temperature: 1700C and 1800C

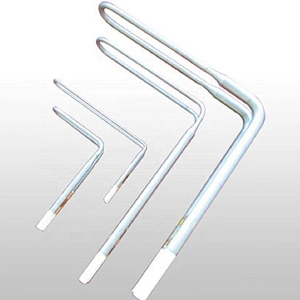

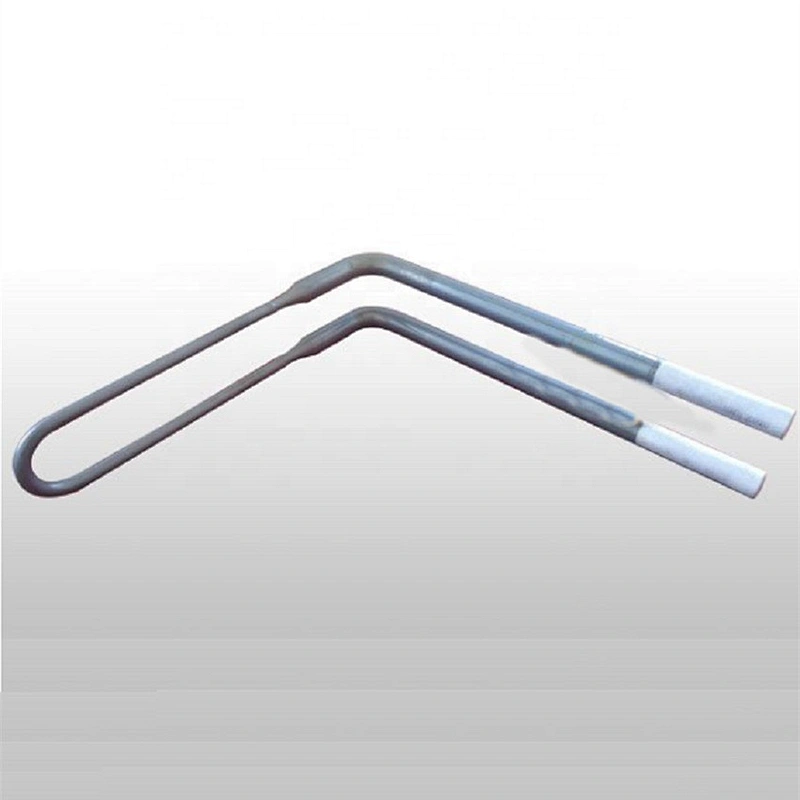

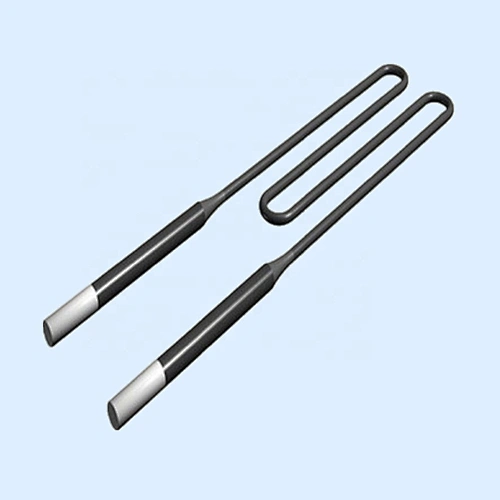

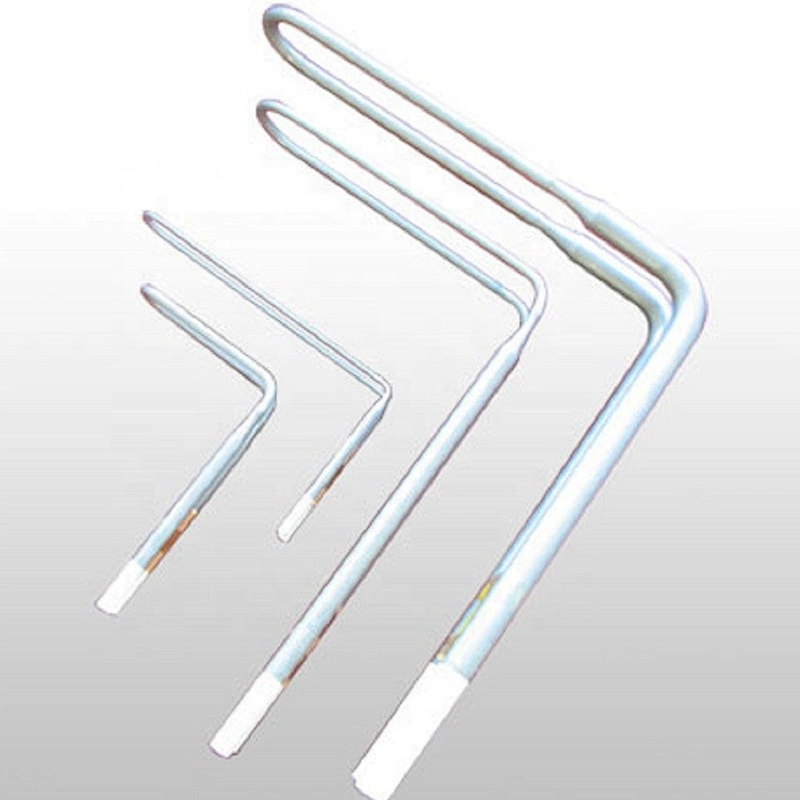

2. According to Shape: U, W, I, UL, WL, Spiral types.
industrial heater standard size
(Hot zone dia / Cold zone dia)
3/6mm, 4/9mm, 6/12mm, 9/18mm, 12/24mm.
Physics characters of industrial heater
Drawing water rate
Thermal elongation rate
Recommend surface load:
Surface load of hot zone(W/cm²)
Atmosphere influence on industrial heateroperating temperature
The max element temperature(℃)
He Ar Ne Argon, Helium
Dry Hydrogen(dew point) -80℃
Wet Hydrogen(Dew point) -20℃
mixed gas(e . g . 10%CO2, 50%CO, 15% H2)
mixed gas(e . g . 40%CO2 , 20%CO)
Cracked and partly burnt ammonia
Installation of industrial heater
) Vertically hanging Under normal temperature, MoSi2 element is very brittleness, while under high temperature, it is plasticity, so the better way to install U Shape element is to hang it vertically from the furnace top through the support clamping chuck. The aim of such way is to avoid putting the mechanical stress directly to the element heat-generating end; otherwise the element will easily be broken.
2) Support clamp Support clamp are applied to 9/18 and 6/12 two kinds of elements respectively. The support clamp supports the whole weight of the element and the position of the element is also determined by it, therefore, it must be installed carefully to assure the element vertically hung. In order to prevent the element from being over heated locally, the taper part of the element lower end must put into the furnace chamber.
high temperature heating elements Application:
Element operating temperature 1700℃ is acceptable
6-12W type/U type/L type/all kinds of hetero type / stripe shape
high temperature electric resistance furnace
Element operating temperature 1800℃ is acceptable
Element operating temperature≥1800℃
Special,high temperature and high-power electric resistance furnace
Element operating temperature≤1800℃
3-12W type U type
Not oxidized special air high temperature electric resistance furnace
Small furnace (power100KW)
Large furnace(Power 100-500KW)
The Whole-Operating Voltage
The whole-Operating Voltage
It should not take a long time when shifting gears. Otherwise it easily causes the electric current
shocking to break the electrical equipment.
If there is a damaged part found in the process of operation, the first thing you should do is determine its location and get all the combination elements ready. After that, you should separate the wire the damaged element clipped to from the screw which is connected to the generatrix. Then remove the remained refractory wool and pull out the refractory stoppers. Insert the new combination elements into the furnace from its roof. Connect all the wires and get the refractory wool filled, and finally raise the temperature.

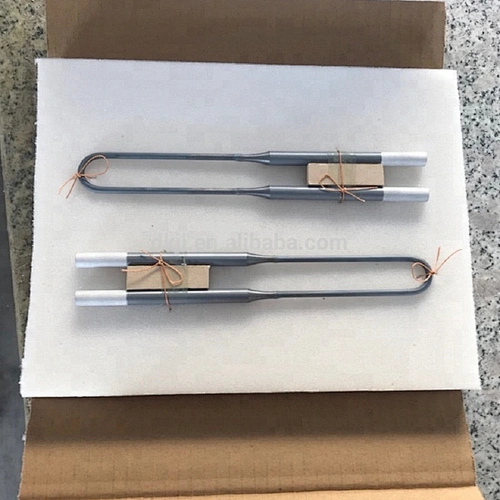

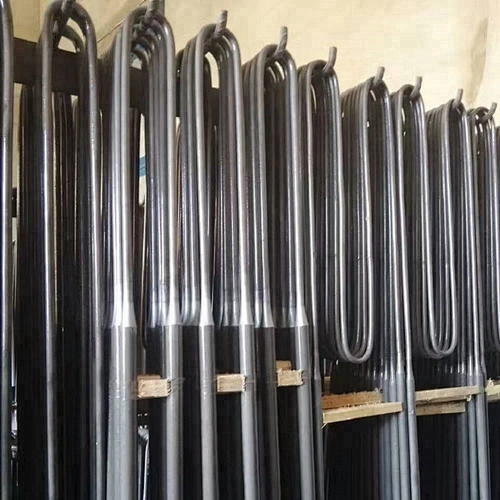

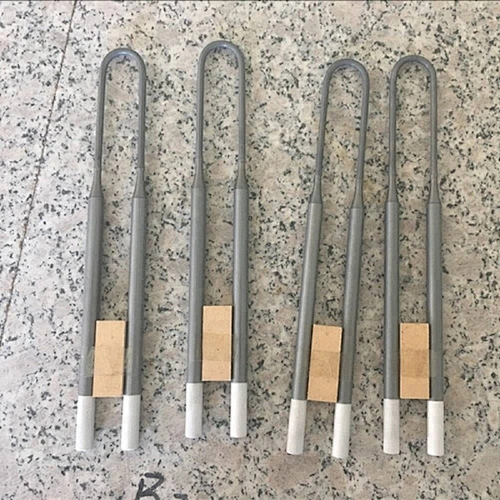

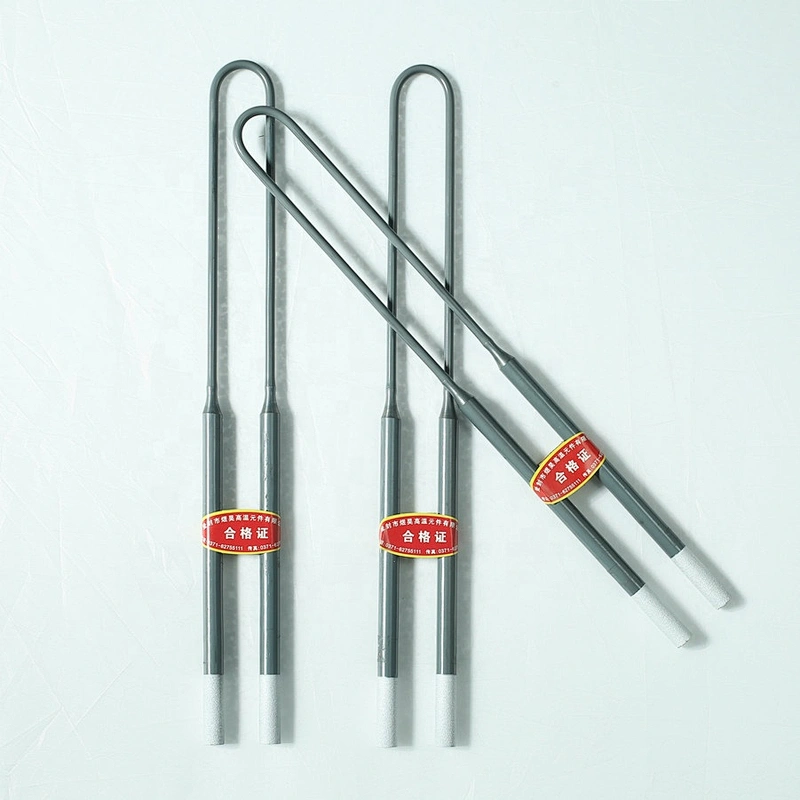

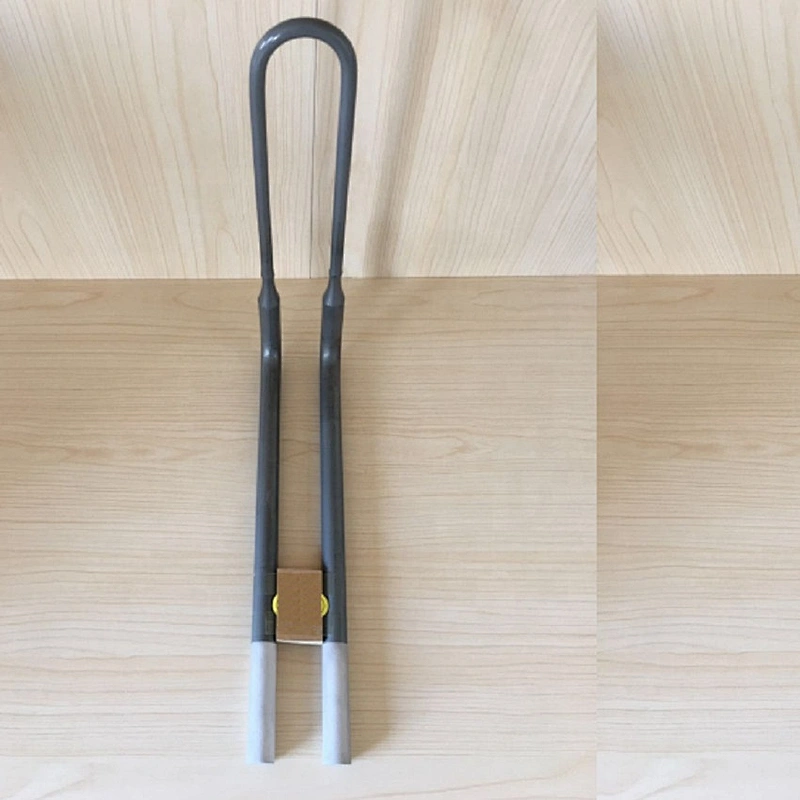

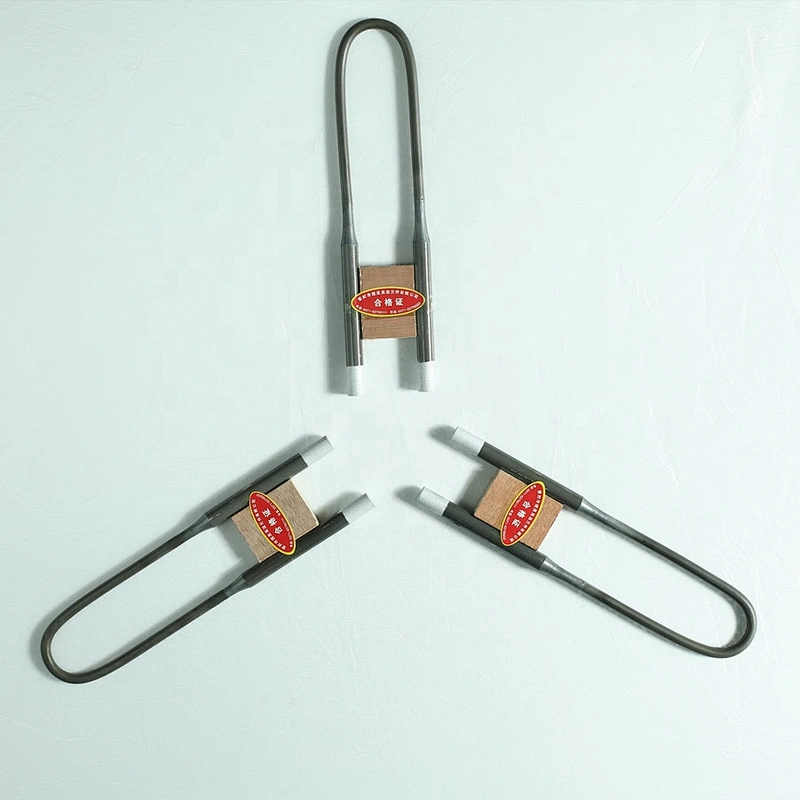

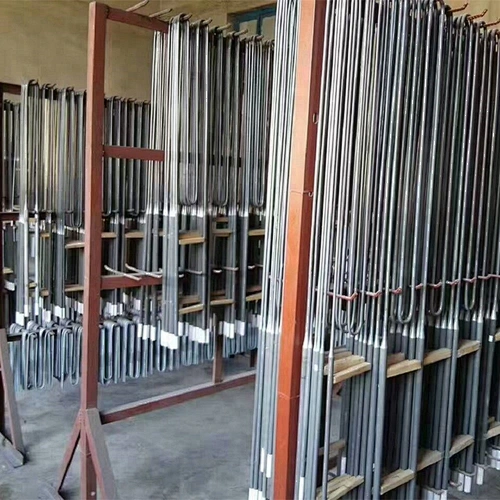

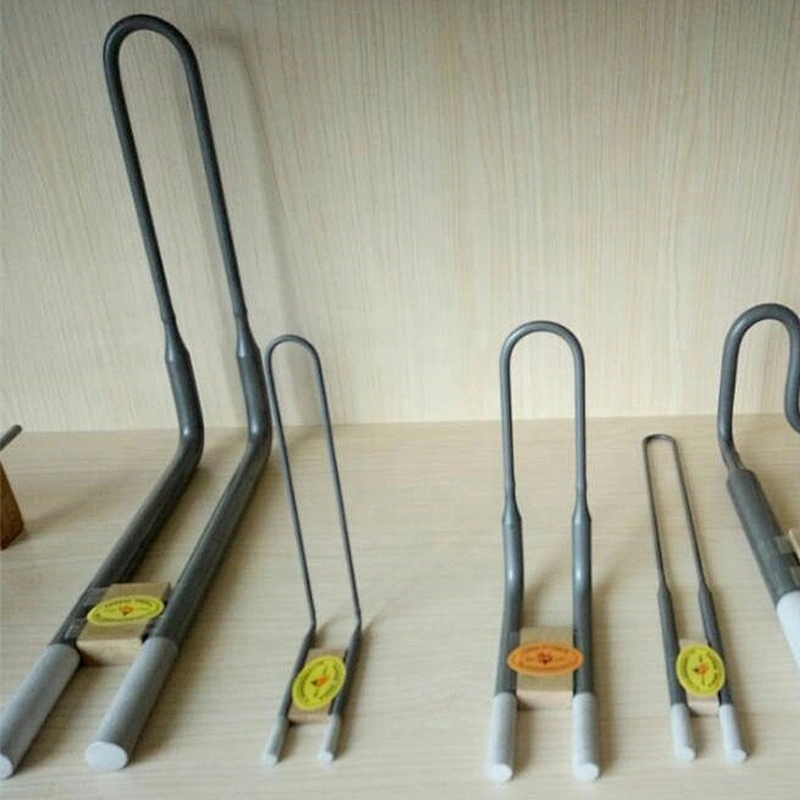

Picture of industrial heater
Packaging & Shipping
Package of industrial heater:Synthetic wooden case padded with foams
We also received OEM service; the package can be designed according to your requirements.
Shipping of industrial heater: By vessel or by plane from any Chinese port, Samples can be delivered by International express.
Package pictures of industrial heater
1. Timely response,
Timely response to your inquiry, multiple choice recommendations based on your demand, quickly respond mails and provide solutions.
2. Sample evaluation
industrial heater sample and trial order is accepted for the quality evaluation.
3. Strict quality control
Arrange production on time and control quality strictly.
4. Shorter delivery time.
Book the earliest vessel or plane to guarantee the delivery time.
5. Professional Services
Provide all the detailed news and pictures from order to delivery;
Offer relative export documents and original certificate if needed;
Warm and considerable after-sale service
DKJL refractories exporting company is one of the most professional suppliers of refractories in China. Our main products are refractory and thermal insulation materials, heating elements, and industrial ceramics. They are available in various sizes and shapes. Our products enjoy a good reputation for their excellent quality and service in domestic and international markets.
1. How can I get your prompt quotation for industrial heater?
We can give you reply with quotation quickly if you kindly send the inquiry with following factors: diameter (or thickness and width), brand name (or working temperature), electrical resistance(Resistivity), application and quantity.
2.What's the MOQ of the order? No limit, we can offer the best suggestions and solutions according to your condition.
3. Which payment terms can you accept? T/T,LC,Western Union,moneygram are available for us.
4. After an order is placed, when to deliver? 15-25days after confirming the order.
5. Does your company accept customization? We accept OEM service.
6. How to solve the quality problems? If the products don’t conform to customer’s samples or have quality problems, our company will be
responsible to make compensation for it based on enough evidences.
