Fire resistant 1260 hp bio-soluble ceramic fiber blanket
Fire resistant 1260 hp bio-soluble ceramic fiber blanket
Fire resistant 1260 hp bio-soluble ceramic fiber blanket
Fire resistant 1260 hp bio-soluble ceramic fiber blanket
Fire resistant 1260 hp bio-soluble ceramic fiber blanket
Fire resistant 1260 hp bio-soluble ceramic fiber blanket
Fire resistant 1260 hp bio-soluble ceramic fiber blanket

Fire resistant 1260 hp bio-soluble ceramic fiber blanket

Model NO.:
High Zircon
Price:
USD 8.40-25.90 / roll
Delivery:
FOB
Minimum order quantity:
1 roll
Supply Ability:
20000 roll / Quarter
Country of Origin:
ANY CHINA PORT
  • Grade:HP (High Pure)
  • Application:Liners Of Industrial Furnace
  • Density (kg/m³ ):128
  • Place of Origin:CN
  • Thickness:13/25/50mm
  • Width:610/1220mm
  • Length:7200mm/3600mm
  • Chemical Composition:AL2O3+SIO2
  • Ultimate Strength (≥ MPa):0.04
  • Working Temperature:1300
  • Fiber Diameter:3-5μm
  • Shrinkage (1800 ℉, 3h):24h≤-4
  • Thermal Conductivity:0.09--0.20 W/(m.k)(400-1000C)
  • Model Number:High Zircon
  • Brand Name:DKJL

Fire resistant 1260 hp bio-soluble ceramic fiber blanket



Product Description



Ceramic fiber blanket is made of special ceramic long-fiber that is produced by melting very pure raw materials in double surface needing process.



It also named aluminum silicate fiber blanket, because their main component is aluminum. It’s a new type of fire-resisting and heat-insulating materials with white color and accurate dimension.

This product does not contain any adhesive to ensure their good stability in high temperature or low temperature environment.

Their Classification Temperature: 1050-1600°C.



bio-soluble ceramic fiber blanket Features and advantage



1.Excellent chemical stability

2.Excellent heat stability

3.Excellent pull resisting strength

4.Low heat conductivity

5.Low thermal capacity

6.Excellent heat insulation performance



bio-soluble ceramic fiber blanket Application

1.Industry furnace wall lining

2.Back lining material

3.Fire prevention

4.High-temperature tube heat insulation material

5.Module/folding block processing material

6.Filling and sealing material in high temperature environment.

7.Sound-absorbing/high temperature filtration materials.





bio-soluble ceramic fiber blanket Technical Index

product code

MYTX-PT-02

MYTX-BZ-02

MYTX-GC-02

MYTX-GL-02

MYTX-DG-02

MYTX-HG-02

Heating permanent linear change(%)

950°C×24h≤-4

1000°C×24h≤-4

1100°C×24h≤-4

1200°C×24h≤-4

1250°C×24h≤-4

1350°C×24h≤-4

heat conductivity(An average of 500°C)W/(m.k)





≤0.153







Content of slag(Ø≥0.212mm)(%)





≤15







Pull resisting strength (Thickness25mm)(Mpa)





≥0.04







Theoretical volume density ( kg/m3) kg/m3

96/128

96/128

96/128

96/128

96/128

96/128

Al2O3

≥40

≥43

44-47

51-53

43-45



Al2O3+SiO2

≥95

≥96

≥98

≥99

≥90



Al2O3+SiO2+ZrO2











≥99

ZrO2











≥15

Fe2O3

<0.5

<0.5

≤0.3

≤0.3





Na2O+K2O+Fe2O3

<0.9











Product specification (mm)(customized according to customer demand)

Normal length and width, thickness 6mm-60mm

Packing form

Woven bag or carton

Quality and environment system certification

ISO9001-2008, ISO14001-2004

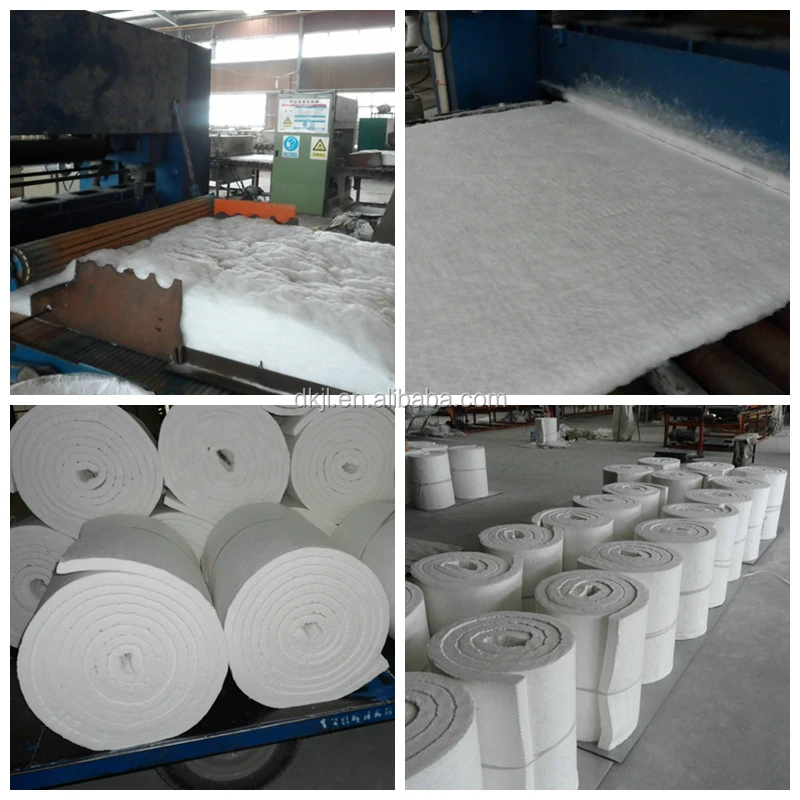

 Pictures of bio-soluble ceramic fiber blanket



Packaging & Shipping



Packing of bio-soluble ceramic fiber blanket: woven bag or carton.

Shipping of bio-soluble ceramic fiber blanket: By vessel or by train from any Chinese port, Samples can be delivered by International express.

972461590_969

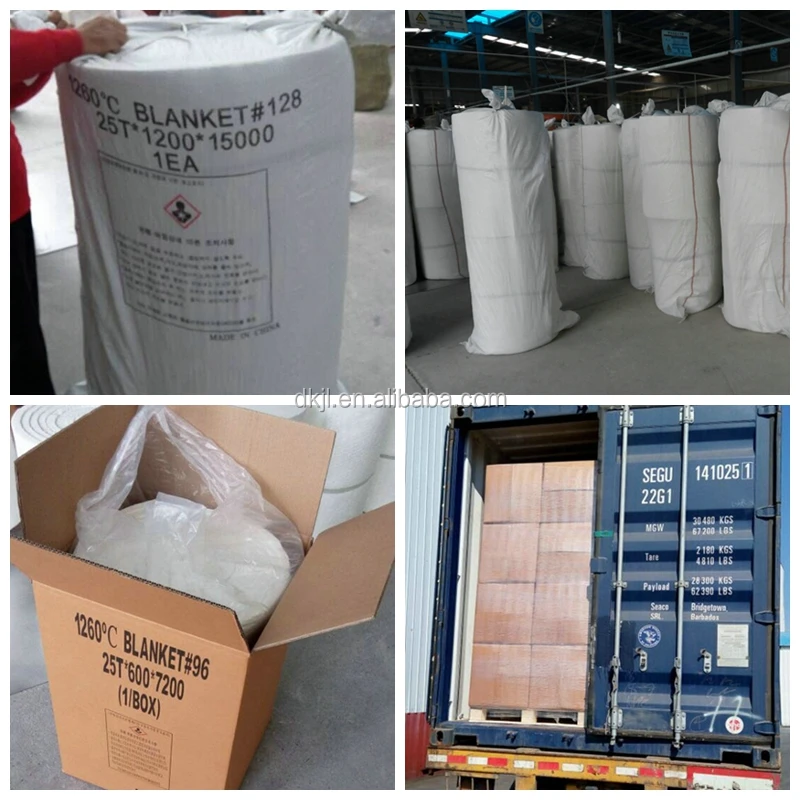

package pictures of bio-soluble ceramic fiber blanket


Our Services





1. Timely response,

Timely response to your inquiry, multiple choice recommendations based on your demand, quickly respond mails and provide solutions.



2. Sample evaluation

bio-soluble ceramic fiber blanket sample and trial order are accepted for the quality evaluation.



3. Strict quality control

Arrange production on time and control quality strictly.



4. Shorter delivery time.

Book the earliest vessel or plane to guarantee the delivery time.



5. Professional Services

Provide all the detailed news and pictures from order to delivery;

Offer relative export documents and original certificate if needed;

Warm and considerable after-sale service



Company Information



DKJL refractories exporting company is one of the most professional suppliers of refractories in China. Our main products are refractory and thermal insulation materials, heating elements, and industrial ceramics. They are available in various sizes and shapes. Our products enjoy a good reputation for their excellent quality and service in domestic and international markets.

 QQ20180108135553



FAQ



 1.How can I get your prompt quotation for bio-soluble ceramic fiber blanket?

 We can give you reply with quotation quickly if you kindly send the inquiry with following factors: working temperature, maximum working temperature, bulk density, dimension (length*width*thickness), and quantity.



2.What's the MOQ of trial order?
No limit, we can offer the best suggestions and solutions according to your condition.



 3.Which payment terms can you accept?
T/T, LC, Western Union, MoneyGram are available for us.



4.After an order is placed, when to deliver?
15-25days after confirming the order.

5.Does your company accept customization?
We accept OEM service.

6.How to solve the quality problems?
If the products are not conform to customer samples or have quality problems, our company will be responsible for it.



7.What is the HS code?

The HS code is 68061010



8. Is there any cost for the sample?

We provide free sample but don't bear the freight.
