Model NO.:
NG-0.5/0.6/0.8/1.0/1.3/1.5
Price:
USD 100.00-170.00
Delivery:
FOB
Minimum order quantity:
1
Supply Ability:
2000 / Week
Country of Origin:
ANY CHINA PORT
Quantity:
  • Place of Origin:CN
  • Shape:Brick
  • Material:Alumina Cement
  • Refractoriness (Degree):Common (1580°< Refractoriness< 1770°)
  • SiO2 Content (%):44/55%
  • Al2O3 Content (%):35%-48%
  • MgO Content (%):None
  • CaO Content (%):None
  • CrO Content (%):None
  • SiC Content (%):None
  • Model Number:NG-0.5/0.6/0.8/1.0/1.3/1.5
  • Brand Name:DKJL

High Density Fire Clay Refractory Brick for Blast Furnace



Product Description

Advantages:

1.Light weight and low thermal conductivity allows thinner furnace walls maintain stable structural strength throughout ambient to maximum service temperature
2.Low heat storage results in rapid cooling and heating operation
3.Low iron and impurities to enhance reducing atmosphere
4.thermal shock resistance in preventing spalling
5.Non standard sizes and shapes are available upon request



Application:

Ceramic shuttle kilns
Metal heat treatment furnaces Steel billet reheating furnaces Oil refinery heaters
Laboratory furnaces




Physical properties and data

Sunrise Brand

NG-0.5

NG-0. 6

NG-0. 8

NG-1.0

NG-1.3

NG-1.5

USA Brand

ISO125-0.5

ISO125-0.6

ISO135-0.8

ISO135-1.0

ISO140-1.2

ISO140-1.5

Max Service Temperature (°C)

1150

1200

1280

1300

1350

1400

Bulk Density (g/cm3)

0.55

0.6

0.8

1.0

1.3

1.5

Apparent Porosity %

80

70

60

55

50

40

Cold Crushing Strength

 (Mpa) ≥

1.5

2.0

2.5

3.0

4.0

6.0

Reheating Linear Change (%)   °CX 12H ≤

1250°C

-0.5

1300°C

-0.5

1350°C

-0.5

1350°C

-0.9

1350°C

-0.9

1350°C

-0.9

Thermal conductivity(W/m.k)

400°C

0.14

0.25

0.35

0.41

0.51

0.6

600°C

0.16

0.29

0.45

0.43

0.61

0.71

800°C

0.18

0.31

0.50

0.44

0.67

0.77

1000°C

0.20

0.33

0.60

0.45

0.8

0.9

Al2O3 (%)

37

40

40

40

40

42

Fe2O3 (%)

1.0

1.5

1.5

1.5

2

2

SiO2

44

55

55

55

55

55

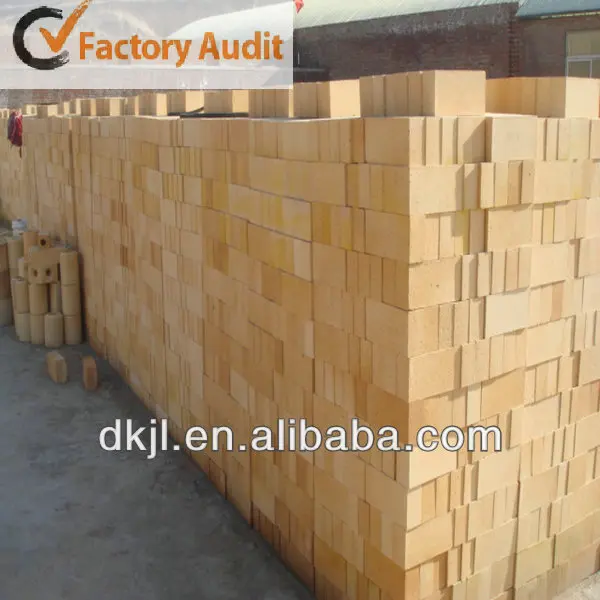

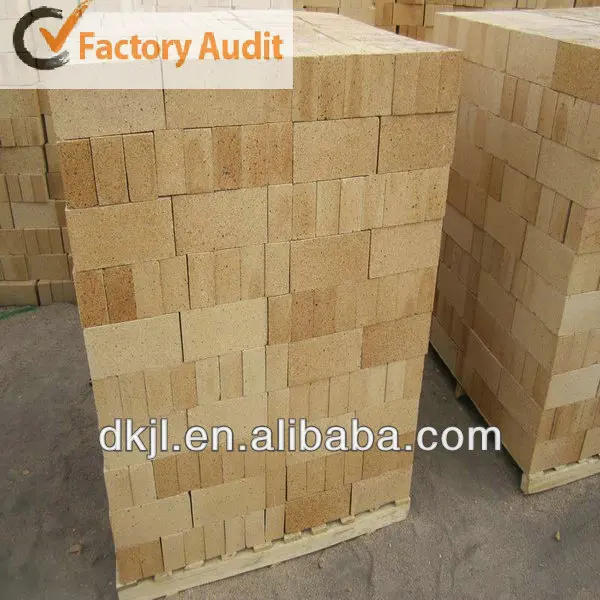

PI 039.jpgPI 060.jpgDSC05035.JPG

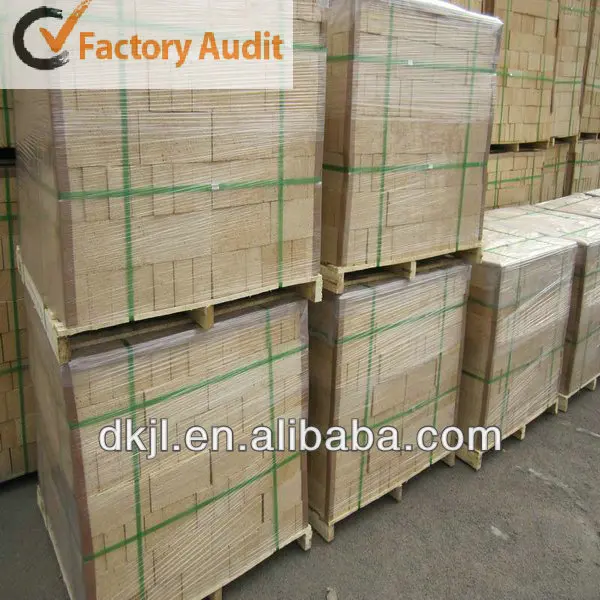

Packaging & Shipping

Packing: Standard export carton,  wooden pallet

Shipping: By vessel or plane from any Chinese port

972461590_969



Our Services

1.Timely response,

Timely response to your inquiry, multiple choice recommendations based on your demand,quickly respond mails and provide solutions.



2.Free sample

Sample and trial order are accepted for the quality evaluation



3.Strict quality control

Arrange production on time and control quality strictly.



4.Shorter delivery time.

Book the earliest vessel or plane to guarantee the delivery time.



5.Professional Services

Provide all the detailed news and pictures from order to delivery;

Offer relative export documents and original certificate if needed;

Warm and considerable after-sale service



Company Information

DKJL refractories exporting company is one of the most professional suppliers of refractories in China. Our main products are refractory and thermal insulation materials, heating elements, industrial ceramics. They are available in various sizes and shapes. Our products enjoy a good reputation for their excellent quality and service in domestic and international markets.

paste-pic-dp_uuid_i9deo




FAQ



MOQ: 500 pcs

Inquiry factors: Working temp, Density, Size, Quantity
