Model NO.
DKJL-C
Price:
USD 0.50-10.00 / pieces
Delivery:
FOB
Minimum order quantity:
10 pieces
Supply Ability:
20000 pieces / Month
Country of Origin:
Any China Port
Quantity:
  • Place of Origin:CN
  • Type:Ceramic Tubes
  • Application:Industrial Ceramic
  • Material:Alumina Ceramic
  • Model Number:DKJL-C
  • Brand Name:DKJL

Thermocouple Protection Alumina 99 Al2O3 Ceramic Tube



Product Description



The main material of ceramic tube is Aluminium Oxide( Al2O3). The purity varies from 60%-99.7%, density from 3.0-3.9g/cm3, and working temperature from 1000-1800°C. It offers a combination of superior mechanical strength and electrical properties, wear resistance and corrosion resistance.



ceramic tube Features and advantage

1.Great mechanical strength

2.Low thermal conductivity

3.High heat resistance

4.High softening temperature

5.Small thermal expansion coefficient

6.Good cold-resistance heat-resistance

7.Resistance to acid and alkali corrosion

8.Long service life



ceramic tube common series

1. Protector tube series

Material: Corundum

Use: Protector tube and temperature tube of thermocouple thermometer, carbon determinator, sulfur deteminator and combustion pipe of metallurgy, iron and steel, chemical analysis.

Feature: Great mechanical strength, good thermal conductivity, great resistance to heat impact, high softening temperature, good insulation and high-frequency characteristics under high temperature and resistance to chemical corrosion.



2. Insulation tube series

Material: Corundum

Use: For thermocouple, interval and insulation between couple wires. For specifications, there are single hole, double holes, four holes and multi-holes. For form, there are round and oval pipes.

Features: Great mechanical strength, good resistance to thermal impact, good insulation and high-frequency characteristics under high temperature. Breakdowm voltage and volume resistance and self-reactance are great and thermal expansion coefficient is small.



3. Through tube series

Material: Corundum

Use: Inner liner tube and heating tube in electric furnace, heat treatment furnace and toughened furnace, chlorine pipe for production of alchlor and electric heating pipe in the tin trough in the production line of float glass.

Features: Great mechanical strength, good resistance to thermal impact, high softening temperature, good chill and abrupt heat properties, small thermal expansion coefficient and resistance to acid and alkali corrosion.



ceramic tube Chief technical parameters



Chemical
competent
Al2O3
≥99.5%
SiO2
<0.2%
Fe2O3
<0.1%
Alkaline matter
<0.1%
Density
3.9 g/cm3
Hardness
9 M
Water absorption
<0.1%
Rupture  strength
>2000kg/cm2
Gas tightness
Kept for ten minutes at negative pressure of 1.3Kpa. The pressure drop is less than 0.3Kpa.
Thermal tolerance
Insert the pipe into the furnace at a depth of 20mm. Heat to 1600℃ and maintain for 30 minutes.
Alkali tolerance
In the Na2CO3 solution of 2N concentration, boil for 15 hours with the weight loss not greater than 20mg/dm2.
Volume resistance
>9*10(5) Ω·cm/1600℃
Breakdown voltage
20kv/cm
Expansion coefficient
8*10(-8)
Temperature for use
Long-term: 1600℃  Short-term: 1800℃
Chill and abrupt heat
1500℃~room temperature not cracking thrice.












AL2O3% Composition

Density

(g/cm3)

Flexural Strength

(MPa)

Thermal Conductivity
[w/(m.R)]

Dielectric Strength
(KV/mm)

Working Temp.

60

3.0

205

16

10

1000°C

75

3.1

280

17

10

1250°C

80

3.3

215.7

17

10

1290°C

85

3.4

230

17

10

1350°C

92

3.6

312

18

10

1390°C

95

3.7

304

20

10

1480°C

99

3.81

340

34

10

1600°C

99.7

3.85

370

35

10

1700°C

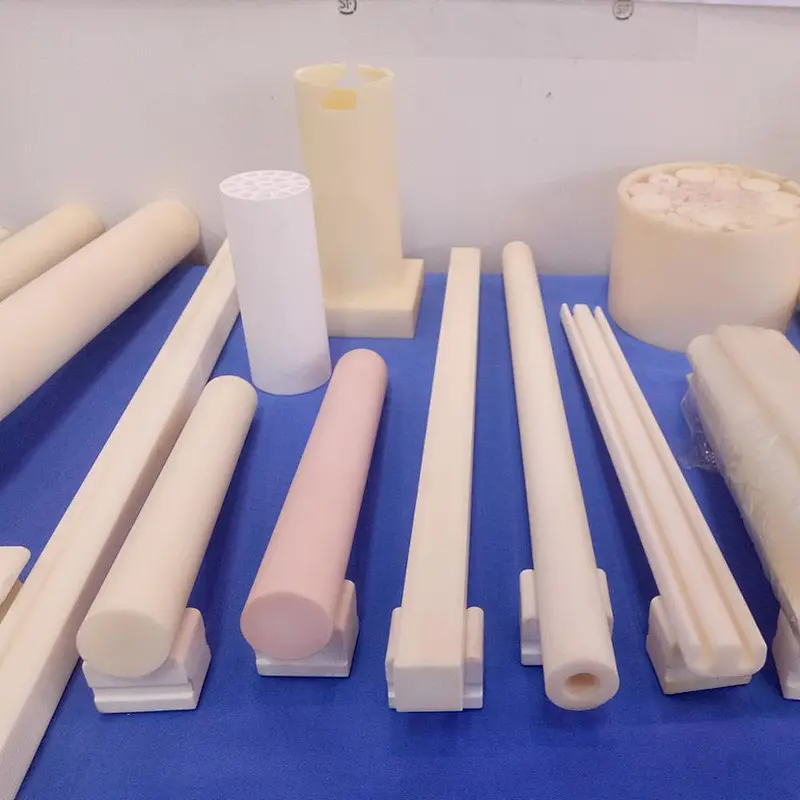

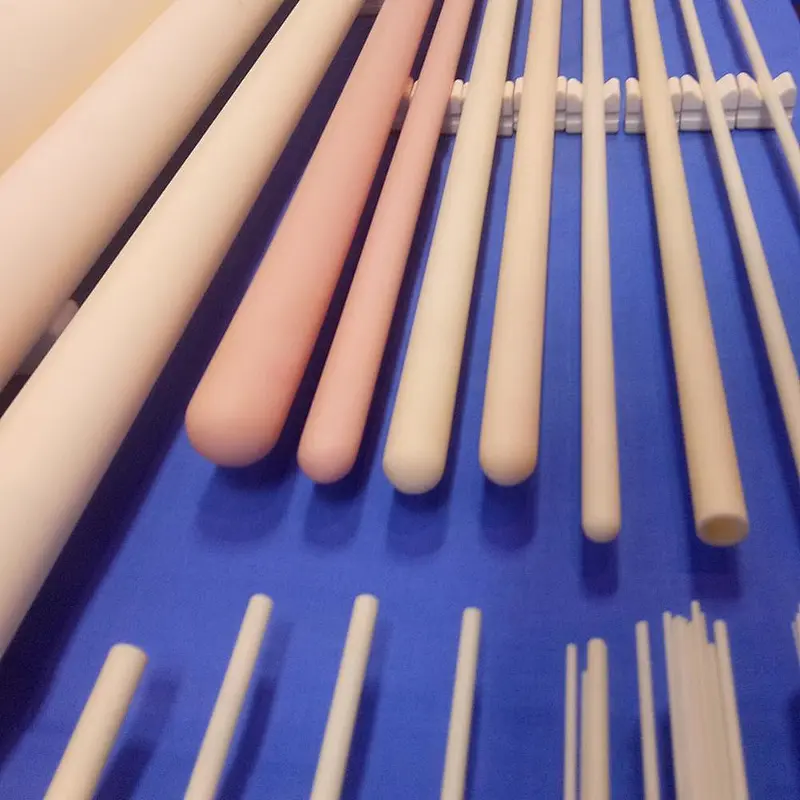

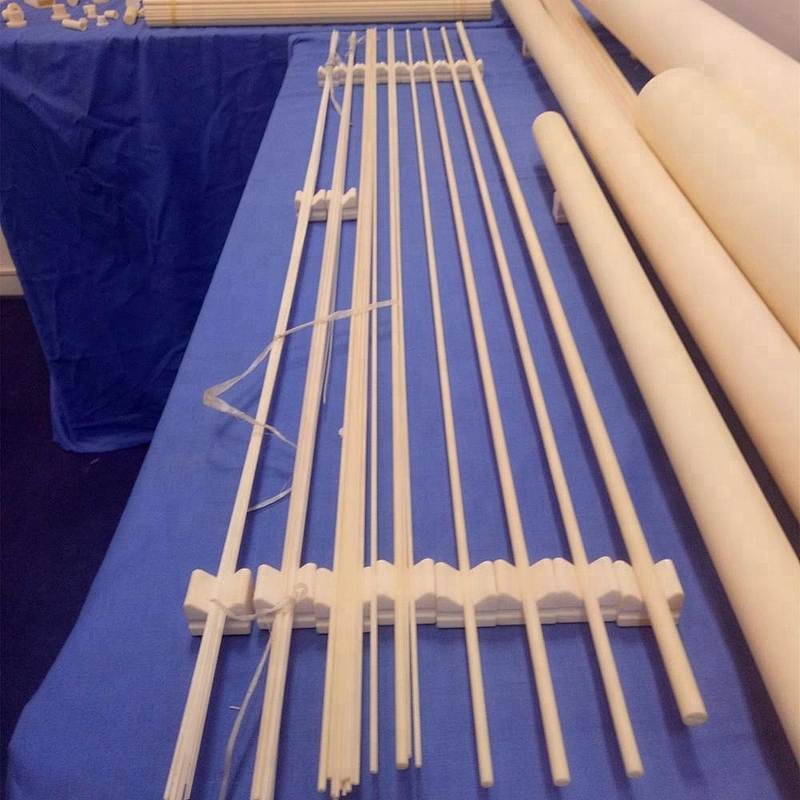

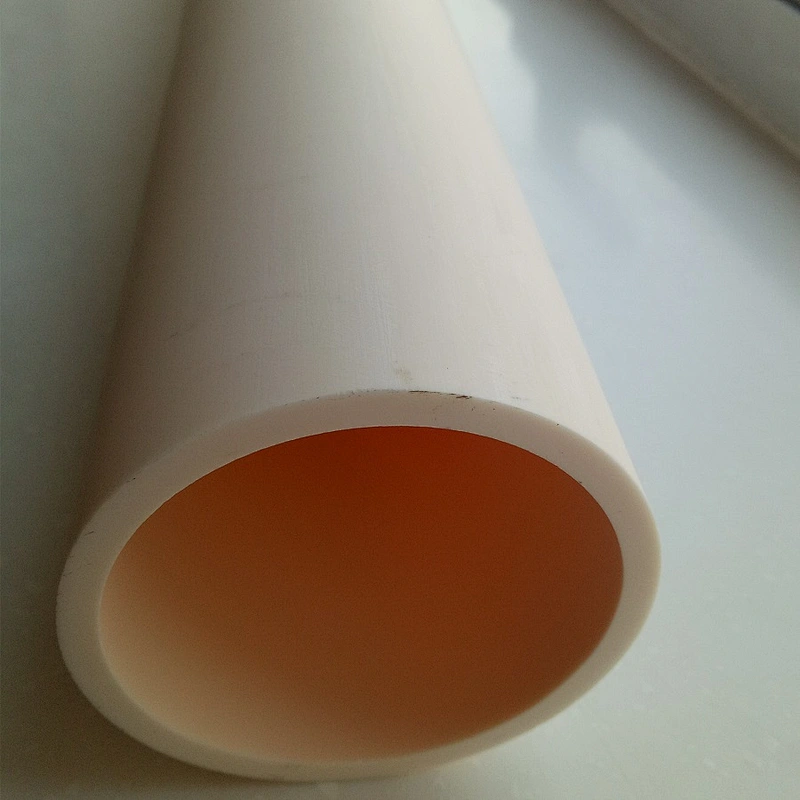

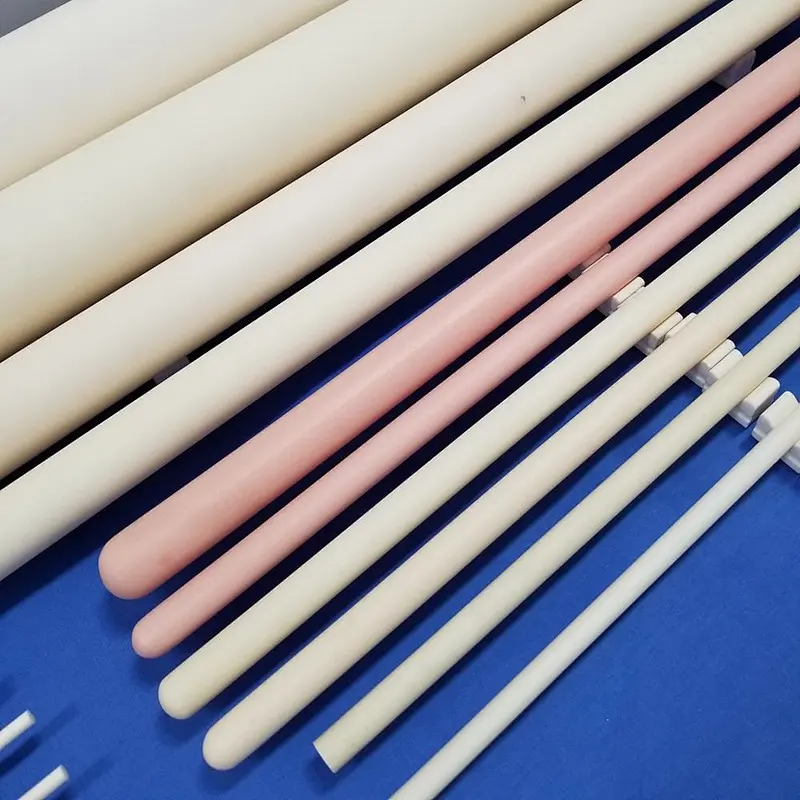

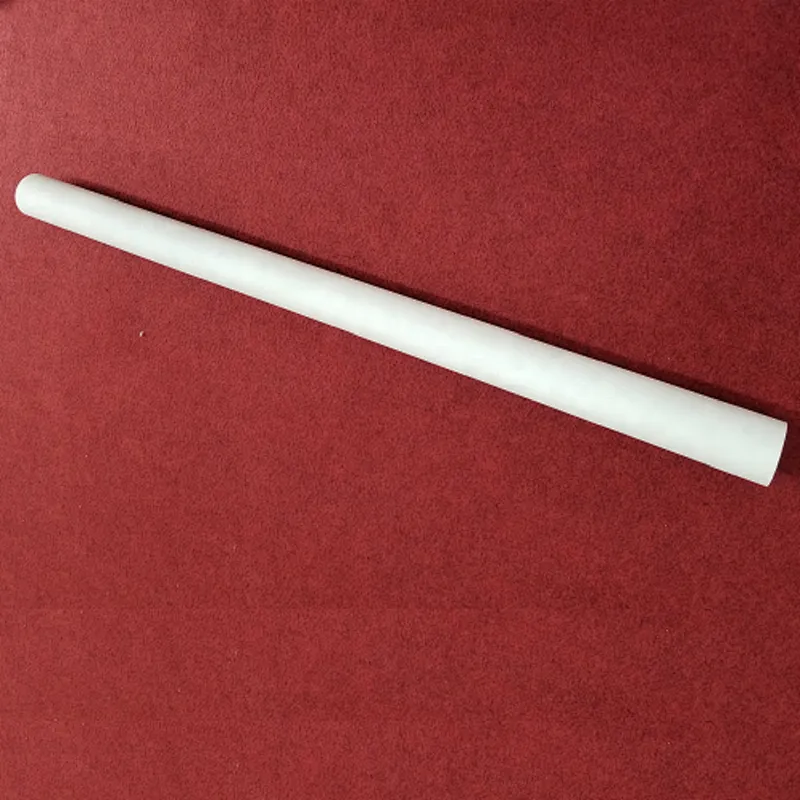

 pictures of ceramic tube
.jpg

Packaging & Shipping



Package of alumina ceramic tube: wooden case.We also provide OEM service, the package can be designed according to your requirements.

Shipping of alumina ceramic tube: By vessel or by train from any Chinese port, Samples can be delivered by International express.




package pictures of ceramic tube

ceramic tube package pictures2

Our Services

1.Timely response,

Timely response to your inquiry, multiple choice recommendations based on your demand,quickly respond mails and provide solutions.



2.Sample evaluation

Alumina ceramic tube sample and trial order are accepted for the quality evaluation



3.Strict quality control

Arrange production on time and control quality strictly.



4.Shorter delivery time.

Book the earliest vessel or plane to guarantee the delivery time.



5.Professional Services

Provide all the detailed news and pictures from order to delivery;

Offer relative export documents and original certificate if needed;

Warm and considerable after-sale service



Company Information

DKJL refractories exporting company is one of the most professional suppliers of refractories in China. Our main products are refractory and thermal insulation materials, heating elements, industrial ceramics. They are available in various sizes and shapes. Our products enjoy a good reputation for their excellent quality and service in domestic and international markets.

paste-pic-dp_uuid_987nl



FAQ



1. How can I get your prompt quotation for ceramic tube?

We can give you reply with quotation quickly if you kindly send the inquiry with following factors: anchoring or no-anchoring structure, working temperature, maximum working temperature, bulk density, dimension (length*width*thickness), and quantity.



2.What's the MOQ of trial order?
No limit, we can offer the best suggestions and solutions according to your requirement.



3. Which payment terms can you accept?
T/T,LC,Western Union,moneygram are all available for us.



4. After an order is placed, when to delivery?
15-25days after confirming the order.

5. Does your company accept customization?
We accept OEM service.

6. How to solve the quality problems?
If the products do not conform to customer samples or have quality problems, our company will be responsible to make compensation for it based on enough evidences.



7. What is the HS code?

The HS code is 68061010



8. Is there any cost for the sample?

We provide free sample but don't bear the freight
