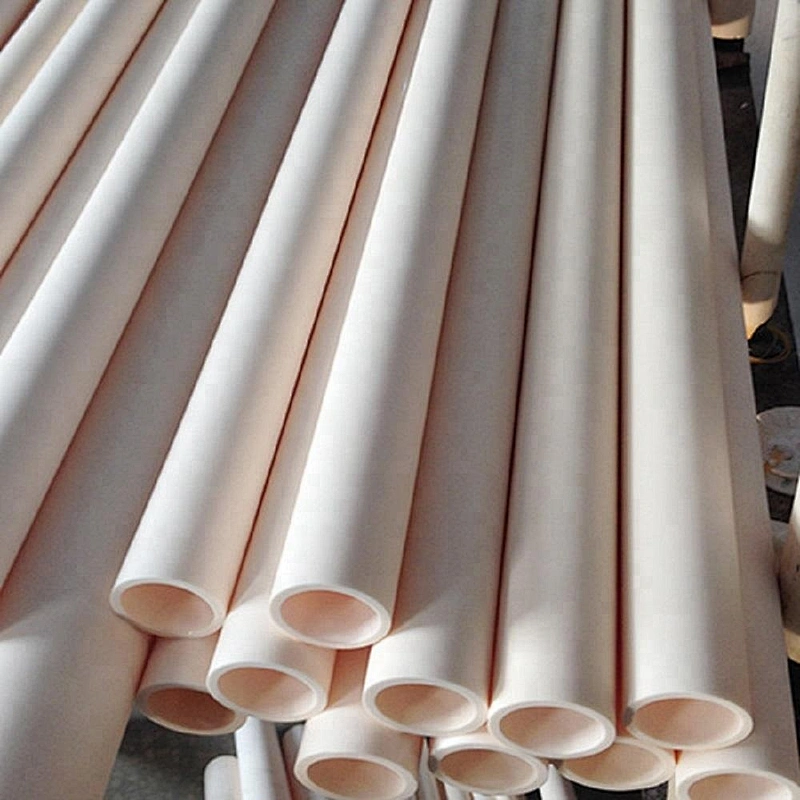

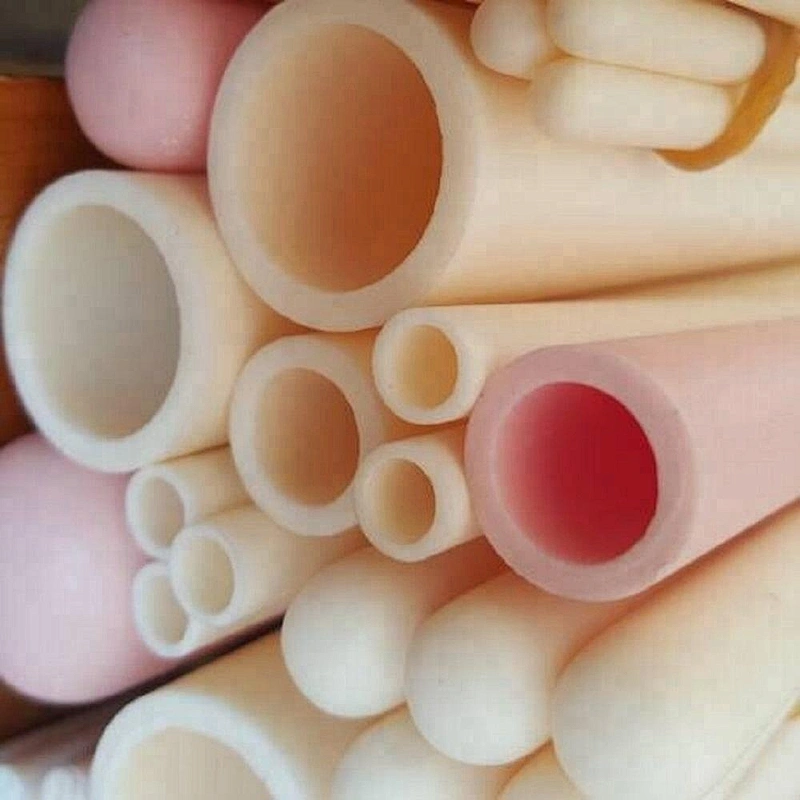

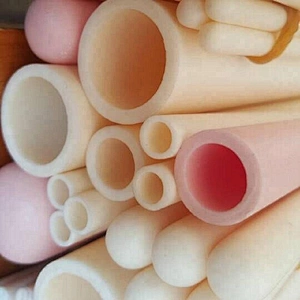

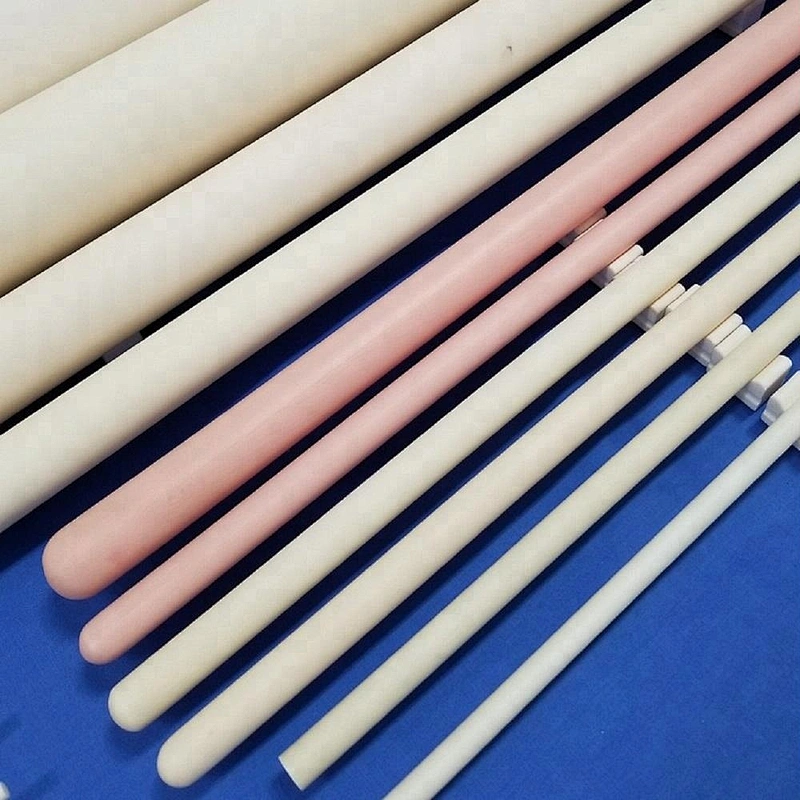

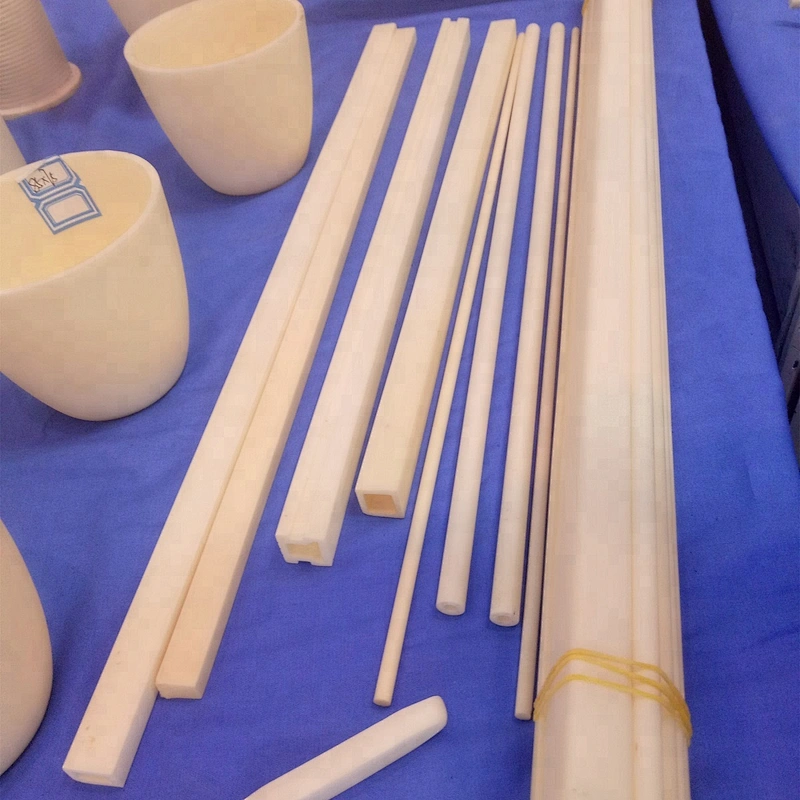

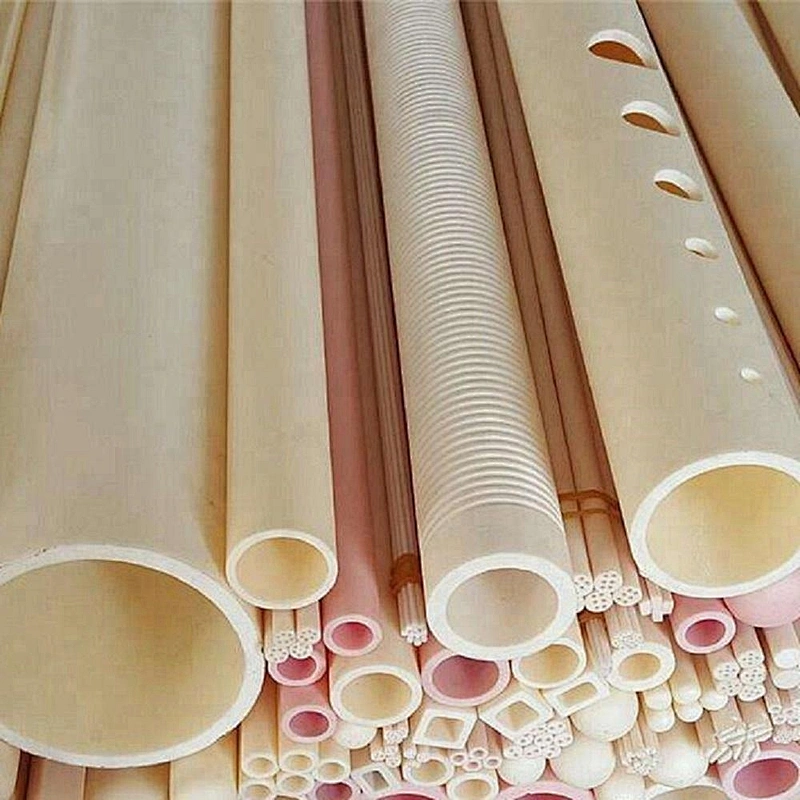

High Temperature Thermocouple Protection 99% Alumina Ceramic Tube
High Temperature Thermocouple Protection 99% Alumina Ceramic Tube
High Temperature Thermocouple Protection 99% Alumina Ceramic Tube
High Temperature Thermocouple Protection 99% Alumina Ceramic Tube
High Temperature Thermocouple Protection 99% Alumina Ceramic Tube
High Temperature Thermocouple Protection 99% Alumina Ceramic Tube
High Temperature Thermocouple Protection 99% Alumina Ceramic Tube
High Temperature Thermocouple Protection 99% Alumina Ceramic Tube
High Temperature Thermocouple Protection 99% Alumina Ceramic Tube
High Temperature Thermocouple Protection 99% Alumina Ceramic Tube
High Temperature Thermocouple Protection 99% Alumina Ceramic Tube
High Temperature Thermocouple Protection 99% Alumina Ceramic Tube
High Temperature Thermocouple Protection 99% Alumina Ceramic Tube

High Temperature Thermocouple Protection 99% Alumina Ceramic Tube

Model NO.:
Customer's Requirements
Price:
USD 0.50-49.20 / pieces
Delivery:
FOB
Minimum order quantity:
100 pieces
Supply Ability:
5000 pieces / Month
Country of Origin:
ANY CHINA PORT
Quantity:
  • Place of Origin:CN;SHN
  • Type:Ceramic Tubes
  • Application:Industrial Ceramic
  • Material:Alumina Ceramic
  • Model Number:Customer's Requirements
  • Brand Name:DKJL

High Temperature Thermocouple Protection 99% Alumina Ceramic Tube

Product Description
Ceramic tube 99  is hi-tech advanced ceramic products made with patented cool isostatic pressing technique and over 50 years of professional manufacturing experience.

Ceramic tubes are widely used in roller kilns for firing wall tile, floor tile, table ware, sitall tile, magnetic materials and electronic ceramic, etc.

CharacteristicsItemsTypes
VS-2000S-2000S-4000S-6000
Physical
properties
Bulk densityg/cm3≥2.4≥2.4≥2.6≥2.8
Apparent porosity%20-2320-2515-2010-15
Water absorption%8-108-127-104-7
Bending strength
25/1350,Mpa
>55/35>50/30>60/50>70/60
Thermal expansion coefficient
*10(-6)/ (25~1000)
5.8-6.05.8-6.25.8-6.25.8-6.0
Thermal shock resistance1300~25GoodVery goodVery goodGood
Working Temp≤1200≤1230≤1300≤1350
CompositionAl2O3(5)74-7674-7672-7478-80
SiO2(%)20-2220-2219-2114-16
Fe2O3(%)≤0.3≤0.3≤0.3≤0.2
Reference
loading
Φ50*3800mm
5.0
1200
4.5
1230
6.0
1300
7.5
1350

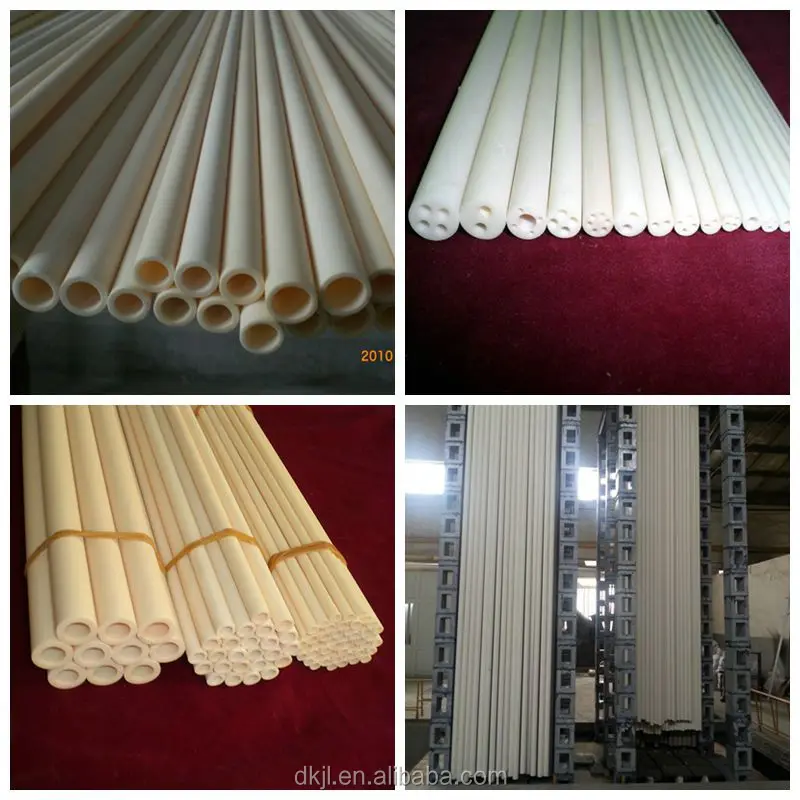

Pictures of ceramic tube
porous ceramic tube




Packaging & Shipping

Packing of ceramic tube : Standard export wooden case

Shipping of ceramic tube : By vessel or plane from any Chinese port

972461590_969



Our Services



1.Timely response,

Timely response to your inquiry, multiple choice recommendations based on your demand,quickly respond mails and provide solutions.



2.Sample evaluation

Ceramic tube 99 sample and trial order are accepted for the quality evaluation



3.Strict quality control

Arrange production on time and control quality strictly.



4.Shorter delivery time.

Book the earliest vessel or plane to guarantee the delivery time



5.Professional Services

Provide all the detailed news and pictures from order to delivery;

Offer relative export documents and original certificate if needed;

Warm and considerable after-sale service



Company Information



 DKJL refractories exporting company is one of the most professional suppliers of refractories in China.The main products are refractory bricks,thermal insulation material,heating elements and industrial ceramics.They are available in various sizes and shapes.Our products enjoy a good reputation for their excellent quality and service in domestic and international markets.

_





FAQ



Q1.How can I get your prompt quotation?

A:We can give our offer quickly if  you kindly send the inquiry with following factors:dimension(length*ID*OD),density,application and quantity.





Q2:What is the MOQ(minimum order quantity )?

100 pipes.



3.What is the HS code?

The HS code is 69060000



4.How is about the sample?

We can offer a free sample but the freight charge arised by the sample is assumed by the buyers.
