- Place of Origin:CN;JIN
- Type:Ceramic Balls
- Application:Industrial Ceramic
- Material:Alumina Ceramic
- Model Number:DKCB
- Brand Name:DKJL
Inert Alumina Ceramic Packing Ball For Grinding
Ceramic packing ball was made from very high quality chemical-porcelain clay materials, which has quite excellent stability, high mechanical strength and resistance to thermal shock, This makes them all ideal choice for support of all types of catalyst.
Ceramic packing ball Application:
As the material to support and cover catalyst in the reactor ,inert alumina ball can buffer gas or liquids flush on catalyst so as to protect catalyst.It also can improve distribution of gas or liquid in the reactor.Therefore,its widely applied in petrochemical,chemical,fertilizer,gas and environmental protection industries.
Chemical composition & Physical propertity
chemical compositions | ceramic support ball |
Al2O3 | >17% |
SiO3 | < 75.0% |
Fe2O3 | < 1.00% |
TiO3 | < 1.00% |
CaO | < 0.50% |
MgO | < 0.5% |
Na2O | < 2.00% |
K2O | < 2.5% |
physical analysis | ceramic support ball |
bulk density kg/m3 | 1210-1430kg/m3 |
operating temperature °C | >985°C |
water absorption % | < 0.5% |
moh’s hardness scale | >6.5 |
index size | ceramic support ball | ||
crushing strength | |||
Kg/particle | KN/particle | ||
1/8”(3mm) | >28 | >0.28 | |
1/4“(6mm) | >55 | >0.54 | |
3/8“(9mm) | >110 | >1.08 | |
1/2“(13mm) | >170 | >1.67 | |
3/4“(19mm) | >430 | >4.21 | |
1“(25mm) | >635 | >6.22 | |
1.5“(38mm) | >910 | >8.92 | |
2“(50mm) | >1000 | >9.8 | |

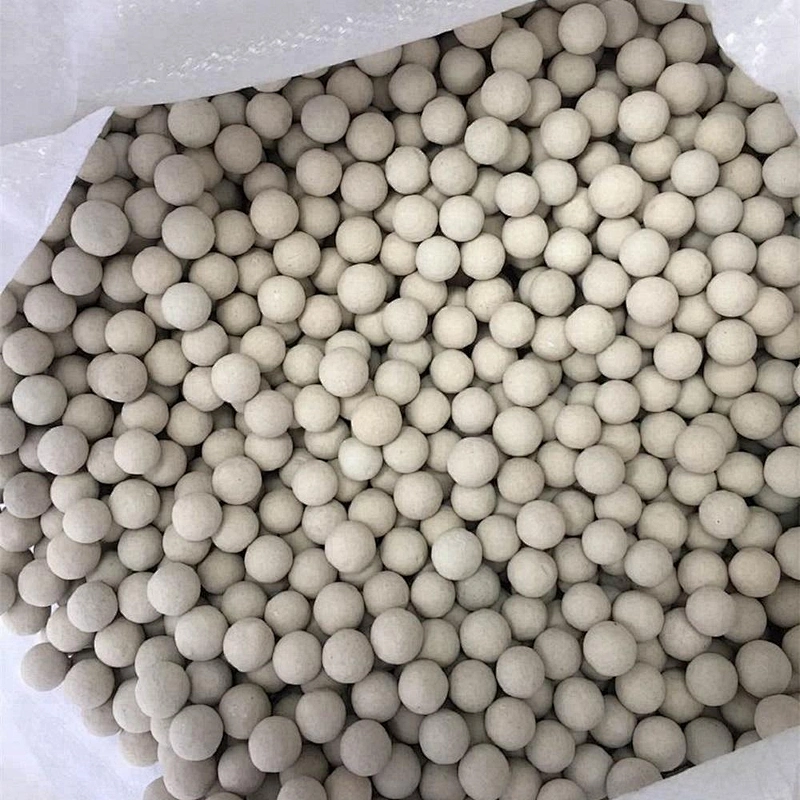

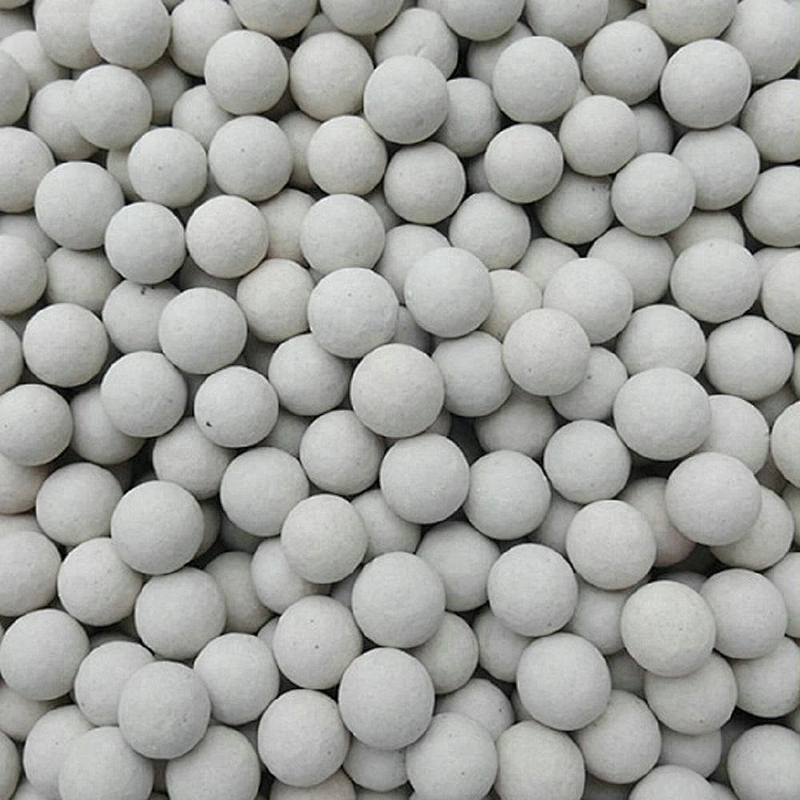

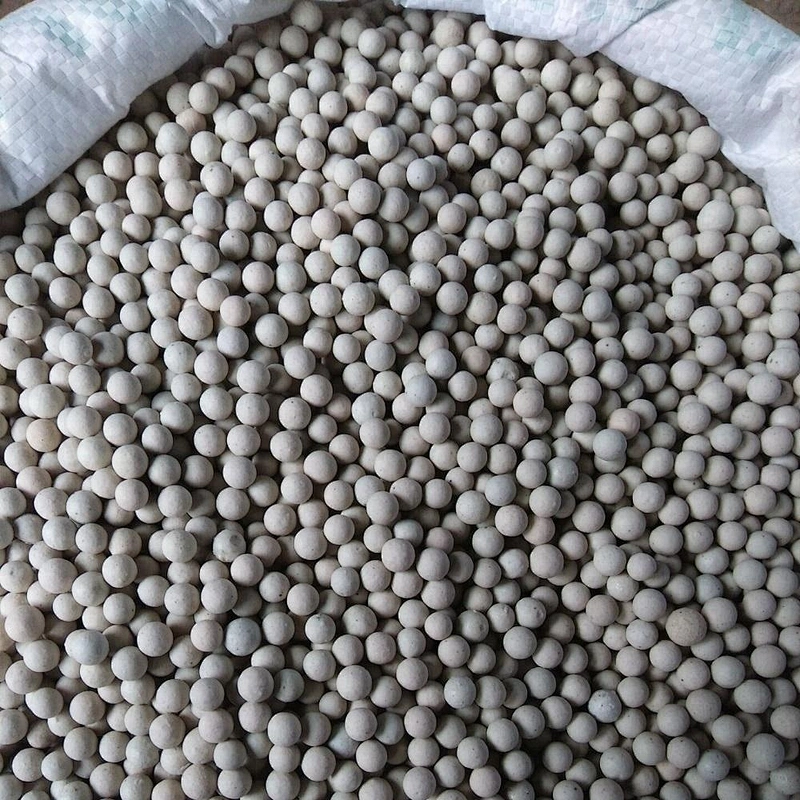

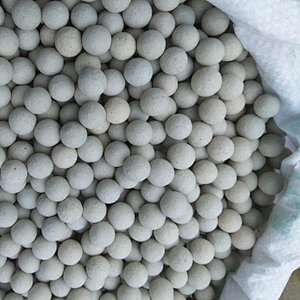

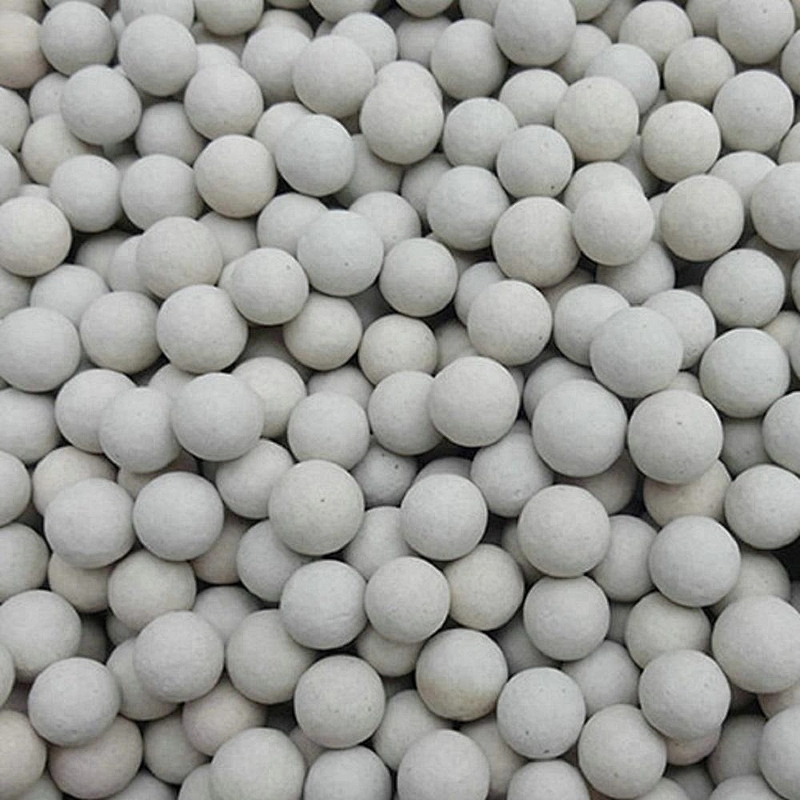

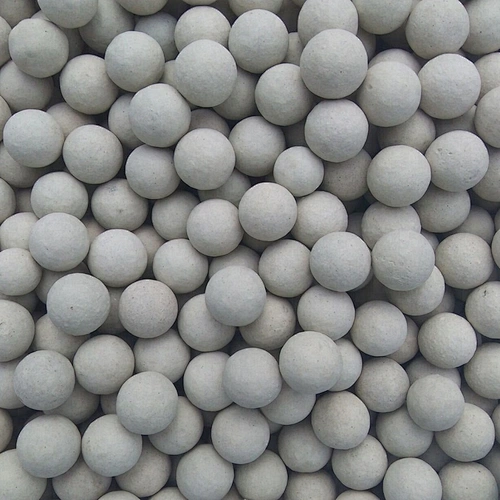

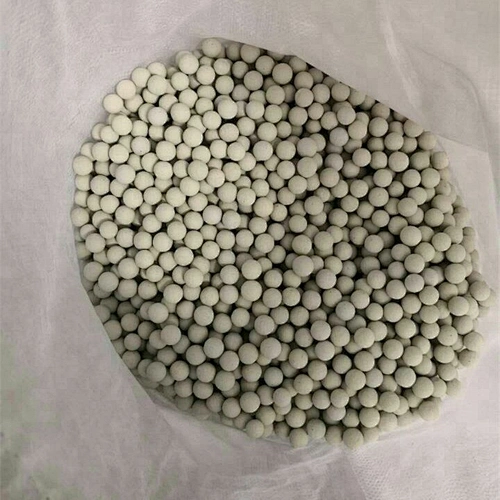

pictures of Ceramic packing ball
Packing of Ceramic packing ball: export caton or woven bag (according to customer's demand)
Shipping of Ceramic packing ball: Sample shipped by international express and order shipped by sea.

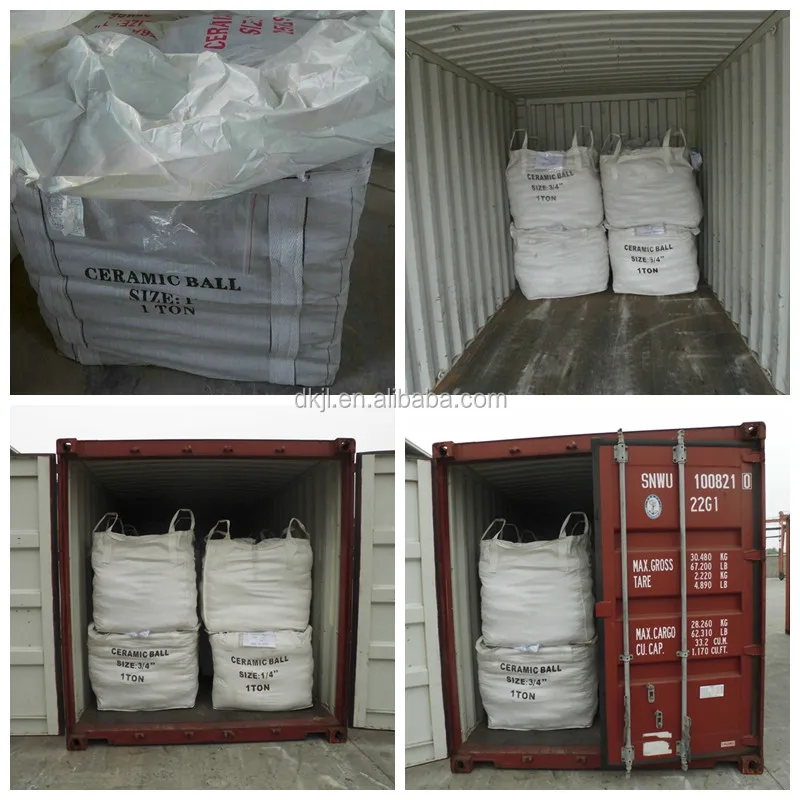

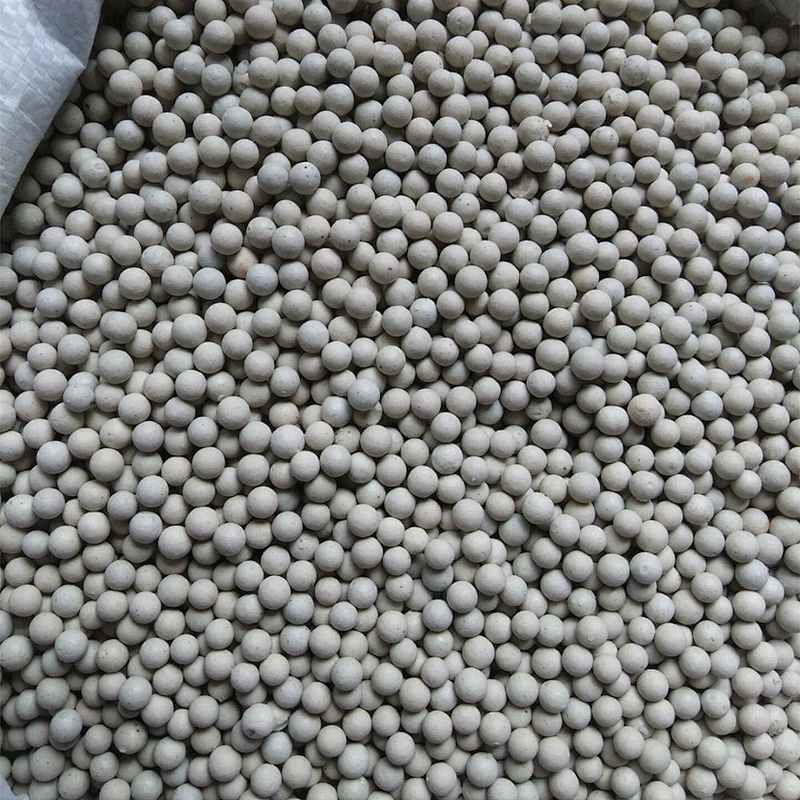

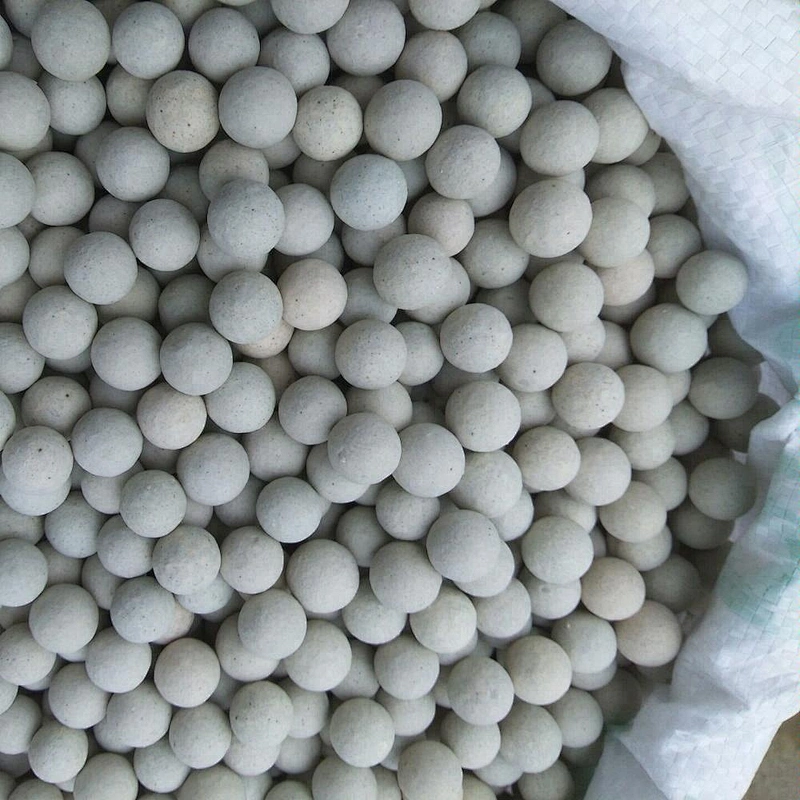

Package pictures of Ceramic packing ball
1. Timely response,
Timely response to your inquiry, multiple choice recommendations based on your demand, quickly respond mails and provide solutions.
2. Sample evaluation
Ceramic packing ball sample and trial order are accepted for the quality evaluation.
3. Strict quality control
Arrange production on time and control quality strictly.
4. Shorter delivery time.
Book the earliest vessel or plane to guarantee the delivery time.
5. Professional Services
Provide all the detailed news and pictures from order to delivery;
Offer relative export documents and original certificate if needed;
Warm and considerable after-sale service
Our company DKJL has now become one of the most competitive suppliers of Chinese products in overseas market. The products we represented range from refractory and thermal insulation materials, heating elements, industrial ceramics to scientific instruments. The price, quality and variety of the products we supplied are guaranteed to be at the top of the range. You will find detailed information on the above outlined products in our website and we also welcome your enquiry on any other products. We have professional and dedicated specialists to assist you and meet your satisfaction.
1. How can I get your prompt quotation for Ceramic packing ball?
We can give you reply with quotation quickly if you kindly send the inquiry with following factors: content of AL2O3, ball diameter, application and quantity.
2. What's the MOQ of the order?
No limit, we can offer the best suggestions and solutions according to your condition.
3. Which payment terms can you accept?
T/T,LC,Western Union,moneygram are available for us.
4. After an order is placed, when to deliver?
15-25days after confirming the order.
5. Does your company accept customization?
We accept OEM service.
6. How to solve the quality problems?
If the products don’t conform to customer’s samples or have quality problems, our company will be responsible for it.
7. What is the HS code?
The HS code is 69141000
8. Is there any cost for the sample?
We can offer free sample but don't bear the freight
