Cheap Cast Iron Melting Copper SIC Silicon Carbide Graphite Crucible Pots
Silicon carbide crucible is bowl ceramic with deep bottom, they are made of different content of silicon carbide particles added into the graphite crucible, such as a silicon carbide content of 50%, 24%, etc by fundamental of isostatic compaction technology.
It is new generation of silicon carbide graphite crucible adopted high-grade refractory material and formula. According to application, there are special silicon carbide crucibles for melting copper,aluminum,zinc oxide, zinc, and tin.
Product instructions
1.Carry the crucible carefully
2.Warm the crucible in the drying machine or near the furnace. The warming temperature should be up to 500℃.
3.The crucible should be put under the furnace mouth flat.
4.When put the metal into the crucible, you should take the crucible capacity as your reference.
5.If the crucible is too full, it will be damaged by expansion.
6.The clamps shape need as that of crucible. Avoid the concentrate stressed destroy of the crucible.
7.Clean the crucible regularly and gently.
8.The crucible should be put in the center of the furnace and leave some distance between the crucible and furnace.
9.Turn the crucible once a week and this will help prolong the service life.
10.The flame should not touch the crucible directly
Features and advantage:
1)High density
2)Good thermal stability and distortion resistance at high temperature.
3)High mechanical strength at high temperature.
4)Excellent thermal shock resistance.
5)High thermal conductivity.
6)Perfect oxidating resistance.
7)Excellent corrosion resistance against chemicals at high temperature.
8)High abrasion resistance.
9)Long service life
Application
They can be used for resistance furnace, induction furnace, biological particles furnace, gas furnace, coke oven, furnace oil, and gas furnace to melt gold, silver, copper, aluminum, tin, lead, zinc and other nonferrous metals, and various non-ferrous alloys.
Technical index
Standard parameter | Test data | ||
refractoriness≥ | 1650℃ | refractoriness≥ | 1665℃ |
carbon content≥ | 30~45% | carbon content≥ | 30~45% |
apparent porosity | 10~14% | apparent porosity | 10~14% |
bulk density≥ | 1.9~2.1g/cm? | bulk density≥ | 1.9~2.1g/cm? |
Sic≥ | 45% | Sic≥ | 48% |
Specification
Specifications | Top outer diameter | height |
1# | 70 | 78 |
2# | 87 | 108 |
3# | 102 | 120 |
4# | 112 | 131 |
5# | 121 | 141 |
6# | 121 | 154 |
8# | 137 | 169 |
10# | 148 | 186 |
12# | 156 | 192 |
16# | 164 | 212 |
20# | 183 | 232 |
25# | 196 | 250 |
30# | 208 | 269 |
40# | 239 | 292 |
50# | 257 | 314 |
60# | 270 | 327 |
70# | 280 | 360 |
80# | 296 | 336 |
100# | 321 | 379 |
120# | 345 | 388 |
150# | 362 | 429 |
200# | 395 | 483 |
250# | 430 | 557 |
300# | 455 | 610 |
400# | 526 | 661 |
500# | 531 | 713 |
600# | 580 | 600 |
750# | 600 | 650 |
800# | 610 | 730 |
1000# | 620 | 800 |
1500# | 720 | 800 |
2500# | 875 | 1000 |

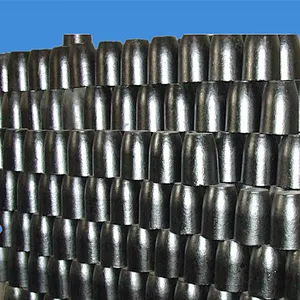

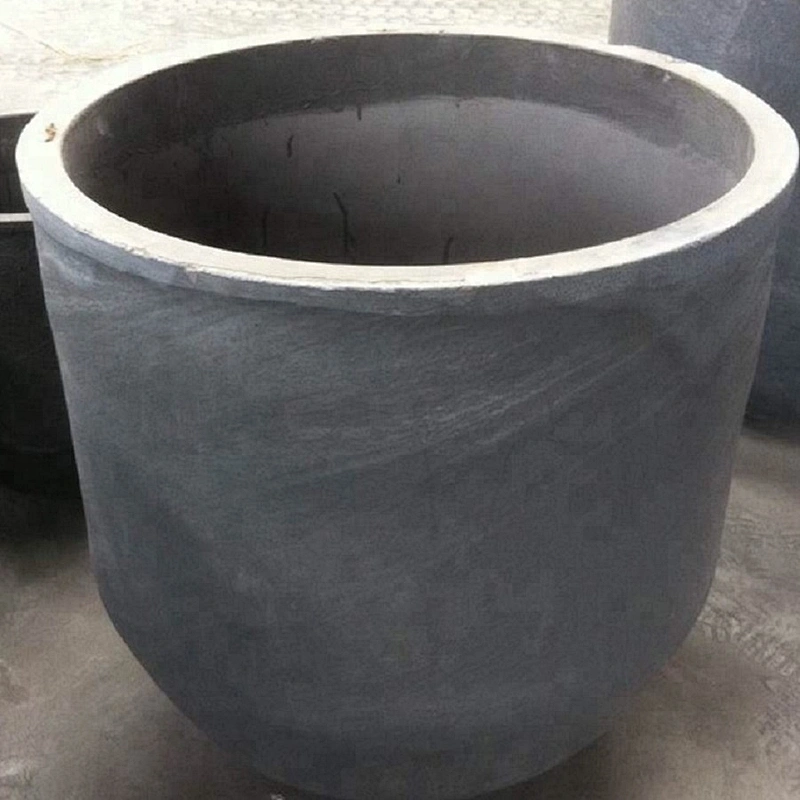

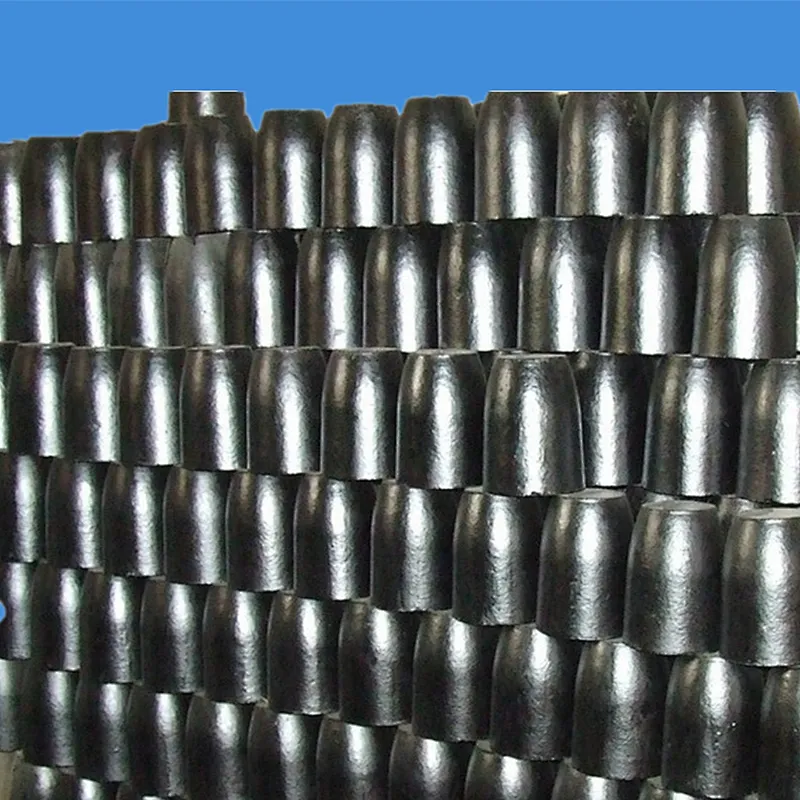

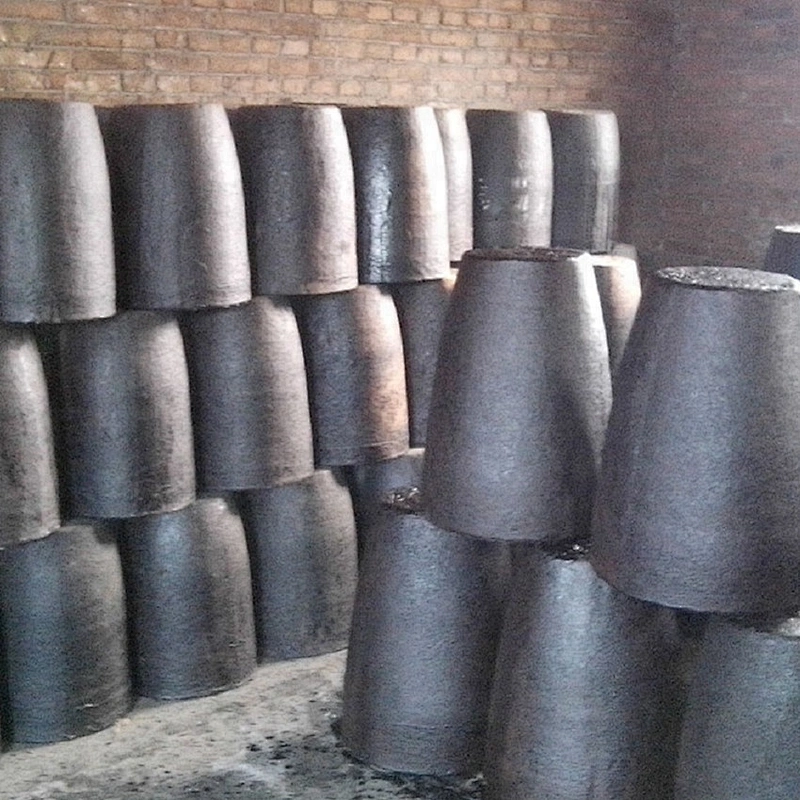

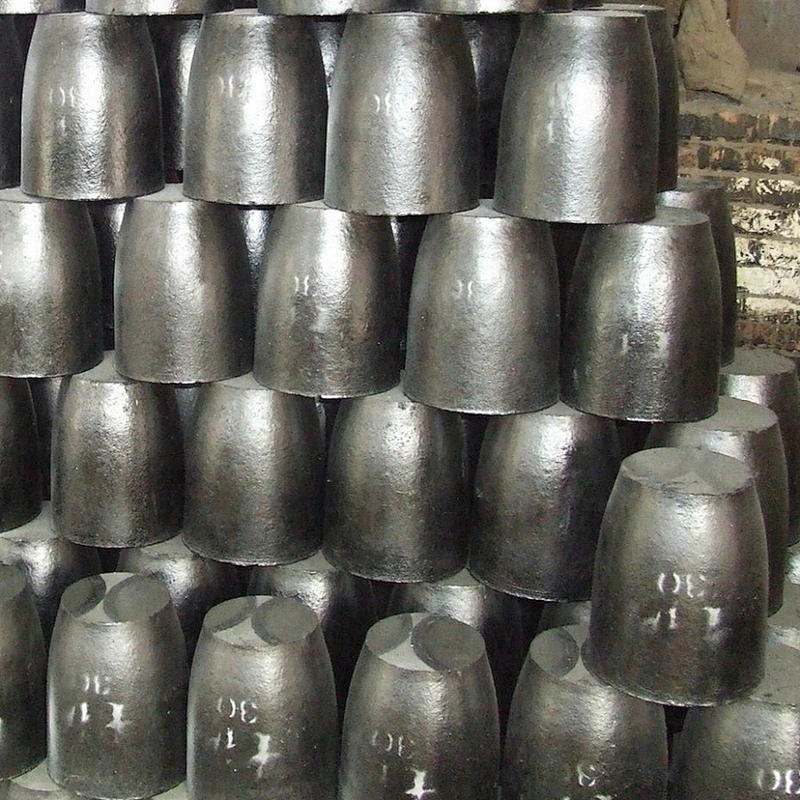

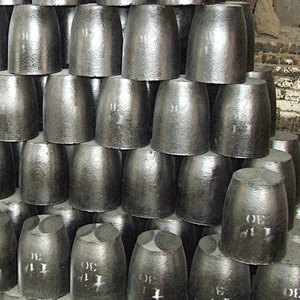

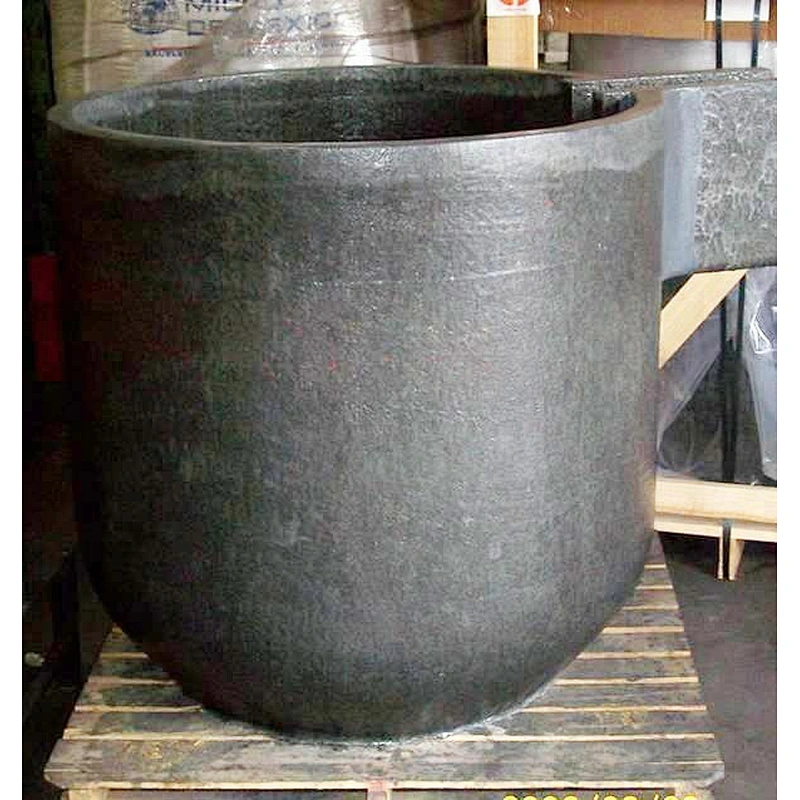

Picture of Silicon carbide Graphite Crucibles
Package of silicon carbide Graphite Crucibles: wooden case.
We also provide OEM service; the package can be designed according to your requirements.
Shipping of silicon carbide Graphite Crucibles: By vessel or by train from any Chinese port, Samples can be delivered by International express.
1. Timely response,
Timely response to your inquiry, multiple choice recommendations based on your demand, quickly respond mails and provide solutions.
2. Free sample
Sample and trial order is accepted for the quality evaluation.
3. Strict quality control
Arrange production on time and control quality strictly.
4. Shorter delivery time.
Book the earliest vessel or plane to guarantee the delivery time.
5. Professional Services
Provide all the detailed news and pictures from order to delivery;
Offer relative export documents and original certificate if needed;
Warm and considerable after-sale service
1. How can I get your prompt quotation for silicon carbide Graphite Crucibles?
A: we can give you reply with quotation quickly if you kindly send the inquiry with following factors:
silicon carbide content, top diameter, bottom diameter, thickness, height, application and quantity.
2.What's the MOQ of the order?
No limit, we can offer the best suggestions and solutions according to your condition.
3. Which payment terms can you accept?
T/T,LC,Western Union,moneygram are available for us.
4. After an order is placed, when to deliver?
15-25days after confirming the order.
5. Does your company accept customization?
We accept OEM service.
6. How to solve the quality problems?
If the products don’t conform to customer’s samples or have quality problems, our company will be
responsible to make compensation for it based on enough evidences.
7. What is the HS code?
The HS code is 69031000
8. Is there any cost for the sample?
We provide free sample but don't bear the freight
