Refractory clay graphite crucible for melting metals with good price
Refractory clay graphite crucible for melting metals with good price
Refractory clay graphite crucible for melting metals with good price
Refractory clay graphite crucible for melting metals with good price
Refractory clay graphite crucible for melting metals with good price
Refractory clay graphite crucible for melting metals with good price
Refractory clay graphite crucible for melting metals with good price

Refractory clay graphite crucible for melting metals with good price

Model NO.:
clay crucible
Price:
USD 4.00-98.00 / pieces
Delivery:
FOB
Minimum order quantity:
2 pieces
Supply Ability:
1000 pieces / Month
Country of Origin:
tianjin/qingdao/shanghai
  • Type:Refractory
  • Composition:SiC
  • Place of Origin:CN;JIA
  • Application:Smelting and casting
  • Height:Customized
  • Top Diameter:Customized
  • Bottom Diameter:Customized
  • Brand Name:DKJL
  • Model Number:clay crucible

Refractory clay graphite crucible for melting metals with good price

Product Description



Clay graphite crucible is a utensil or melting tank vessels which use graphite powder and clay as main raw material, made through pressing in different molds (according to different needs) and firing process.

clay graphite crucibleadvantages:
1.High strength (Flexural strength: 30Mpa Compressive strength: 55Mpa with rising of temperature, graphite strength increases)
2.High temperature resistance (graphite material melting point is 3850±50C)
3.Good heat shock resistance
4.Anti-oxidation,
5.Strong corrosion resistance to acid and alkali liquid
6.Abrasion resistance,
7.Good conductivity and thermal efficiency.
8.Excellent chemical stability
9.Small thermal expansion coefficient.
10.Easy to clean



clay graphite crucible application:
Graphite crucible, with its special advantages and Plasticity, is widely used in the smelting area, e.g. gold smelting, silver smelting, aluminum smelting, and cooper smelting in metallurgy, casting, machinery, chemical and other industries.

clay graphite crucible operating Notice:
The crucible should be stocked in the dry situation.
Carry the crucible carefully
Warm the crucible in the drying machine or near the furnace. The warming temperature should be up to 500℃.
The crucible should be put under the furnace mouth flat.
When put the metal into the crucible, you should take the crucible capacity as your reference. If the crucible is too full,

it will be damaged by expansion.
The clamps shape need as that of crucible. Avoid the concentrate stressed destroy of the crucible.
Clean the crucible regularly and gently.
The crucible should be put in the center of the furnace and leave some distance between the crucible and furnace.
Turn the crucible once a week and this will help prolong the service life.
The flame should not touch the crucible directly.





clay graphite crucible technical index

Standard parameter

Test result

refractoriness

1630℃

refractoriness

1635℃

Carbon content

38%

Carbon content

41.46%

apparent porosity

35%

apparent porosity

32%

bulk density

1.6g/cm3

bulk density

1.71g/cm3



melting pot crucible Physical properties

Specifications

Unit

Value

Bulk Density

g/cm3

1.65-1.80

Compressive Strength *

MPa

20-55

Bending Strength *

MPa

10-30

Elastic Modulus *

GPa

9-21

Specific Resistance *

u.Ω.m

5.0-15.0

Ash

%

0.05-0.5



melting pot crucible specifications

Specifications

Top outer diameter

height

1#

70

78

2#

87

108

3#

102

120

4#

112

131

5#

121

141

6#

121

154

8#

137

169

10#

148

186

12#

156

192

16#

164

212

20#

183

232

25#

196

250

30#

208

269

40#

239

292

50#

257

314

60#

270

327

70#

280

360

80#

296

336

100#

321

379

120#

345

388

150#

362

429

200#

395

483

250#

430

557

300#

455

610

400#

526

661

500#

531

713

600#

580

600

750#

600

650

800#

610

730

1000#

620

800

1500#

720

800

2500#

875

1000

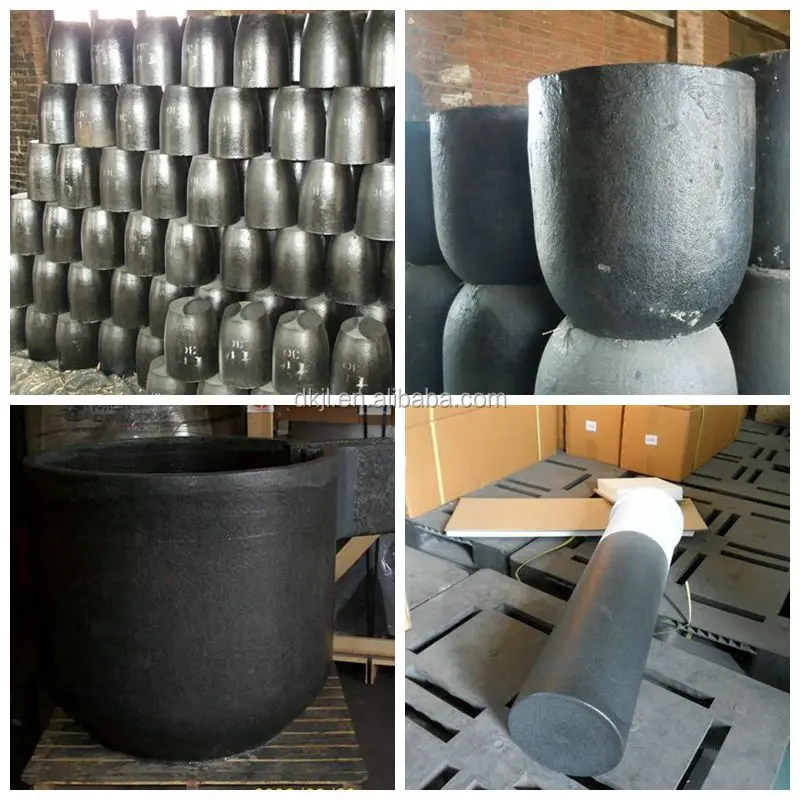

clay graphite crucible picture.jpg

Packaging & Shipping



clay graphite crucible Package: wooden case.

We also provide OEM service; the package can be designed according to your requirements.

clay graphite crucible Shipping: By vessel or by train from any Chinese port, Samples can be delivered by International express.
