- Application:Liners Of Industrial Furnace
- Grade:ST (Standard)
- Place of Origin:CN;SHN
- Thickness:5/12.5/25/50/75/100mm
- Width:600/1000mm
- Length:1200/1000/900mm
- Chemical Composition:Al2O3+SiO2
- Ultimate Strength (≥ MPa):0.4
- Working Temperature:1050C
- Fiber Diameter:2-3um
- Thermal Conductivity:0.05-0.180
- Shrinkage (1800℉, 3h):-3%
- Model Number:SD
- Brand Name:DKJL
Wholesale 1260 Ceramic Fiber Board Insulation
Ceramic fiber board is rigid product made of different ceramic fiber bulks with excellent chemical stability, organic and inorganic bond by wet method and vacuum forming processing which is applied to many kinds of industries.
They are manufactured over a wide range of grades densities and hardness.
We can provide Morgan ceramic fiber board, which includes Ceraboard and Kaowool board.
Ceraboard is standard thickness board made of refractory fiber with less organic bond.
Kaowool board is self-support strength board made of high ceramic fiber and bonding agent.
Ceramic fiber board Product Characteristic:
1,Excellent pressure resistance & long service life
2,Low thermal storage & low thermal conductivity
3,Non-crisp material ,excellent tenacity
4,Accurate Dimension & excellent flatness
5,easy for cut & convenience construction
6,Excellent wind corrosion resistance
7,Continuous production, well—distributed fibers & excellent stability
8,High temperature stability and resistant to thermal shock
9,Can touch fire directly
Ceramic fiber board Application Range:
1.ceramic industrial furnace hot face and back face, Kiln liner and kiln cars.
2.Glass industry.
3.Pipe insulation.
4.Heat resistant material.
Cermic fiber board Technical Index:
Features | KaoWool 1000 | KaoWool 1260 | KaoWool 1430 | Ceraboard 100 | Ceraboard 115 |
classification temp(℃) | 1000 | 1260 | 1430 | 1260 | 1400 |
density (kg/m3) | 250 | 300 | 250 | 300 | 250 | 300 | 310 | 310 |
compressive strength(Mpa) | ≥0.2 | ≥0.2 | ≥0.2 | 0.35(relatively distortion) | 0.3(relatively distortion) |
bending strength(Mpa) | ≥0.8 | ≥0.8 | ≥0.8 | 1.0 | 0.9 |

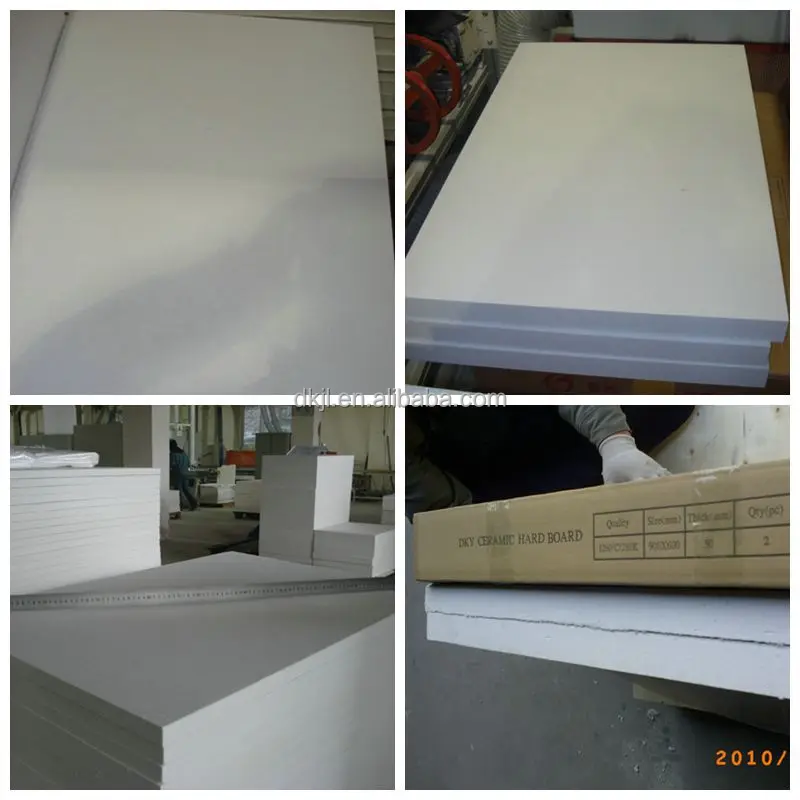

Pictures of ceramic fiber board

Packing of ceramic fiber board: inner plastic bag, outer carton and pallet.Shipping of ceramic fiber board: By vessel or by train from any Chinese port, Samples can be delivered by International express.

package pictures of ceramic fiber board

1.Timely response,
Timely response to your inquiry, multiple choice recommendations based on your demand,quickly respond mails and provide solutions.
2.Sample evaluation
Heat insulation board Sample and trial order are accepted for the quality evaluation
3.Strict quality control
Arrange production on time and control quality strictly.
4.Shorter delivery time.
Book the earliest vessel or plane to guarantee the delivery time.
5.Professional Services
Provide all the detailed news and pictures from order to delivery;
Offer relative export documents and original certificate if needed;
Warm and considerable after-sale service
DKJL refractories exporting company is one of the most professional suppliers of refractories in China. Our main products are refractory and thermal insulation materials,heating elements, industrial ceramics and scientific instruments. They are availbale in various sizes and shapes. Our products enjoy a good reputation for their excellent quality and service in domestic and international markets.

1. How can I get your prompt quotation for ceramic fiber board?
We can give you reply with quotation quickly if you kindly send the inquiry with following factors: working temperature, maximum working temperature, bulk density, dimension (length*width*thickness), and quantity.
2.What's the MOQ of order?
No limit, we can offer the best suggestions and solutions according to your requirement.
3. Which payment terms can you accept?
T/T,LC,Western Union, MoneyGram are all available for us.
4.After an order is placed, when to delivery?
7days after confirming the order.
5. Does your company accept customization?
We accept OEM service.
6. How to solve the quality problems?
If the products don’t conform to customer samples or have quality problems, our company will be responsible to make compensation for it based on enough evidences.
7. What is the HS code?
The HS code is 68061010
8. Is there any cost for the sample?
We provide free sample but don't bear the freight.
